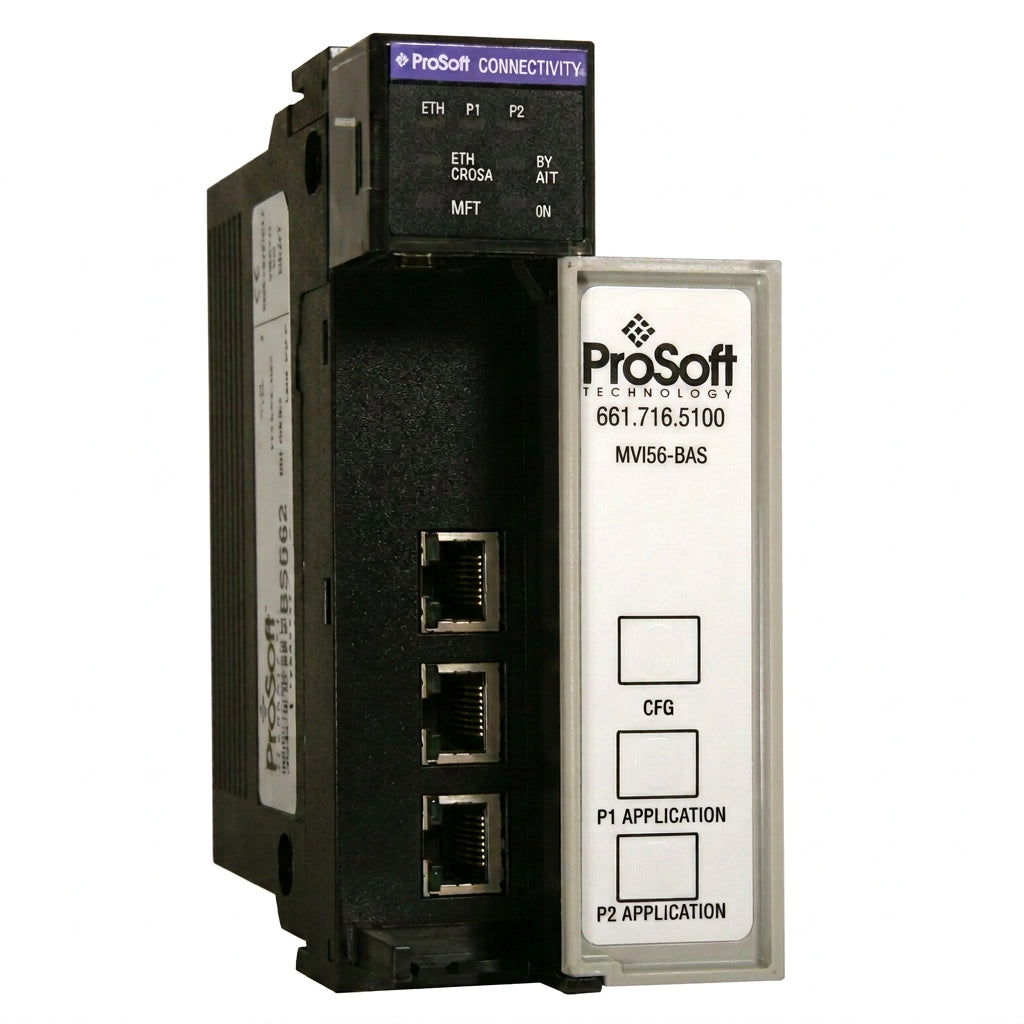

The ProSoft Technology MVI56-BAS is single-slot BASIC programmable communication module for Rockwell 1756 ControlLogix PAC. It enables legacy BASIC program migration from old 1771-DB / 1747-BAS to ControlLogix chassis, supporting custom BASIC scripting for serial ASCII devices, DF1 communication, barcode readers, scales and modems. The module executes user BASIC code locally to offload math and data parsing tasks from ControlLogix CPU. Technical data sourced directly from official ProSoft MVI56-BAS datasheet & user manual. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit undergoes visual inspection and functional testing before shipment for retrofit and spare replacement projects. Contact our team for compatibility verification.
Official Datasheet & User Manual Technical Parameters
| Technical Specifications | |
| Catalog Number | MVI56-BAS |
| Hardware Type | 1756 Single-Slot BASIC Programmable Communication Module |
| Backplane Current Draw | 800mA @ 5.1 VDC, 3mA @24VDC |
| Serial Interface | 2 x Isolated Serial Ports, RS232/RS485 configurable |
| Onboard Runtime | BASIC interpreter for custom user scripts |
| DF1 Mode | Full-duplex or Half-duplex Slave |
| Environmental Ratings | |
| Operating Temperature | 0°C ~ +60°C (32°F ~ +140°F) |
| Storage Temperature | -40°C ~ +85°C (-40°F ~ +185°F) |
| Relative Humidity | 5% ~ 95% RH, Non-Condensing |
| Shock / Vibration | 30g operational /50g non-operational; 5g vibration 10Hz~150Hz |
| Agency Certifications | |
| cULus | UL508, Class I Div 2 Groups A,B,C,D T6 |
| ATEX | II 3 G EEx nA IIC T6 |
| Compliance | CE, RoHS |
The MVI56-BAS is designed to migrate legacy BASIC programs originally written for 1771-DB and 1747-BAS modules into ControlLogix rack. It runs BASIC scripts locally to handle custom serial parsing and arithmetic processing, reducing ControlLogix controller load. It is not a BACnet BAS gateway. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for product identification only.
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: MVI56-BAS is ProSoft BASIC programmable communication module for Rockwell 1756 ControlLogix, used for legacy BASIC code migration and custom serial ASCII device interfacing.
A: Yes, it is built to migrate existing BASIC applications originally written for 1771-DB and 1747-BAS modules.
A: Two galvanically isolated serial ports, configurable for RS232 or RS485, supports DF1 full/half duplex slave.
A: RSLogix5000 / Studio5000 plus ProSoft Configuration Builder to download BASIC scripts and module configuration.
