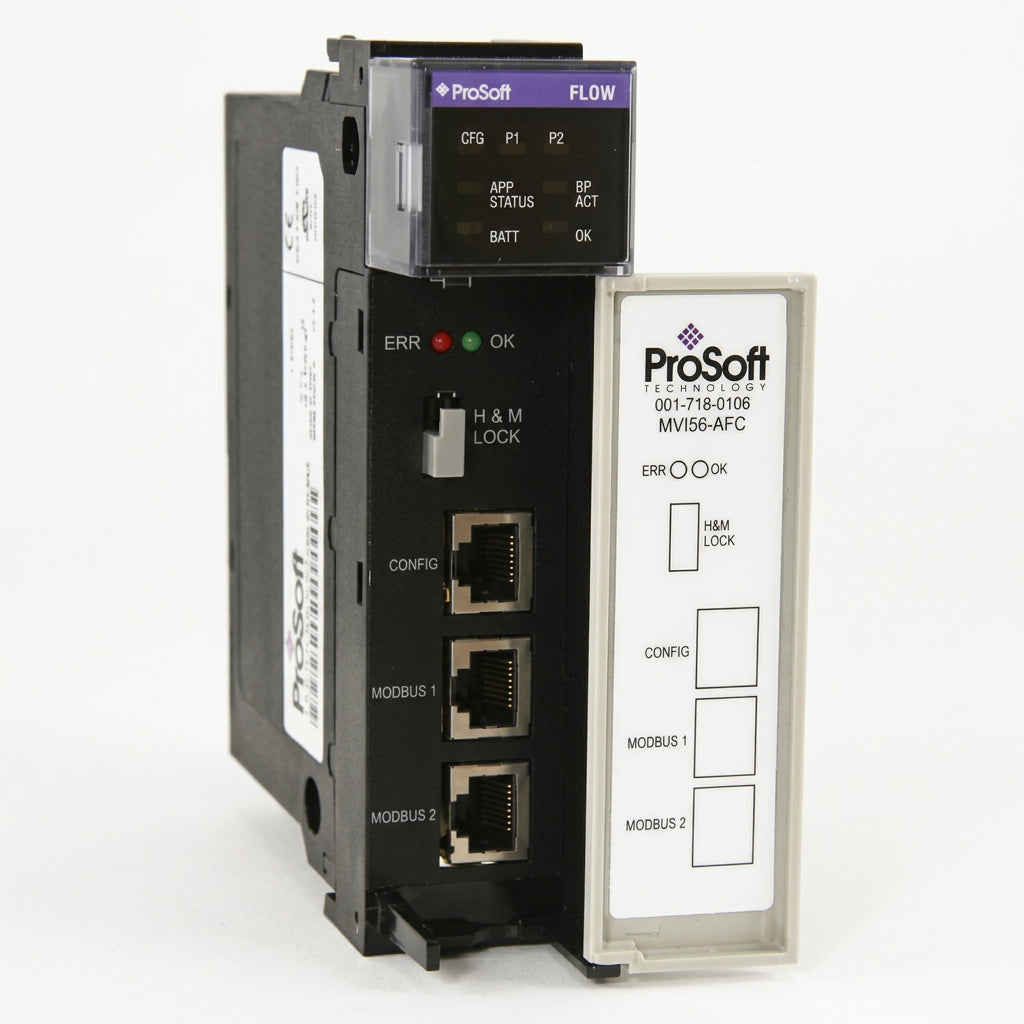

MVI56-AFC ProSoft Liquid & Gas Flow Computer Module for 1756 ControlLogix

The ProSoft Technology MVI56-AFC is single-slot in-chassis flow computer module for Rockwell 1756 ControlLogix PAC. It performs custody-transfer grade hydrocarbon liquid and gas flow calculations following AGA, API industry standards. It acts as a dedicated co-processor, handling flow computation, volume accumulation, event logging and historical archiving, offloading heavy math tasks from ControlLogix CPU. It features dual isolated serial Modbus ports for communication with remote instruments and SCADA systems. Technical data sourced directly from official ProSoft MVI56-AFC datasheet & user manual. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit undergoes visual inspection and functional testing before shipment for retrofit and spare replacement projects. Contact our team for compatibility verification.

Features

  • Order Code: MVI56-AFC
  • Product Family: MVI56 Series for 1756 ControlLogix
  • Primary Function: Liquid & Gas Flow Computer for oil & gas custody transfer measurement
  • Backplane: Single slot 1756 ControlLogix chassis mounting
  • Serial Ports: Two 500V optically isolated serial ports, RS232/RS422/RS485 jumper selectable, Modbus Master/Slave
  • Calculation Standards: AGA, API standards for gas and liquid hydrocarbon flow computation
  • Meter Capacity: Support multiple meter runs, flow accumulation, mass & volume totalization
  • Data Storage: Event logs, alarm records, hourly/daily historical archives, audit trail
  • Tools: AFC Manager software for meter configuration, monitoring and archive export
  • LED Display: 4-character scrolling LED for module status and diagnostic information
  • Configuration: Add-On Instruction (AOI) & sample ladder logic for Studio5000 / RSLogix5000
  • Certifications: cULus UL508, Class I Div 2 Groups A,B,C,D T6; ATEX II 3 G EEx nA IIC T6, CE RoHS compliant
  • Lifecycle: Discontinued OEM production, aftermarket spare part only
  • Typical Use: Oil & gas custody transfer, pipeline measurement, hydrocarbon flow calculation, retrofit spare replacement

Specifications

Official Datasheet & User Manual Technical Parameters

Technical Specifications
Catalog Number MVI56-AFC
Hardware Type 1756 Single-Slot Liquid & Gas Flow Computer Module
Backplane Current Draw 800mA @ 5.1 VDC, 3mA @24VDC
Serial Interface 2 x 500V optically isolated serial ports, RS232/RS422/RS485 configurable, Modbus Master/Slave
Flow Standards AGA, API industry standards for gas & liquid hydrocarbon flow
Software Tool AFC Manager for meter setup, monitoring and archive export
Environmental Ratings
Operating Temperature 0°C ~ +60°C (32°F ~ +140°F)
Storage Temperature -40°C ~ +85°C (-40°F ~ +185°F)
Relative Humidity 5% ~ 95% RH, Non-Condensing
Shock / Vibration 30g operational /50g non-operational; 5g vibration 10Hz~150Hz
Agency Certifications
cULus UL508, Class I Div 2 Groups A,B,C,D T6
ATEX II 3 G EEx nA IIC T6
Compliance CE, RoHS

Compatibility & Cross-References

The MVI56-AFC is a serial-only flow computer module, without onboard Ethernet port. Compare with upgraded MVI56E-AFC which adds Ethernet Modbus TCP, Enron Modbus and expanded archive support. MVI56-AFC receives process data from ControlLogix analog/pulse I/O modules and performs custody transfer flow calculations locally, returning totals and computed values back to the Logix controller. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for product identification only.

Applications

  • Oil & gas pipeline custody transfer measurement
  • Hydrocarbon liquid and gas flow totalization following AGA/API standards
  • SCADA integration via Modbus serial for meter archives, alarms and event audit logs
  • Retrofit replacement for legacy standalone flow computers in ControlLogix chassis

Warranty

  • Availability: MVI56-AFC discontinued OEM production, supply as aftermarket spare; contact us for real-time stock status.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery is about 5-8 business days, express shipping available, orders over $500 ship free.

Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: ProSoft Technology part MVI56-AFC is supplied by SHLY-PLC, an independent industrial automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: What is MVI56-AFC?

A: MVI56-AFC is ProSoft serial flow computer module for Rockwell ControlLogix, designed for oil & gas custody transfer flow calculations per AGA and API standards.

Q: Difference between MVI56-AFC and MVI56E-AFC?

A: MVI56-AFC is serial-only. MVI56E-AFC adds Ethernet Modbus TCP, Enron Modbus and enhanced archive functions.

Q: What communication ports are fitted?

A: Two optically isolated serial ports, configurable RS232/RS422/RS485, supporting Modbus Master or Slave mode.

Q: What software is required for configuration?

A: AFC Manager software for meter setup, plus RSLogix5000 / Studio5000 with supplied AOI and sample ladder logic.
