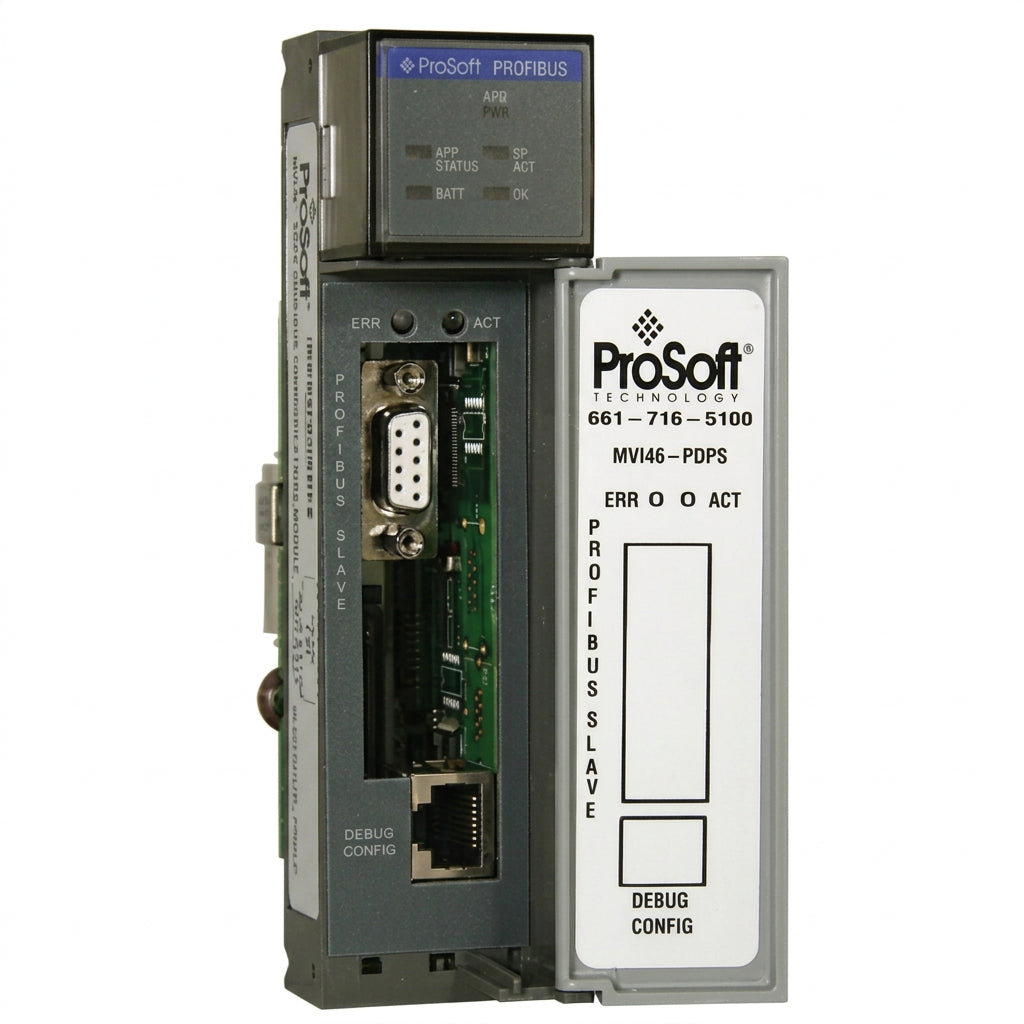

ProSoft Technology MVI46-PDPS Communication Module

SKU: MVI46-PDPS
(0)
$3,271.85
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

MVI46-PDPS ProSoft PROFIBUS DP Slave Communication Module for SLC 500

The ProSoft Technology MVI46-PDPS is single-slot PROFIBUS DP Slave module designed for Rockwell SLC 500 PLC chassis. It enables SLC processors to communicate as a PROFIBUS DP slave with PROFIBUS DP master controllers. It supports up to 244 bytes input data and 244 bytes output data, total maximum 400 bytes I/O mapping, seamlessly exchanging process data between SLC backplane and PROFIBUS fieldbus network. Technical data sourced directly from official ProSoft MVI46-PDPS datasheet & user manual. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit undergoes visual inspection and functional testing before shipment for retrofit and spare replacement projects. Contact our team for compatibility verification.

Features

  • Order Code: MVI46-PDPS
  • Product Family: MVI46 Series for SLC 500
  • Primary Function: PROFIBUS DP Slave communication interface module for SLC 500 PLC
  • Backplane: Single slot SLC 500 chassis mounting
  • PROFIBUS Port: DB9 female connector, auto baud rate detection, 9.6 kbps ~ 12 Mbps
  • I/O Data Size: Max 244 bytes Input, 244 bytes Output; total 400 bytes I/O mapping
  • Internal Database: 400 16-bit user registers for data mapping
  • Protocol: PROFIBUS DP V0 slave, supports Sync and Freeze modes
  • GSD File: downloadable GSD file for PROFIBUS master configuration
  • Tools: ProSoft Configuration Builder (PCB) software for module setup and diagnostics
  • LED Display: Status LEDs for module, backplane and PROFIBUS network diagnostics
  • Configuration: Sample ladder logic for SLC 500 programming
  • Certifications: cULus UL508, Class I Div 2 Groups A,B,C,D T6; ATEX II 3 G EEx nA IIC T6, CE RoHS compliant
  • Lifecycle: Discontinued OEM production, aftermarket spare part only
  • Typical Use: SLC500 integration into PROFIBUS DP networks, factory automation retrofit, spare replacement

Specifications

Official Datasheet & User Manual Technical Parameters

Technical Specifications
Catalog Number MVI46-PDPS
Hardware Type SLC500 Single-Slot PROFIBUS DP Slave Module
Backplane Current Draw 800mA @ 5 VDC
PROFIBUS Interface DB9 female connector, 9.6 kbps to 12 Mbps auto baud detection
Max I/O Data 244 bytes Input / 244 bytes Output, total max 400 bytes
Software Tool ProSoft Configuration Builder (PCB)
Environmental Ratings
Operating Temperature 0°C ~ +60°C (32°F ~ +140°F)
Storage Temperature -40°C ~ +85°C (-40°F ~ +185°F)
Relative Humidity 5% ~ 95% RH, Non-Condensing
Shock / Vibration 30g operational /50g non-operational; 5g vibration 10Hz~150Hz
Agency Certifications
cULus UL508, Class I Div 2 Groups A,B,C,D T6
ATEX II 3 G EEx nA IIC T6
Compliance CE, RoHS

Compatibility & Cross-References

The MVI46-PDPS is PROFIBUS DP slave for SLC 500 platform. Compare with MVI56-PDPS (ControlLogix) and MVI69-PDPS (CompactLogix). It acts as a slave device on PROFIBUS DP network, exchanging cyclic I/O data with DP master. GSD file is required for master station configuration. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for product identification only.

Applications

  • Integrate Rockwell SLC500 PLC into PROFIBUS DP fieldbus networks
  • Cyclic I/O data exchange between SLC500 and PROFIBUS DP master controllers
  • Legacy SLC500 automation system retrofit & upgrade
  • Factory process automation, material handling, packaging machinery spare replacement

Warranty

  • Availability: MVI46-PDPS discontinued OEM production, supply as aftermarket spare; contact us for real-time stock status.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery is about 5-8 business days, express shipping available, orders over $500 ship free.

Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: ProSoft Technology part MVI46-PDPS is supplied by SHLY-PLC, an independent industrial automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: What is MVI46-PDPS?

A: MVI46-PDPS is ProSoft PROFIBUS DP slave communication module for Rockwell SLC500 PLC, allowing SLC to join PROFIBUS DP network as a slave node.

Q: What is the difference between MVI46-PDPS, MVI56-PDPS and MVI69-PDPS?

A: MVI46-PDPS for SLC500; MVI56-PDPS for ControlLogix; MVI69-PDPS for CompactLogix.

Q: What software configures this module?

A: ProSoft Configuration Builder (PCB) for module setup, diagnostics and GSD management, plus sample ladder logic for SLC 500.

Q: What PROFIBUS baud rates does it support?

A: Auto baud detection, support 9.6 kbps up to 12 Mbps PROFIBUS DP communication speed.
