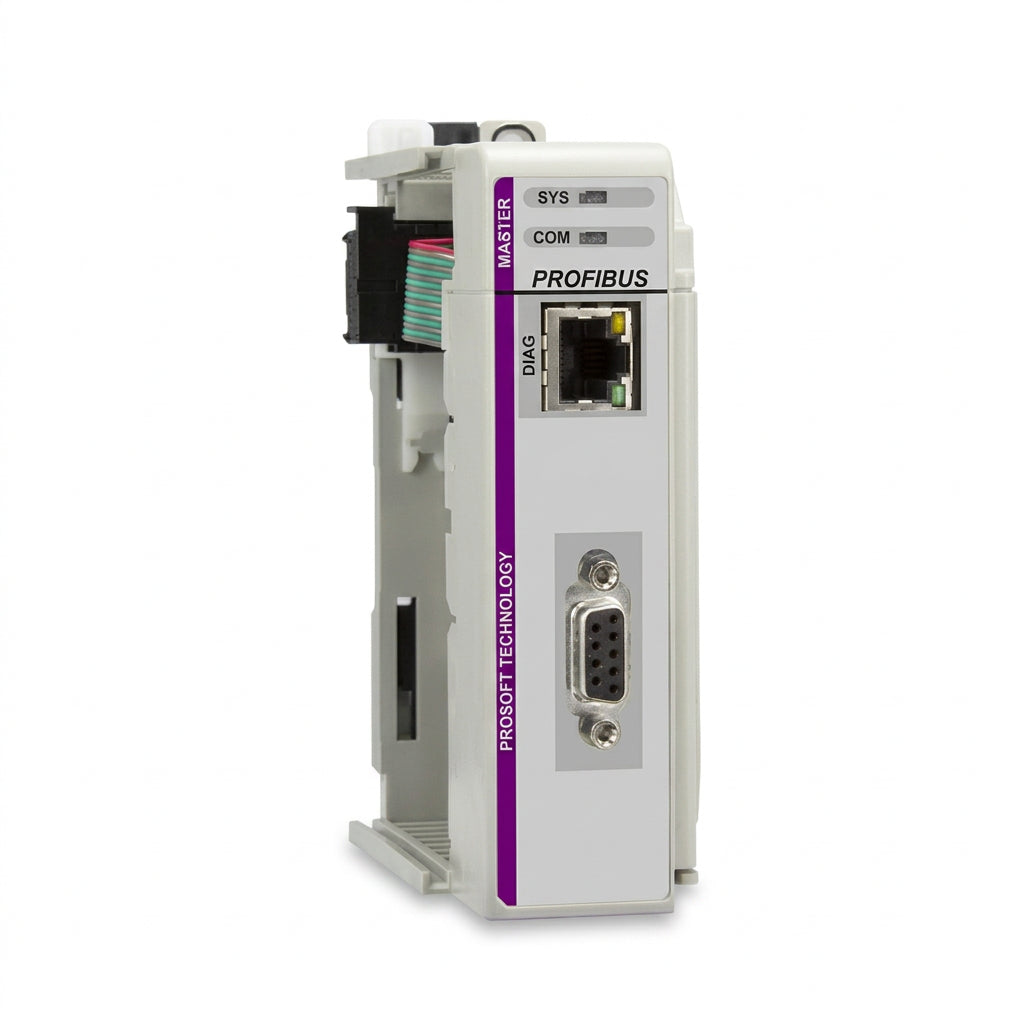

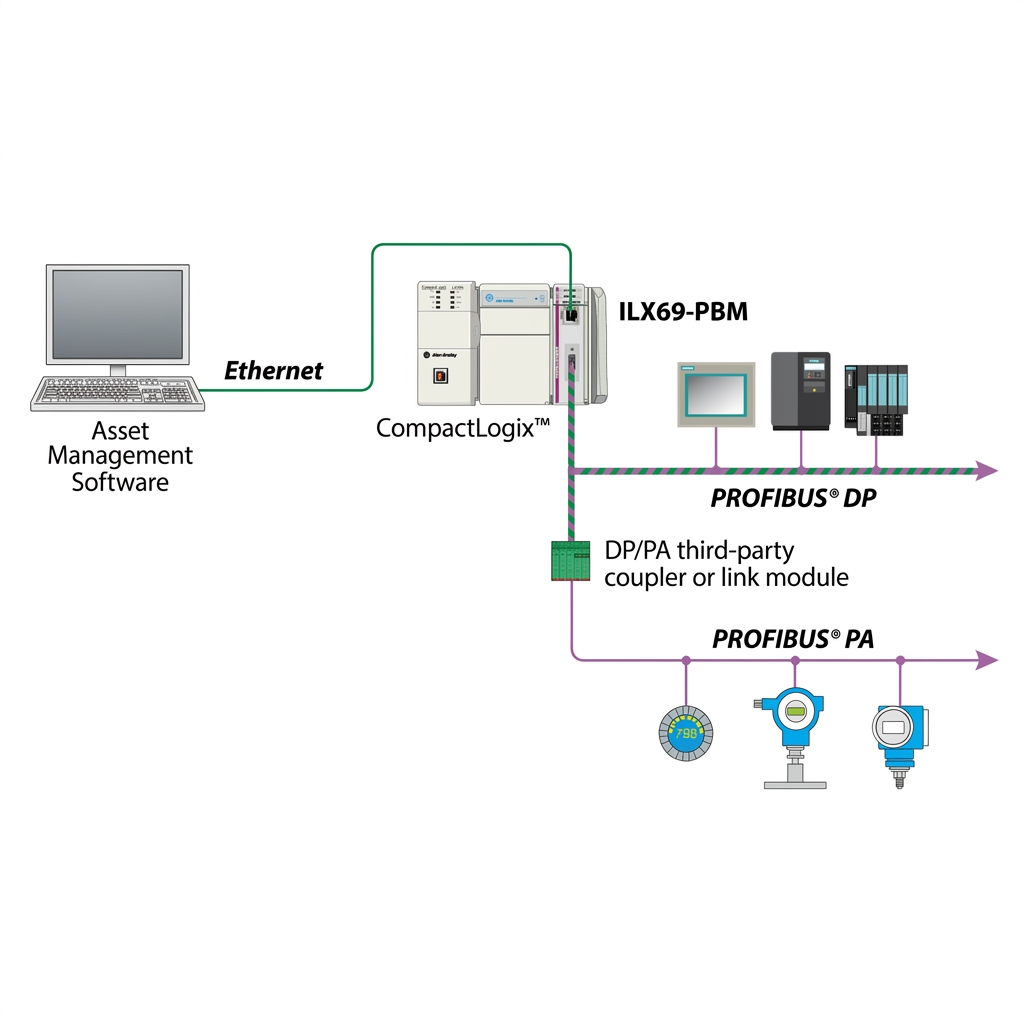

The ProSoft Technology ILX69-PBM is a single-slot PROFIBUS DPV1 master communication module built for Rockwell CompactLogix (1769) PLC chassis. It enables CompactLogix controllers to communicate with PROFIBUS DP slave devices over RS485 bus, supporting cyclic I/O data exchange plus acyclic DPV1 messaging for parameter access and diagnostics. It features an integrated 10/100Mbps Ethernet diagnostic port and onboard flash memory for configuration storage. Technical data sourced directly from official ProSoft ILX69-PBM datasheet & user manual. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit undergoes visual inspection and functional testing before shipment for retrofit and spare replacement projects. Contact our team for compatibility verification.
Official Datasheet & User Manual Technical Parameters
| Technical Specifications | |
| Catalog Number | ILX69-PBM |
| Hardware Type | 1769 Single-Slot PROFIBUS DPV1 Master Module |
| Backplane Current Draw | 570mA @ 5 VDC |
| PROFIBUS Interface | Isolated RS485, 9.6k ~12Mbps auto baud, 9-pin D-sub female |
| Diagnostic Port | 10/100Mbps RJ45 Ethernet |
| Max PROFIBUS Slaves | 125 nodes |
| Data Capacity | 5712 Bytes In / 5760 Bytes Out |
| Software Tool | ProSoft FDT Configuration Manager, RSLogix5000 / Studio5000 AOP |
| Environmental Ratings | |
| Operating Temperature | 0°C ~ +60°C (32°F ~ +140°F) |
| Storage Temperature | -40°C ~ +85°C (-40°F ~ +185°F) |
| Relative Humidity | 5% ~ 95% RH, Non-Condensing |
| Dimensions / Weight | 131.6 × 92.1 × 39.3 mm, 152g |
| Agency Certifications | |
| cULus | UL508 |
| Compliance | CE, RoHS |
The ILX69-PBM is PROFIBUS DPV1 master module for CompactLogix 1769. Corresponding model: ILX69-PBS (PROFIBUS Slave version). It integrates seamlessly into CompactLogix backplane and appears as standard I/O module in RSLogix5000/Studio5000. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for product identification only.
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: ILX69-PBM is ProSoft PROFIBUS DPV1 master communication module for Rockwell CompactLogix 1769, used to connect CompactLogix controllers to PROFIBUS DP fieldbus network.
A: ILX69-PBM is PROFIBUS Master; ILX69-PBS is PROFIBUS Slave module for CompactLogix.
A: Up to 125 PROFIBUS DP slave nodes, maximum 5712 bytes input /5760 bytes output process data.
A: Use ProSoft FDT Configuration Manager over Ethernet; AOP add-on profile for RSLogix5000 / Studio5000 for CompactLogix backplane setup.
ILX69-PBM · Technical reference data · Independently supplied by SHLY-PLC
