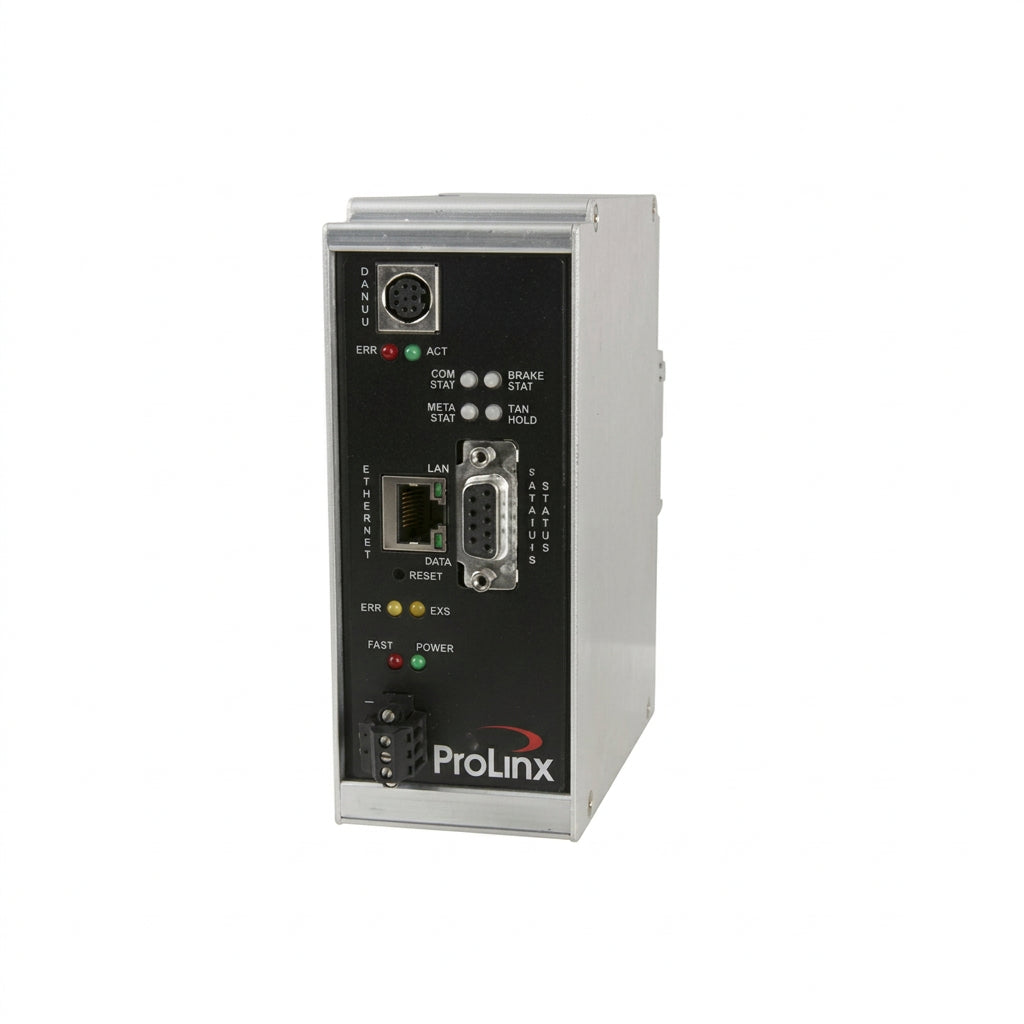

5204-MNET-PDPMV1 Prosoft
5204-MNET-PDPMV1 Prosoft

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ProSoft Technology

ProSoft Technology 5204-MNET-PDPMV1 Gateway

SKU: 5204-MNET-PDPMV1
(0)
$3,472.00
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

5204-MNET-PDPMV1 ProSoft ProLinx Modbus TCP to PROFIBUS DP-V1 Master Gateway

The ProSoft Technology 5204-MNET-PDPMV1 is standalone DIN-rail mounted ProLinx 5200 series protocol gateway. It bridges Modbus TCP/IP network to PROFIBUS DP-V1 Master, supporting cyclic I/O data exchange and DPV1 acyclic mailbox services for parameter access and advanced device diagnostics. It works as Modbus TCP Client/Server and PROFIBUS DP-V1 Master, compatible with Modicon Quantum and other Modbus TCP controllers. Technical data sourced directly from official ProSoft 5204-MNET-PDPMV1 datasheet & user manual. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit undergoes visual inspection and functional testing before shipment for retrofit and spare replacement projects. Contact our team for compatibility verification.

Features

  • Order Code: 5204-MNET-PDPMV1
  • Product Family: ProLinx 5200 Series DIN Rail Gateway
  • Primary Function: Modbus TCP/IP to PROFIBUS DP-V1 Master Gateway
  • Mounting: Standard 35mm DIN rail mounting
  • Ethernet Port: Modbus TCP/IP, Client & Server mode, web/ftp built-in interface
  • PROFIBUS Port: DP-V1 Master (IEC 61158), isolated RS485, 9-pin D-Sub female, max 12 Mbps, mono/multi-master support
  • Data Capacity: Up to 768 words Input / 768 words Output cyclic PROFIBUS data
  • DPV1 Services: Class1 cyclic I/O, Class2 acyclic mailbox messaging for slave parameter & extended diagnostics
  • Configuration: ProSoft Configuration Builder (PCB), GSD import, online bus diagnostics, FDT/DTM support for PACTware / FieldCare
  • Diagnostics LED: Power, module status, Ethernet activity, PROFIBUS bus and fault indicators
  • Power Supply: 24 VDC nominal (18 ~ 30 VDC range)
  • Certifications: cULus UL508, CE, RoHS compliant
  • Lifecycle: Discontinued OEM production, legacy spare part only
  • Typical Use: Connect Modbus TCP PLC to PROFIBUS DP-V1 field instruments, flow meters, drives, valve positioners; factory modernization, brownfield retrofit

Specifications

Official Datasheet & User Manual Technical Parameters

Technical Specifications
Catalog Number 5204-MNET-PDPMV1
Hardware Type DIN Rail Protocol Gateway, ProLinx 5200 Series
Supply Voltage 18 ~ 30 VDC, nominal 24VDC
Ethernet Interface Modbus TCP/IP Client / Server, 10/100Mbps Ethernet port
PROFIBUS Interface DP-V1 Master, Isolated RS485, 9-pin D-sub female, up to 12 Mbps, mono/multi-master
Cyclic I/O Size 768 words Input / 768 words Output
Configuration Tool ProSoft Configuration Builder (PCB), FDT/DTM for asset management software
Mounting 35mm DIN Rail
Environmental Ratings
Operating Temperature 0°C ~ +60°C (32°F ~ +140°F)
Storage Temperature -40°C ~ +85°C (-40°F ~ +185°F)
Relative Humidity 5% ~ 95% RH, Non-Condensing
Agency Certifications
cULus UL508
Compliance CE, RoHS

Compatibility & Cross-References

The 5204-MNET-PDPMV1 is ProLinx 5200 standalone gateway, converting Modbus TCP/IP to PROFIBUS DP-V1 Master. It supports DPV1 acyclic messaging for smart field devices. Similar family: 5204-DFNT-PDPMV1 (EtherNet/IP to PROFIBUS DP-V1 Master). This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for product identification only.

Applications

  • Connect Modbus TCP controllers (Modicon Quantum etc.) to PROFIBUS DP-V1 smart field instruments
  • Cyclic I/O data exchange plus DPV1 acyclic parameter access, device diagnosis & asset management
  • Brownfield automation upgrade, integrate PROFIBUS PA via DP/PA coupler (coupler not included)
  • Legacy system spare replacement for Modbus TCP to PROFIBUS DP-V1 network integration

Warranty

  • Availability: 5204-MNET-PDPMV1 discontinued OEM production, supply as aftermarket spare; contact us for real-time stock status.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery is about 5-8 business days, express shipping available, orders over $500 ship free.

Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: ProSoft Technology part 5204-MNET-PDPMV1 is supplied by SHLY-PLC, an independent industrial automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: What is 5204-MNET-PDPMV1?

A: 5204-MNET-PDPMV1 is ProSoft ProLinx 5200 DIN rail gateway, Modbus TCP/IP to PROFIBUS DP-V1 Master, supports cyclic I/O and DPV1 acyclic messaging for smart PROFIBUS slaves.

Q: What is difference between 5204-MNET-PDPMV1 and 5204-DFNT-PDPMV1?

A: 5204-MNET-PDPMV1: Modbus TCP/IP to DP-V1 Master; 5204-DFNT-PDPMV1: EtherNet/IP to DP-V1 Master.

Q: What DPV1 functions are supported?

A: Class1 cyclic I/O exchange, Class2 acyclic mailbox communication for reading/writing slave parameters and extended diagnostics; works with PACTware / FieldCare via FDT/DTM.

Q: Can it connect PROFIBUS PA devices?

A: Yes, via third-party DP/PA link coupler (sold separately), to access PROFIBUS PA field instruments.
