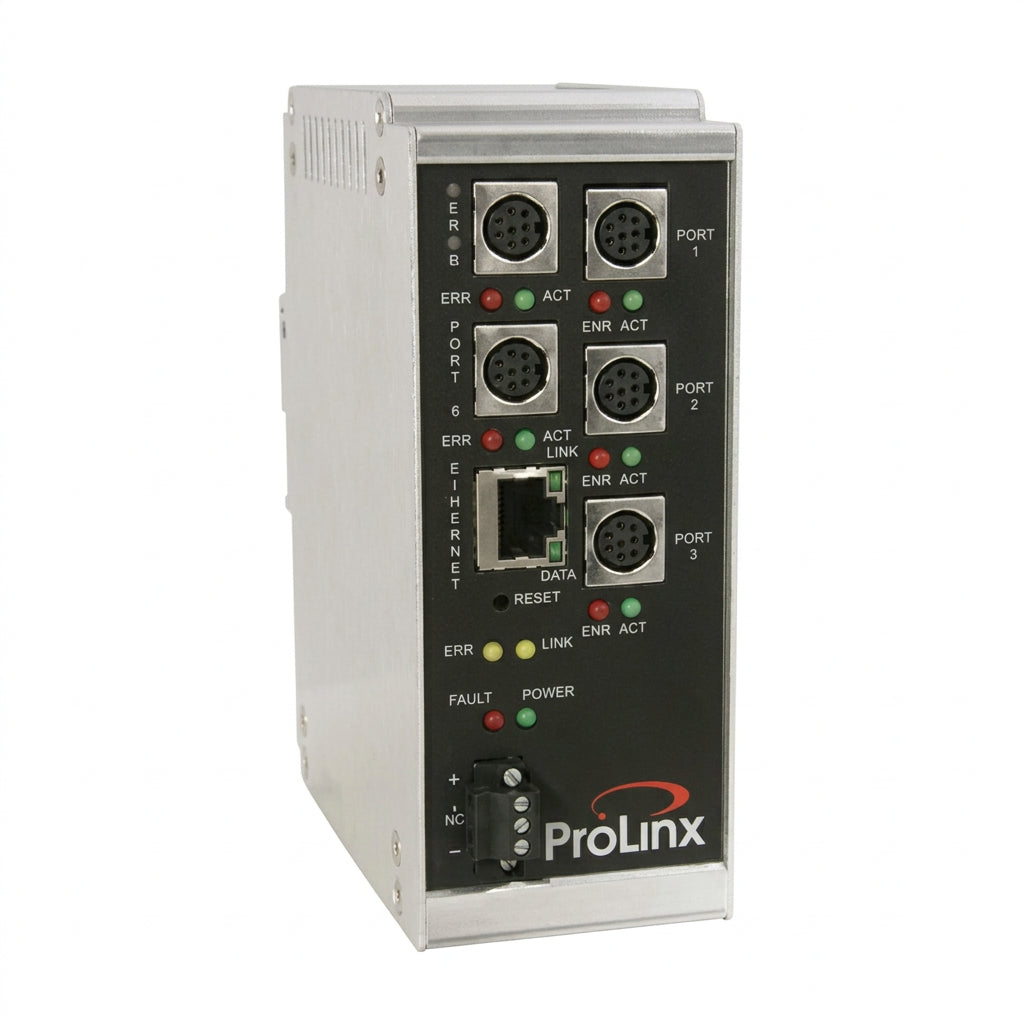

The ProSoft Technology 5202-104S-DFCM4 is a stand-alone DIN rail protocol gateway in the ProLinx 5200 series. It implements IEC 60870-5-104 Server over Ethernet and four isolated DF1 serial channels, each configurable as DF1 Master or Slave for Allen‑Bradley DF1 PLC devices. Supports spontaneous and cyclic telecontrol messages, SNTP time sync for substation SCADA. Configuration via ProSoft Configuration Builder (PCB). Technical data sourced from official ProSoft datasheet. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit undergoes visual inspection and functional testing before shipment for power utility retrofit and spare replacement projects. Contact our team for compatibility verification.
Official Datasheet Technical Parameters
| Technical Specifications | |
| Catalog Number | 5202-104S-DFCM4 |
| Hardware Type | Standalone DIN Rail Protocol Gateway |
| Power Supply | 18 ~ 36 VDC, Nominal 24VDC |
| Max Current Draw | 500mA @ 24VDC |
| Dimensions (H × W × D) | 132 × 52.5 × 114.8 mm (5.20 × 2.07 × 4.52 in) |
| Communication Ports | 1×10/100 RJ45 Ethernet; 4×Configurable Serial DF1 Channels |
| Serial Interface Type | RS232 / RS422 / RS485 selectable per channel |
| Protocols Implemented | IEC 60870-5-104 Server, DF1 Master / DF1 Slave |
| Environmental Ratings | |
| Operating Temperature | -20°C ~ +50°C (-4°F ~ +122°F) |
| Storage Temperature | -40°C ~ +85°C (-40°F ~ +185°F) |
| Relative Humidity | 5% ~ 95% RH, Non-Condensing |
The 5202-104S-DFCM4 belongs to ProSoft ProLinx 5200 series gateway family. Compatible with IEC 60870-5-104 SCADA client systems and legacy Allen‑Bradley DF1 serial PLC devices. Each DF1 serial channel independently supports Master or Slave mode for multi-drop serial networks. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for product identification only.
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: 5202-104S-DFCM4 is ProSoft ProLinx DIN rail protocol gateway implementing IEC 60870-5-104 Server to four-port DF1 Master/Slave serial conversion for power utility telecontrol and substation SCADA.
A: ProSoft Configuration Builder (PCB) software for offline configuration download, define DF1 port roles and IEC104 ASDU data objects.
A: 18~36 VDC input, nominal 24VDC, max current draw 500mA @24VDC.
