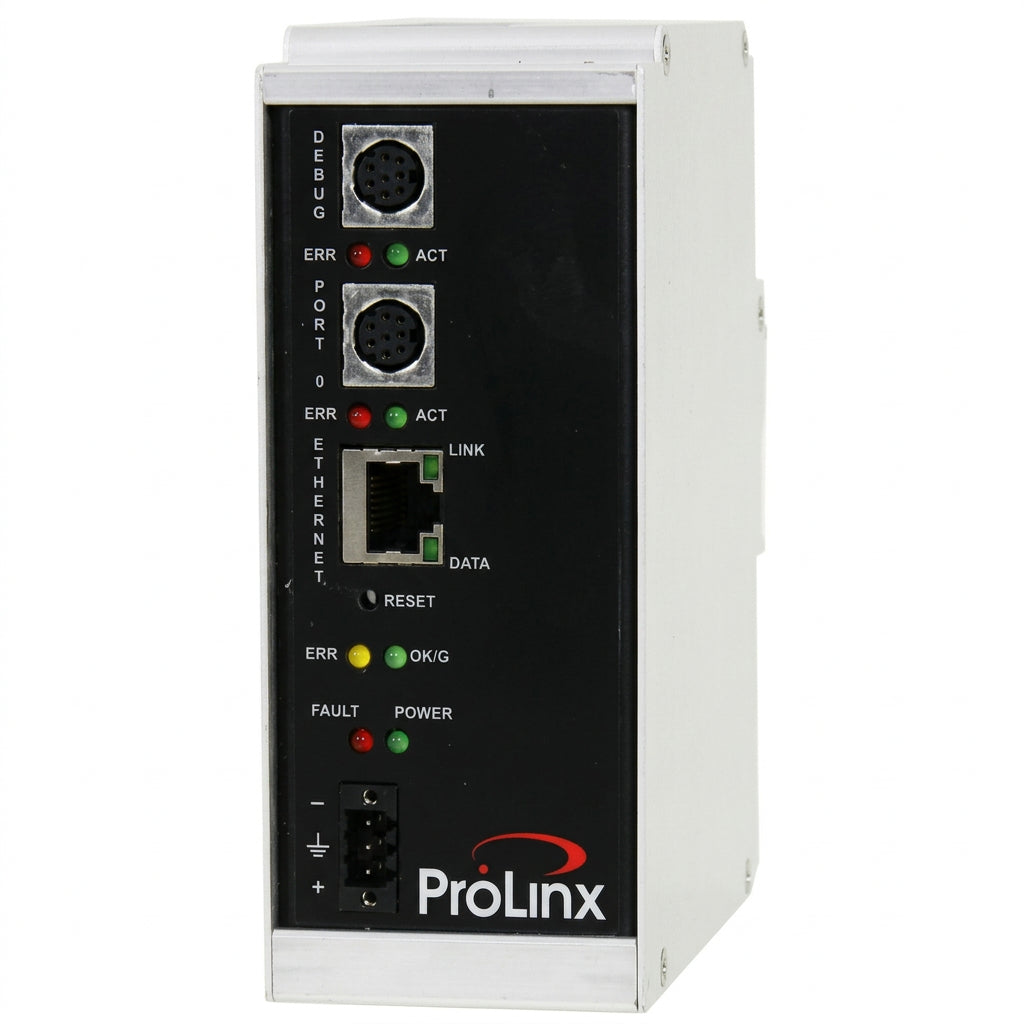

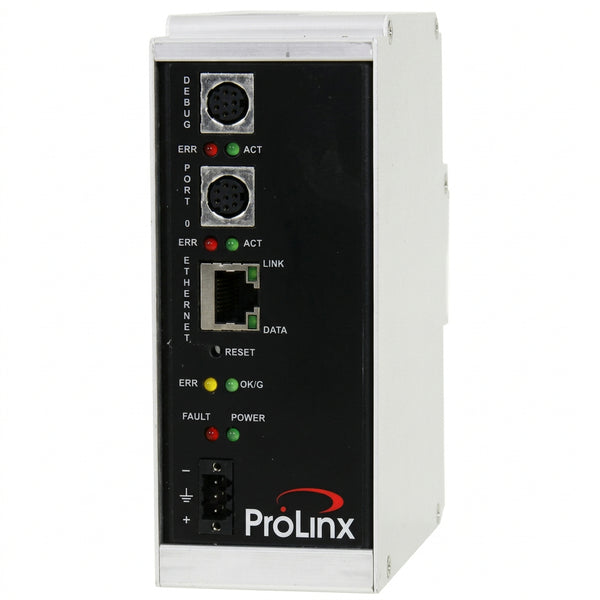

The ProSoft Technology 5201-MNET-MCM is standalone DIN-rail mounted ProLinx 5200 series protocol gateway. It enables bidirectional data exchange between Modbus TCP/IP network and serial Modbus (Modbus RTU / ASCII) Master & Slave devices. It acts simultaneously as Modbus TCP Client/Server and Modbus RTU/ASCII Master/Slave, supporting multi-drop serial field networks. Technical data sourced directly from official ProSoft 5201-MNET-MCM datasheet & user manual. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit undergoes visual inspection and functional testing before shipment for retrofit and spare replacement projects. Contact our team for compatibility verification.
Official Datasheet & User Manual Technical Parameters
| Technical Specifications | |
| Catalog Number | 5201-MNET-MCM |
| Hardware Type | DIN Rail Protocol Gateway, ProLinx 5200 Series |
| Supply Voltage | 18 ~ 30 VDC, nominal 24VDC |
| Ethernet Interface | Modbus TCP/IP Client / Server, 10/100Mbps |
| Serial Interface | Isolated RS422/RS485, Modbus RTU / ASCII, Master or Slave selectable |
| Serial Bus Capacity | Up to 32 serial Modbus slave nodes when running as serial master |
| Configuration Tool | ProSoft Configuration Builder (PCB), Web-based configuration |
| Mounting | 35mm DIN Rail |
| Environmental Ratings | |
| Operating Temperature | 0°C ~ +60°C (32°F ~ +140°F) |
| Storage Temperature | -40°C ~ +85°C (-40°F ~ +185°F) |
| Relative Humidity | 5% ~ 95% RH, Non-Condensing |
| Agency Certifications | |
| cULus | UL508 |
| Compliance | CE, RoHS |
The 5201-MNET-MCM is ProLinx 5200 standalone gateway bridging Modbus TCP/IP and serial Modbus RTU/ASCII. It can operate serial port as either Master or Slave. Similar family:5201-MNET-MCP (Modbus TCP to Modbus Plus). This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for product identification only.
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: 5201-MNET-MCM is ProSoft ProLinx 5200 DIN rail gateway, converts Modbus TCP/IP to serial Modbus RTU/ASCII, serial port selectable as Master or Slave.
A: When configured as serial Modbus master, it supports up to 32 Modbus RTU/ASCII slave devices on RS485 multi-drop bus.
A: ProSoft Configuration Builder (PCB), also supports web browser configuration and online bus diagnostics.
A: Isolated RS422 / RS485 interface, works for Modbus RTU and Modbus ASCII protocols.
