5201-MNET-DFNT Prosoft
5201-MNET-DFNT Prosoft

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ProSoft Technology

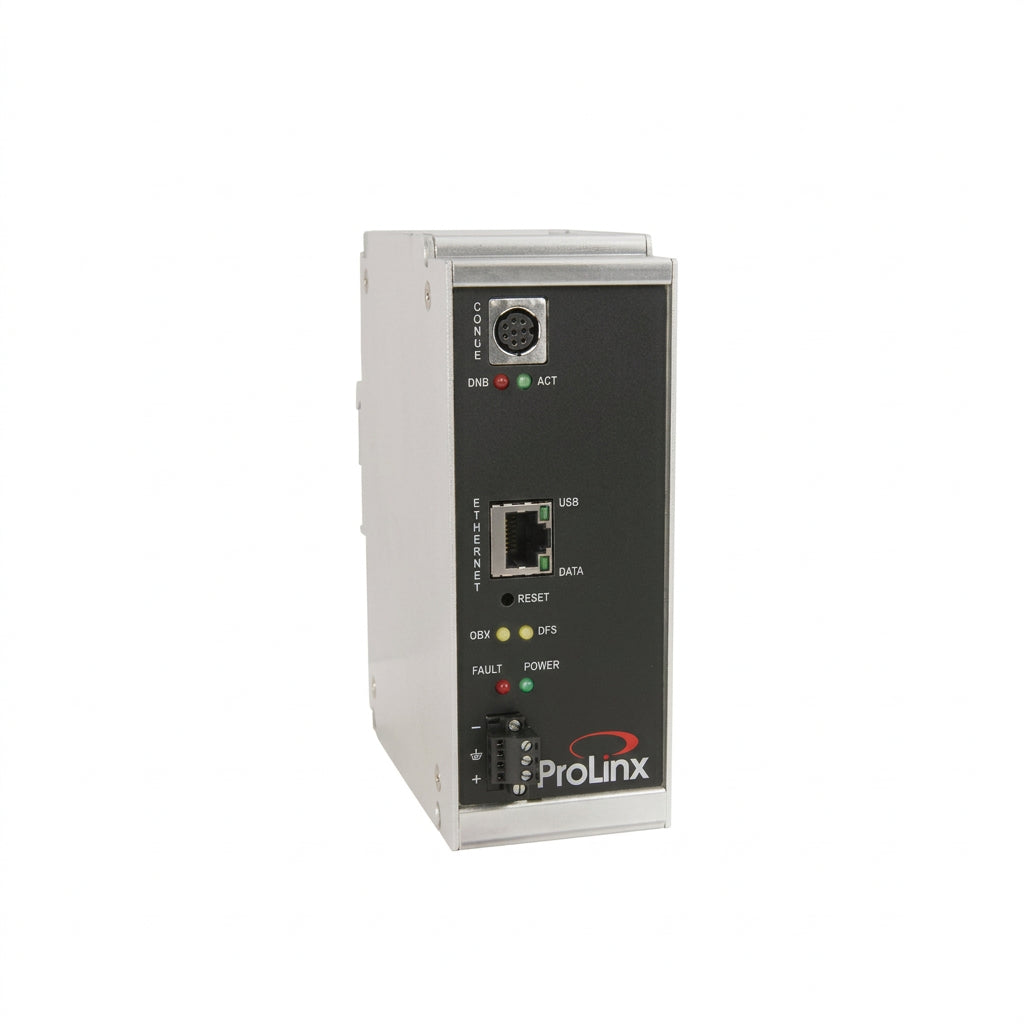

ProSoft Technology 5201-MNET-DFNT Gateway

SKU: 5201-MNET-DFNT
(0)
$3,366.88
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

5201-MNET-DFNT ProSoft ProLinx Modbus TCP to EtherNet/IP Gateway

The ProSoft Technology 5201-MNET-DFNT is standalone DIN-rail mounted ProLinx 5200 series protocol gateway. It enables bidirectional data exchange between Modbus TCP/IP network and EtherNet/IP network. It acts simultaneously as Modbus TCP Client/Server and EtherNet/IP Adapter/Scanner, supporting industrial ethernet interconnection for mixed PLC systems. Technical data sourced directly from official ProSoft 5201-MNET-DFNT datasheet & user manual. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit undergoes visual inspection and functional testing before shipment for retrofit and spare replacement projects. Contact our team for compatibility verification.

Features

  • Order Code: 5201-MNET-DFNT
  • Product Family: ProLinx 5200 Series DIN Rail Gateway
  • Primary Function: Modbus TCP/IP to EtherNet/IP Bi-directional Gateway
  • Mounting: Standard 35mm DIN rail mounting
  • Ethernet Ports: Dual 10/100Mbps Ethernet, isolated; one for Modbus TCP, one for EtherNet/IP
  • Modbus TCP: Client & Server mode, register mapping support
  • EtherNet/IP: Scanner (Master) / Adapter (Slave) operation, implicit I/O messaging
  • Data Capacity: Support implicit cyclic I/O and explicit message transfer
  • Configuration: ProSoft Configuration Builder (PCB), web browser setup, online diagnostics
  • Diagnostics LED: Power, module status, port activity, network communication and fault indicators
  • Power Supply: 24 VDC nominal (18 ~ 30 VDC range)
  • Certifications: cULus UL508, CE, RoHS compliant
  • Lifecycle: Discontinued OEM production, legacy spare part only
  • Typical Use: Connect Modbus TCP controllers to Rockwell EtherNet/IP PLC; cross-brand PLC network integration, factory brownfield upgrade

Specifications

Official Datasheet & User Manual Technical Parameters

Technical Specifications
Catalog Number 5201-MNET-DFNT
Hardware Type DIN Rail Protocol Gateway, ProLinx 5200 Series
Supply Voltage 18 ~ 30 VDC, nominal 24VDC
Ethernet Interfaces Dual isolated 10/100Mbps Ethernet ports
Modbus TCP Role Client / Server
EtherNet/IP Role Scanner (Master) / Adapter (Slave)
Configuration Tool ProSoft Configuration Builder (PCB), Web-based configuration
Mounting 35mm DIN Rail
Environmental Ratings
Operating Temperature 0°C ~ +60°C (32°F ~ +140°F)
Storage Temperature -40°C ~ +85°C (-40°F ~ +185°F)
Relative Humidity 5% ~ 95% RH, Non-Condensing
Agency Certifications
cULus UL508
Compliance CE, RoHS

Compatibility & Cross-References

The 5201-MNET-DFNT is ProLinx 5200 dual-port ethernet gateway for Modbus TCP/IP and EtherNet/IP interconnection. It supports implicit cyclic I/O and explicit messaging. Similar family:5201-DFNT-MNET (EtherNet/IP to Modbus TCP variant). This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for product identification only.

Applications

  • Bridge Modbus TCP PLC, instruments to Rockwell EtherNet/IP control systems
  • Bi-directional cyclic I/O data exchange between Modbus TCP and EtherNet/IP networks
  • Cross-brand automation network integration, plant retrofit & migration projects
  • Replacement spare for existing ProLinx 5201-MNET-DFNT gateway installations

Warranty

  • Availability: 5201-MNET-DFNT discontinued OEM production, supply as aftermarket spare; contact us for real-time stock status.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery is about 5-8 business days, express shipping available, orders over $500 ship free.

Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: ProSoft Technology part 5201-MNET-DFNT is supplied by SHLY-PLC, an independent industrial automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: What is 5201-MNET-DFNT?

A: 5201-MNET-DFNT is ProSoft ProLinx 5200 DIN rail dual ethernet gateway, bidirectional conversion between Modbus TCP/IP and EtherNet/IP.

Q: Can it work with Allen‑Bradley PLC?

A: Yes, it communicates with Allen‑Bradley EtherNet/IP controllers as EtherNet/IP scanner or adapter.

Q: What software configures this gateway?

A: ProSoft Configuration Builder (PCB), web browser access for setup and online diagnostics.

Q: Are the two ethernet ports isolated?

A: Yes, dual isolated 10/100Mbps ports to separate Modbus TCP and EtherNet/IP networks.
