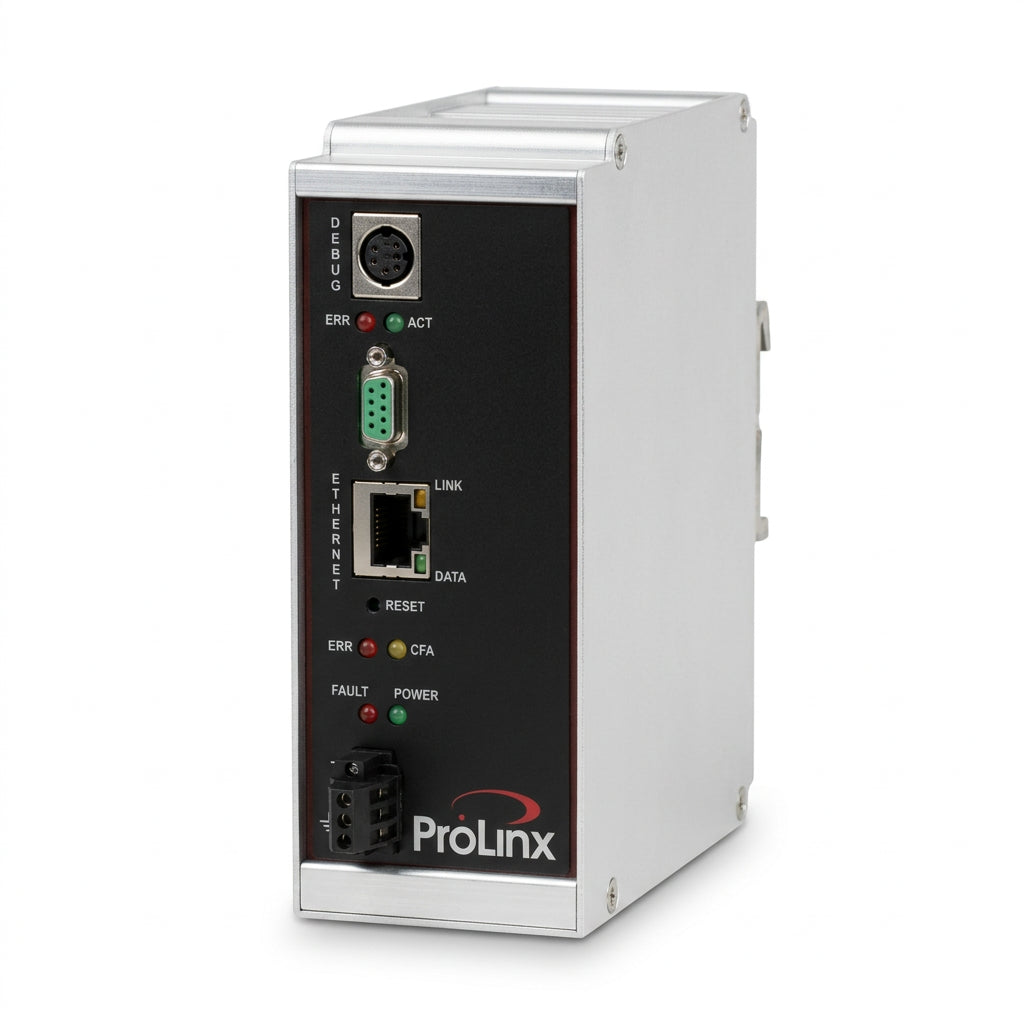

ProSoft Technology 5201-DFNT-DNPSNET Gateway

SKU: 5201-DFNT-DNPSNET
(0)
$6,190.00
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

5201-DFNT-DNPSNET ProSoft ProLinx EtherNet/IP to DNP3 Ethernet Gateway

The ProSoft Technology 5201-DFNT-DNPSNET is standalone DIN-rail mounted ProLinx 5200 series protocol gateway. It provides bidirectional data exchange between EtherNet/IP and DNP3 over Ethernet (DNPSNET). It functions as EtherNet/IP Scanner/Adapter and DNP3 TCP Server/Master for power, utility and industrial SCADA systems. Technical data sourced directly from official ProSoft 5201-DFNT-DNPSNET datasheet & user manual. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit undergoes visual inspection and functional testing before shipment for retrofit and spare replacement projects. Contact our team for compatibility verification.

Features

  • Order Code: 5201-DFNT-DNPSNET
  • Product Family: ProLinx 5200 Series DIN Rail Gateway
  • Primary Function: EtherNet/IP to DNP3 TCP (DNPSNET) Bi-directional Gateway
  • Mounting: Standard 35mm DIN rail mounting
  • Ethernet Ports: Dual isolated 10/100Mbps Ethernet ports, network segmentation
  • EtherNet/IP: Scanner (Master) / Adapter (Slave), implicit cyclic I/O messaging
  • DNP3 TCP: DNP3 Server and DNP3 Master over IP, support DNP3 object data mapping
  • Data Mapping: Map EtherNet/IP tags to DNP3 points (analog, binary, counter)
  • Configuration: ProSoft Configuration Builder (PCB), web browser setup, online diagnostics
  • Diagnostics LED: Power, module status, port activity, network communication and fault indicators
  • Power Supply: 24 VDC nominal (18 ~ 30 VDC range)
  • Certifications: cULus UL508, CE, RoHS compliant
  • Lifecycle: Discontinued OEM production, legacy spare part only
  • Typical Use: Power substation SCADA integration, connect Allen‑Bradley EtherNet/IP controllers to DNP3 TCP utility networks, brownfield upgrade

Specifications

Official Datasheet & User Manual Technical Parameters

Technical Specifications
Catalog Number 5201-DFNT-DNPSNET
Hardware Type DIN Rail Protocol Gateway, ProLinx 5200 Series
Supply Voltage 18 ~ 30 VDC, nominal 24VDC
Ethernet Interfaces Dual isolated 10/100Mbps Ethernet ports
EtherNet/IP Role Scanner (Master) / Adapter (Slave)
DNP3 Protocol DNP3 over TCP/IP (DNPSNET), Master & Server support
Data Point Types Binary Input/Output, Analog Input/Output, Counters
Configuration Tool ProSoft Configuration Builder (PCB), Web-based configuration
Mounting 35mm DIN Rail
Environmental Ratings
Operating Temperature 0°C ~ +60°C (32°F ~ +140°F)
Storage Temperature -40°C ~ +85°C (-40°F ~ +185°F)
Relative Humidity 5% ~ 95% RH, Non-Condensing
Agency Certifications
cULus UL508
Compliance CE, RoHS

Compatibility & Cross-References

The 5201-DFNT-DNPSNET is ProLinx 5200 dual-port ethernet gateway bridging EtherNet/IP and DNP3 TCP (DNPSNET), widely deployed in power utility SCADA systems. Supports mapping of analog, binary and counter DNP3 data points to EtherNet/IP tags. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for product identification only.

Applications

  • Substation automation, connect Allen‑Bradley EtherNet/IP PLC to DNP3 TCP SCADA master
  • Bi-directional mapping for binary status, analog measurements and counter values
  • Power & water utility site retrofit, legacy control system integration
  • Spare replacement for existing 5201-DFNT-DNPSNET gateway installations

Warranty

  • Availability: 5201-DFNT-DNPSNET discontinued OEM production, supply as aftermarket spare; contact us for real-time stock status.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery is about 5-8 business days, express shipping available, orders over $500 ship free.

Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: ProSoft Technology part 5201-DFNT-DNPSNET is supplied by SHLY-PLC, an independent industrial automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: What is 5201-DFNT-DNPSNET?

A: 5201-DFNT-DNPSNET is ProSoft ProLinx 5200 DIN rail dual ethernet gateway for bidirectional conversion between EtherNet/IP and DNP3 TCP (DNPSNET), designed for utility SCADA.

Q: What DNP3 data types does it support?

A: Binary inputs/outputs, analog inputs/outputs and counters, standard DNP3 object points.

Q: Can it be used in power substation SCADA?

A: Yes, this gateway is commonly used for substation automation to bridge EtherNet/IP PLC and DNP3 TCP SCADA host.

Q: Are two ethernet ports electrically isolated?

A: Yes, dual isolated 10/100Mbps ports to separate EtherNet/IP control network and DNP3 SCADA network.
