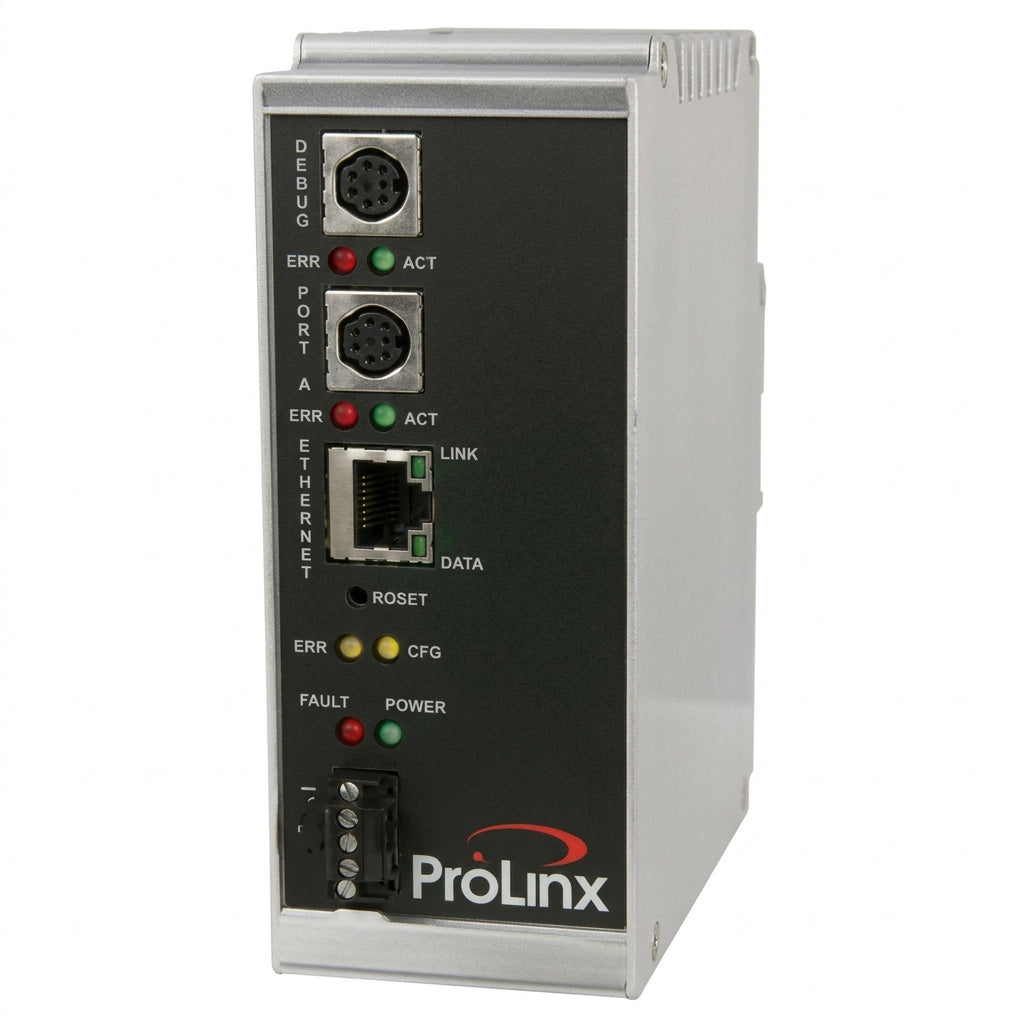

ProSoft Technology 5201-DFNT-DNPS Gateway

SKU: 5201-DFNT-DNPS
(0)
$498.19
Available
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

5201-DFNT-DNPS ProLinx EtherNet/IP to DNP3 Slave Gateway | ProSoft Technology

The ProSoft Technology 5201-DFNT-DNPS is a standalone DIN rail protocol gateway within the ProLinx 5200 series. It enables bidirectional data exchange between EtherNet/IP controllers and DNP3 Slave devices for power and water SCADA systems. The module acts as DNP3 Slave over serial, with EtherNet/IP client/server connectivity. Configuration is completed via ProSoft Configuration Builder (PCB). Technical data sourced from official ProSoft datasheet. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit undergoes visual inspection and functional testing before shipment for utility retrofit and spare replacement projects. Contact our team for compatibility verification.

Features

  • Order Code: 5201-DFNT-DNPS
  • Product Family: ProLinx 5200 Series Standalone Gateway
  • Primary Function: EtherNet/IP ↔ DNP3 Slave protocol conversion
  • Ethernet: 10/100 Base-T RJ45, EtherNet/IP Client/Server
  • Serial Port: 1 configurable DNP3 Slave serial channel, RS232 / RS422 / RS485 selectable
  • DNP3 Support: Supports DNP3 Slave, unsolicited messages, time synchronization, binary & analog data objects for telecontrol
  • Configuration Tool: ProSoft Configuration Builder (PCB) software, offline download, internal tag database mapping
  • LED Status: Power, Module Status, Ethernet Link/Activity, Serial Tx/Rx, Fault LED
  • Mounting: Standard 35mm DIN rail
  • Lifecycle: Discontinued OEM production, aftermarket spare part only
  • Typical Use: Power substation, water treatment SCADA, connect EtherNet/IP PLCs to legacy DNP3 serial RTUs

Specifications

Official Datasheet Technical Parameters

Technical Specifications
Catalog Number 5201-DFNT-DNPS
Hardware Type Standalone DIN Rail Protocol Gateway
Power Supply 18 ~ 36 VDC, Nominal 24VDC
Max Current Draw 450mA @ 24VDC
Dimensions (H × W × D) 132 × 52.5 × 114.8 mm (5.20 × 2.07 × 4.52 in)
Communication Ports 1×10/100 RJ45 Ethernet;1×Configurable DNP3 Serial Channel
Serial Interface Type RS232 / RS422 / RS485 software selectable
Protocols Implemented EtherNet/IP Client/Server, DNP3 Slave
Environmental Ratings
Operating Temperature -20°C ~ +50°C (-4°F ~ +122°F)
Storage Temperature -40°C ~ +85°C (-40°F ~ +185°F)
Relative Humidity 5% ~ 95% RH, Non-Condensing

Compatibility & Cross-References

The 5201-DFNT-DNPS belongs to ProSoft ProLinx 5200 series gateway family. Compatible with Allen‑Bradley EtherNet/IP controllers and DNP3 Master SCADA / RTU systems over serial. Supports DNP3 unsolicited messaging for fast event reporting. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for product identification only.

Applications

  • Electric power substation SCADA integration
  • Water & wastewater plant telecontrol systems
  • Bridge EtherNet/IP PLC and legacy DNP3 serial RTU devices
  • Utility system phased upgrade preserving existing DNP3 field wiring

Warranty

  • Availability: 5201-DFNT-DNPS discontinued OEM production, supply as aftermarket spare; contact us for real-time stock status.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery is about 5-8 business days, express shipping available, orders over $500 ship free.

Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: ProSoft Technology part 5201-DFNT-DNPS is supplied by SHLY-PLC, an independent industrial automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: What is 5201-DFNT-DNPS?

A: 5201-DFNT-DNPS is ProSoft ProLinx DIN rail protocol gateway bridging EtherNet/IP and DNP3 Slave serial communication for utility SCADA telecontrol.

Q: What software configures this gateway?

A: ProSoft Configuration Builder (PCB) software, used to map tags, configure DNP3 data objects and enable unsolicited event messages.

Q: What power supply is required?

A: 18~36 VDC input, nominal 24VDC, max current draw 450mA @24VDC.
