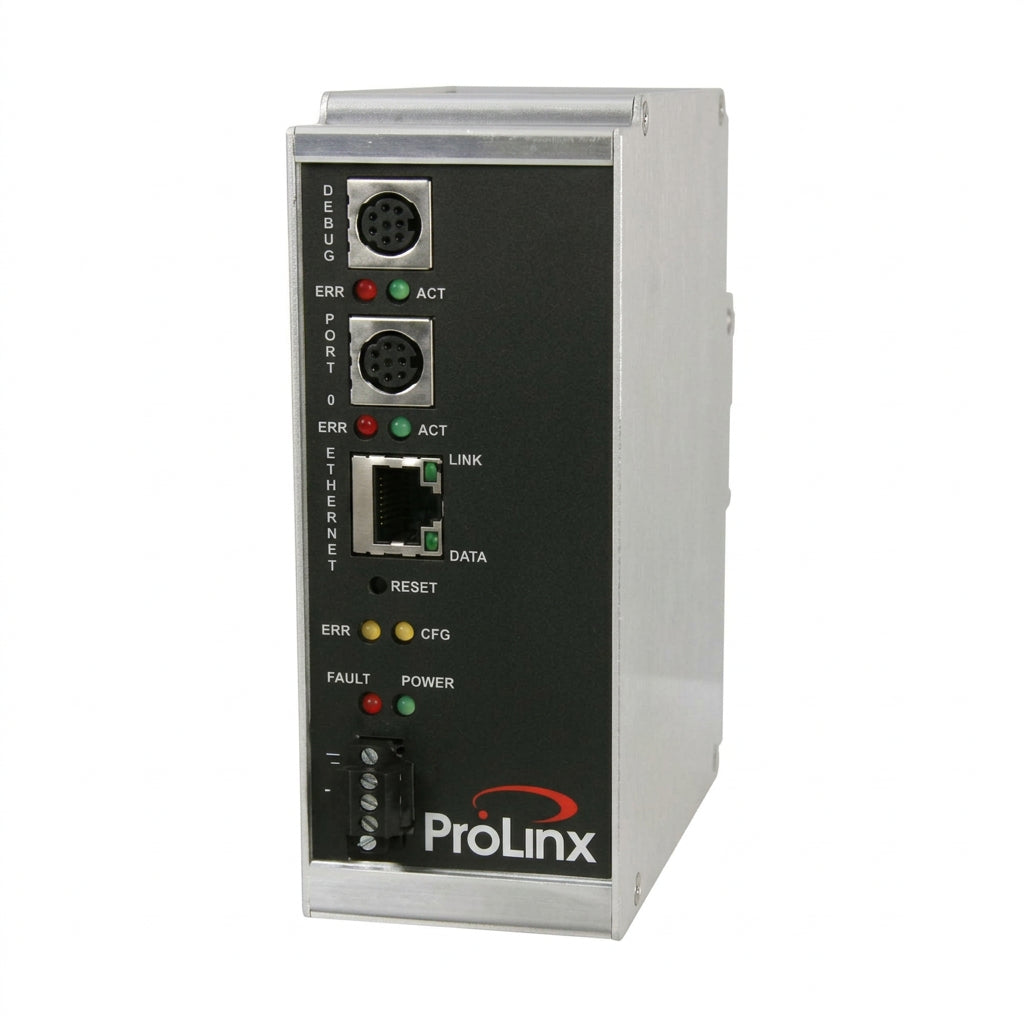

The ProSoft Technology 5201-DFNT-DH485 is standalone DIN-rail mounted ProLinx 5200 series protocol gateway. It delivers bidirectional data exchange between EtherNet/IP network and DH485 serial bus for legacy Allen‑Bradley SLC 500 PLC systems. It operates as EtherNet/IP Client/Server and DH485 Master/Slave, supporting explicit messaging and user-defined data mapping. Technical data sourced directly from official ProSoft 5201-DFNT-DH485 datasheet & user manual. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit undergoes visual inspection and functional testing before shipment for retrofit and spare replacement projects. Contact our team for compatibility verification.
Official Datasheet & User Manual Technical Parameters
| Technical Specifications | |
| Catalog Number | 5201-DFNT-DH485 |
| Hardware Type | DIN Rail Protocol Gateway, ProLinx 5200 Series |
| Supply Voltage | 18 ~ 30 VDC, nominal 24VDC |
| Ethernet Interface | 1 x 10/100Mbps EtherNet/IP port, max 50 client connections |
| EtherNet/IP Role | Client / Server, Explicit Messaging |
| Serial Interface | Isolated DH485 (RS485), DH485 Master / Slave |
| Configuration Tool | ProSoft Configuration Builder (PCB), Web-based configuration |
| Mounting | 35mm DIN Rail |
| Environmental Ratings | |
| Operating Temperature | 0°C ~ +60°C (32°F ~ +140°F) |
| Storage Temperature | -40°C ~ +85°C (-40°F ~ +185°F) |
| Relative Humidity | 5% ~ 95% RH, Non-Condensing |
| Agency Certifications | |
| cULus | UL508 |
| Compliance | CE, RoHS |
The 5201-DFNT-DH485 is ProLinx 5200 series DIN rail gateway bridging EtherNet/IP and DH485 serial bus. Designed to communicate with legacy Allen‑Bradley SLC 500 PLCs over DH485. Supports user-configurable data mapping between EtherNet/IP tags and DH485 registers. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for product identification only.
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: 5201-DFNT-DH485 is ProSoft ProLinx 5200 DIN rail gateway for bidirectional conversion between EtherNet/IP and DH485, mainly for Allen‑Bradley SLC500 legacy PLC.
A: It is commonly used with Allen‑Bradley SLC 500 series PLC via DH485 serial bus.
A: EtherNet/IP Client/Server with explicit messaging, up to 50 concurrent client connections.
A: Yes, DH485 port configurable as DH485 Master or Slave mode via PCB software.
