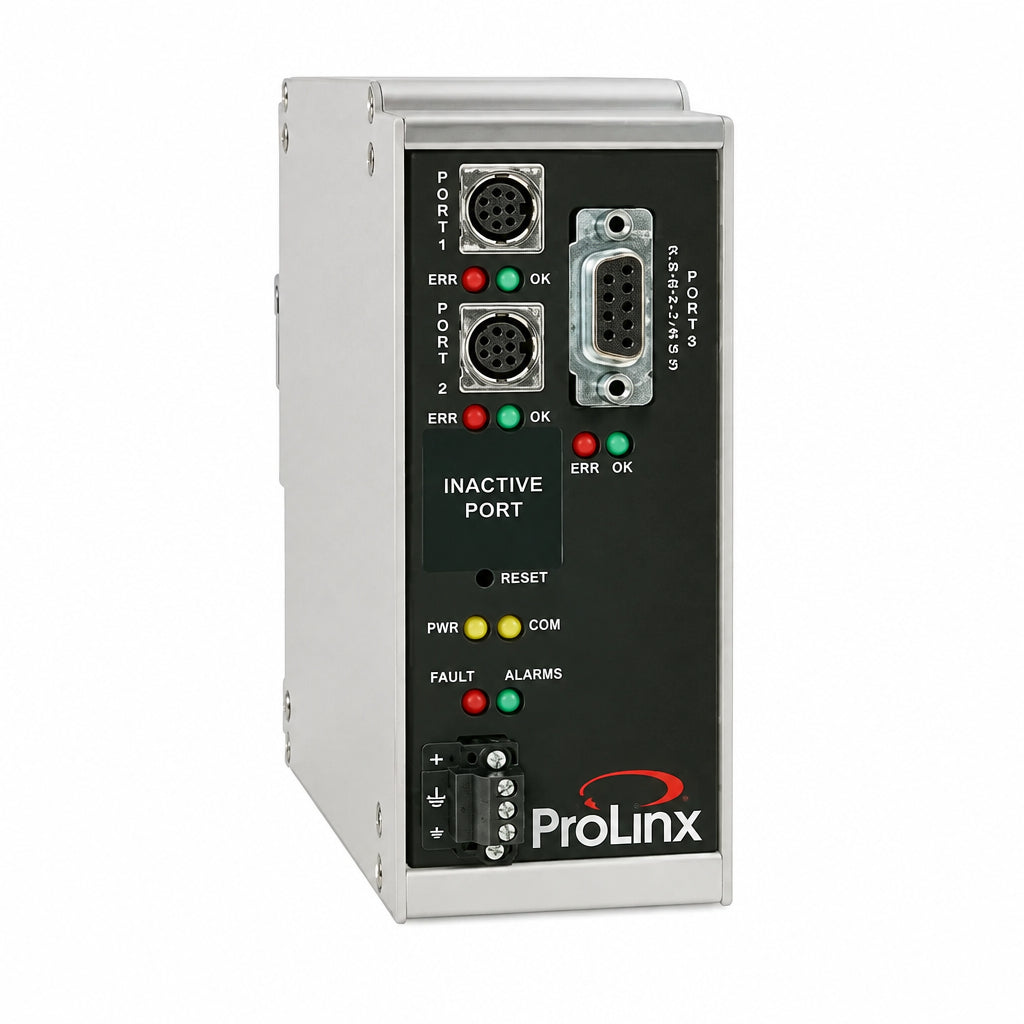

ProSoft 5105-MCM-PDPS Modbus Master / Profinet Slave Gateway Module

The ProSoft 5105-MCM-PDPS is a communication gateway module designed for Allen‑Bradley ControlLogix 5580/5570 chassis. It acts as Modbus RTU/ASCII Master and Profinet IO Slave, enabling seamless data exchange between Modbus serial field devices and Profinet controller systems.

Key Features

  • ControlLogix chassis compatible module, 1756 form factor
  • Modbus RTU / ASCII Master (RS485 / RS232 serial port)
  • Profinet IO Slave interface, single RJ45 Ethernet port
  • Supports up to 100 Modbus slave devices on serial bus
  • Configurable input/output data mapping between Modbus and Profinet
  • Web-based configuration, diagnostic webpage and status LEDs
  • Hot-swappable, compatible with ControlLogix backplane

Technical Specifications

Part Number 5105-MCM-PDPS
Product Type Modbus Master / Profinet IO Slave Gateway
Host Platform Allen‑Bradley ControlLogix 1756 Chassis
Modbus Port RS485 / RS232, Modbus RTU / ASCII Master
Profinet Interface 1 × RJ45, Profinet IO Slave
Max Modbus Slaves 100
Profinet Data Size Up to 1440 bytes input / 1440 bytes output
Backplane Current Draw 750 mA @ 5.1V DC
Operating Temperature 0°C ~ +60°C
Storage Temperature -40°C ~ +85°C
Humidity 5% to 95% non-condensing
Certifications CE, UL, cUL, Profinet Conformance Class B

Applications

Industrial protocol conversion for factories, retrofitting legacy Modbus RTU sensors, drives and meters into Profinet-based automation systems. Widely used in water treatment, material handling, packaging machinery and process control panels.

Warranty & Notes

Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Supplied by independent automation supplier SHLY-PLC, not an authorized ProSoft distributor. Cross-check all parameters before installation. Refer to ProSoft 5105-MCM-PDPS datasheet for full installation and safety instructions.

FAQ

Q: What is the function of 5105-MCM-PDPS?
A: It is a ControlLogix gateway converting Modbus RTU/ASCII master serial data to Profinet IO slave for PLC network integration.

Q: Can it work with 1756 ControlLogix chassis?
A: Yes, this module is designed for 1756 ControlLogix rack installation.
