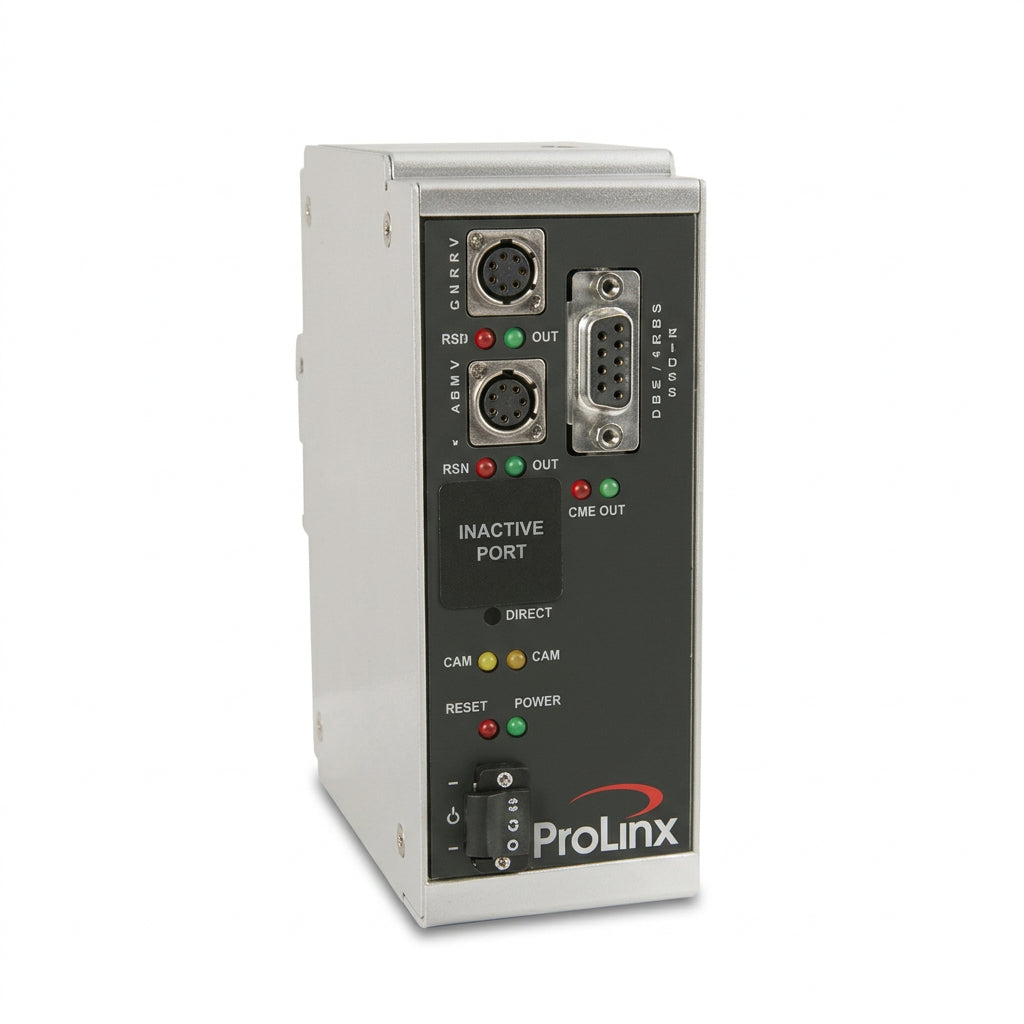

ProSoft Technology 5105-DFCM-PDPS Gateway

SKU: 5105-DFCM-PDPS
(0)
$998.98
Available
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

5105-DFCM-PDPS ProLinx DF1 Master/Slave to PROFIBUS DP Slave Gateway | ProSoft Technology

The ProSoft Technology 5105-DFCM-PDPS is a standalone DIN rail protocol gateway within the ProLinx 5100 series. It enables bidirectional data exchange between DF1 serial devices and PROFIBUS DP Master controllers. The module supports DF1 Master or Slave on its serial port and acts as PROFIBUS DP V0 Slave on the DB9 PROFIBUS connector. Configuration is completed via ProSoft Configuration Builder (PCB). Technical data sourced from official ProSoft datasheet. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit undergoes visual inspection and functional testing before shipment for factory retrofit and spare replacement projects. Contact our team for compatibility verification.

Features

  • Order Code: 5105-DFCM-PDPS
  • Product Family: ProLinx 5100 Series Standalone Gateway
  • Primary Function: DF1 Master/Slave ↔ PROFIBUS DP Slave protocol conversion
  • Serial Port: 1 configurable DF1 serial channel, RS232 / RS422 / RS485 software selectable
  • PROFIBUS Port: DB9 female connector, PROFIBUS DP V0 Slave
  • DF1 Support: DF1 Master or Slave mode, full Allen‑Bradley DF1 serial protocol support
  • Data Mapping: User-configurable internal database mapping between DF1 and PROFIBUS DP
  • Configuration Tool: ProSoft Configuration Builder (PCB) software, offline download
  • LED Status: Power, Module Status, Serial Tx/Rx, PROFIBUS Bus Activity, Fault LED
  • Mounting: Standard 35mm DIN rail
  • Lifecycle: Discontinued OEM production, aftermarket spare part only
  • Typical Use: Factory automation, connect Allen‑Bradley DF1 serial PLCs to Siemens PROFIBUS DP master systems

Specifications

Official Datasheet Technical Parameters

Technical Specifications
Catalog Number 5105-DFCM-PDPS
Hardware Type Standalone DIN Rail Protocol Gateway
Power Supply 18 ~ 36 VDC, Nominal 24VDC
Max Current Draw 500mA @ 24VDC
Dimensions (H × W × D) 132 × 52.5 × 114.8 mm (5.20 × 2.07 × 4.52 in)
Communication Ports 1×DF1 Serial Port;1×DB9 PROFIBUS DP Slave Port
Serial Interface Type RS232 / RS422 / RS485 software selectable
Protocols Implemented DF1 Master / DF1 Slave, PROFIBUS DP V0 Slave
PROFIBUS Data Size Max 244 bytes Input, 244 bytes Output
Environmental Ratings
Operating Temperature -20°C ~ +50°C (-4°F ~ +122°F)
Storage Temperature -40°C ~ +85°C (-40°F ~ +185°F)
Relative Humidity 5% ~ 95% RH, Non-Condensing

Compatibility & Cross-References

The 5105-DFCM-PDPS belongs to ProSoft ProLinx 5100 series gateway family. Compatible with Allen‑Bradley DF1 serial PLCs and PROFIBUS DP Master controllers such as Siemens S7 series. The module acts as DP V0 slave and supports flexible I/O data mapping. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for product identification only.

Applications

  • Legacy factory automation system integration
  • Connect Allen‑Bradley DF1 serial PLC to Siemens PROFIBUS DP master PLC
  • Retrofit projects preserving existing DF1 serial field wiring
  • Machine upgrade, bridge DF1 serial devices to PROFIBUS DP network

Warranty

  • Availability: 5105-DFCM-PDPS discontinued OEM production, supply as aftermarket spare; contact us for real-time stock status.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery is about 5-8 business days, express shipping available, orders over $500 ship free.

Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: ProSoft Technology part 5105-DFCM-PDPS is supplied by SHLY-PLC, an independent industrial automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.
