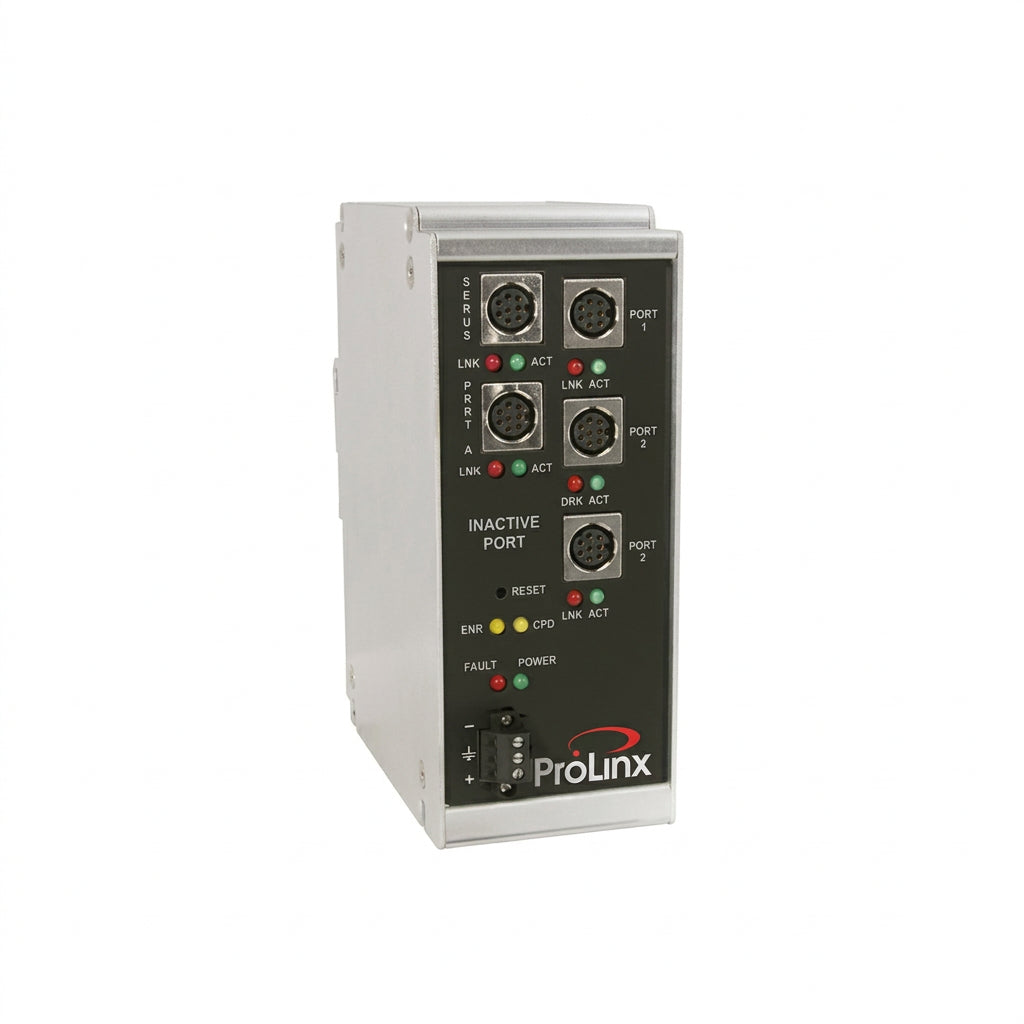

The ProSoft Technology 5102-DNPS-MCM3 is a standalone DIN rail protocol gateway in the ProLinx 5100 series. It enables bidirectional data exchange between DNP3 Master SCADA systems and Modbus serial devices. The module features one DNP3 Slave serial port plus three independent Modbus Master/Slave serial ports. Configuration is completed via ProSoft Configuration Builder (PCB). Technical data sourced from official ProSoft datasheet. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit undergoes visual inspection and functional testing before shipment for utility retrofit and spare replacement projects. Contact our team for compatibility verification.
Official Datasheet Technical Parameters
| Technical Specifications | |
| Catalog Number | 5102-DNPS-MCM3 |
| Hardware Type | Standalone DIN Rail Protocol Gateway |
| Power Supply | 18 ~ 36 VDC, Nominal 24VDC |
| Max Current Draw | 500mA @ 24VDC |
| Dimensions (H × W × D) | 132 × 52.5 × 114.8 mm (5.20 × 2.07 × 4.52 in) |
| Communication Ports | 1 × DNP3 Serial Port; 3 × Modbus Serial Ports; 1 × DB9M RS232 config port |
| Serial Interface Type | RS232 / RS422 / RS485 software selectable per application port |
| Protocols Implemented | DNP3 Slave, Modbus RTU / ASCII (Master or Slave per port) |
| Environmental Ratings | |
| Operating Temperature | -20°C ~ +50°C (-4°F ~ +122°F) |
| Storage Temperature | -40°C ~ +85°C (-40°F ~ +185°F) |
| Relative Humidity | 5% ~ 95% RH, Non-Condensing |
The 5102-DNPS-MCM3 belongs to ProSoft ProLinx 5100 series gateway family. Compatible with DNP3 Master SCADA/RTU controllers and Modbus RTU/ASCII field devices, transmitters, meters and PLCs. Three independent Modbus serial ports allow multi-drop connection to separate Modbus networks. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for product identification only.
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: 5102-DNPS-MCM3 is ProSoft ProLinx DIN rail protocol gateway with 1×DNP3 Slave serial port and 3×Modbus serial ports, converting DNP3 and Modbus RTU/ASCII for SCADA telecontrol.
A: ProSoft Configuration Builder (PCB) software for serial port setup, DNP3 object configuration and cross-protocol data mapping.
A: 18~36 VDC input, nominal 24VDC, max current draw 500mA @24VDC.
