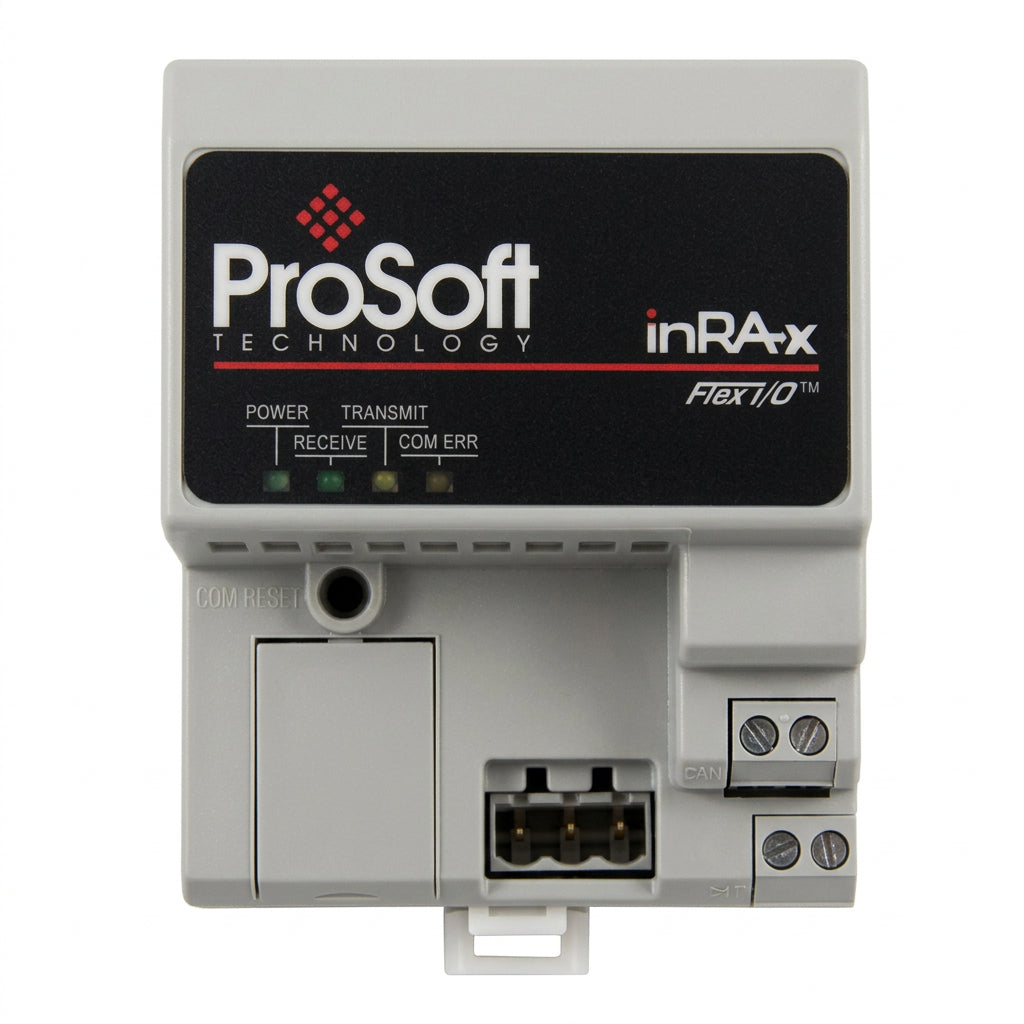

3170-MBS Prosoft
3170-MBS Prosoft

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

ProSoft Technology

ProSoft Technology 3170-MBS Communication Module

SKU: 3170-MBS
(0)
$1,060.00
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

3170-MBS ProSoft Modbus Slave Adapter for FLEX I/O

The ProSoft Technology 3170-MBS is a network adapter module for Rockwell FLEX / Integra I/O system. It acts as Modbus Slave interface, allowing FLEX I/O racks to communicate with Modbus RTU master controllers over RS485 serial bus. Technical data sourced directly from official ProSoft 3170-MBS datasheet & user manual. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit undergoes visual inspection and functional testing before shipment for retrofit and spare replacement projects. Contact our team for compatibility verification.

Features

  • Order Code: 3170-MBS
  • Product Family: ProSoft 3170 Series FLEX I/O Network Adapter
  • Primary Function: Modbus RTU Slave Adapter for Rockwell FLEX & Integra I/O
  • Mounting: FLEX I/O rack mount, supports up to 8 FLEX/Integra I/O modules
  • Serial Port: RS485 screw terminal port, Modbus RTU / ASCII
  • Modbus Mode: Modbus Slave, address range 1~247 set via DIP switches
  • Supported Modbus: RTU (CRC16), ASCII (LRC), broadcast message support
  • Configuration: DIP switch setup for address, parity, baud rate
  • Diagnostics LED: Power/Status, Serial TX, RX and Fault indicator LEDs
  • Power Supply: 24 VDC (19.2 ~ 31.2 VDC), max power consumption 8.6W
  • Certifications: cULus, UL Class I Div 2 Groups A,B,C,D, CE, RoHS compliant
  • Lifecycle: Discontinued OEM production, legacy spare part only
  • Typical Use: Retrofit FLEX I/O racks into Modbus RTU networks, field remote I/O upgrade, spare replacement

Specifications

Official Datasheet & User Manual Technical Parameters

Technical Specifications
Catalog Number 3170-MBS
Hardware Type FLEX I/O Rack Mount Modbus Slave Network Adapter
Serial Interface RS485, screw terminal connection
Modbus Protocol Modbus RTU / ASCII, Slave mode
I/O Capacity Up to 8 FLEX or Integra I/O modules per rack
Configuration Method DIP switch for address, baud rate, parity
Supply Voltage 19.2 ~ 31.2 VDC, nominal 24VDC, max 8.6W
Dimensions 87 × 68 × 69 mm (3.4 × 2.7 × 2.7 in)
Environmental Ratings
Operating Temperature 0°C ~ +55°C (32°F ~ +131°F)
Storage Temperature -40°C ~ +85°C (-40°F ~ +185°F)
Relative Humidity 5% ~ 95% RH, Non-Condensing
Agency Certifications
cULus UL Class I Div 2 Groups A,B,C,D
Compliance CE, RoHS

Compatibility & Cross-References

The 3170-MBS is ProSoft 3170 adapter for Rockwell FLEX I/O and Integra I/O racks. It converts FLEX I/O into a Modbus RTU slave device over RS485. Module address, baud rate and parity are configured by hardware DIP switches, no software configuration required. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for product identification only.

Applications

  • Integrate Rockwell FLEX / Integra remote I/O into Modbus RTU serial networks
  • Field brownfield retrofit, connecting existing FLEX I/O to Modbus master controllers
  • Distributed remote I/O for process, water treatment and manufacturing systems
  • Spare replacement for existing 3170-MBS FLEX I/O adapter installations

Warranty

  • Availability: 3170-MBS discontinued OEM production, supply as aftermarket spare; contact us for real-time stock status.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery is about 5-8 business days, express shipping available, orders over $500 ship free.

Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: ProSoft Technology part 3170-MBS is supplied by SHLY-PLC, an independent industrial automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: What is 3170-MBS?

A: 3170-MBS is ProSoft FLEX I/O Modbus RTU Slave network adapter, used to connect Rockwell FLEX/Integra I/O racks to Modbus RTU master via RS485.

Q: How many I/O modules can one 3170-MBS support?

A: Up to 8 FLEX or Integra I/O modules mounted on the same rack.

Q: How to configure module address and baud rate?

A: Configured via hardware DIP switches, supports Modbus slave address 1 to 247.

Q: What communication modes are supported?

A: Modbus RTU (CRC16) and Modbus ASCII (LRC), accepts broadcast commands from Modbus master.
