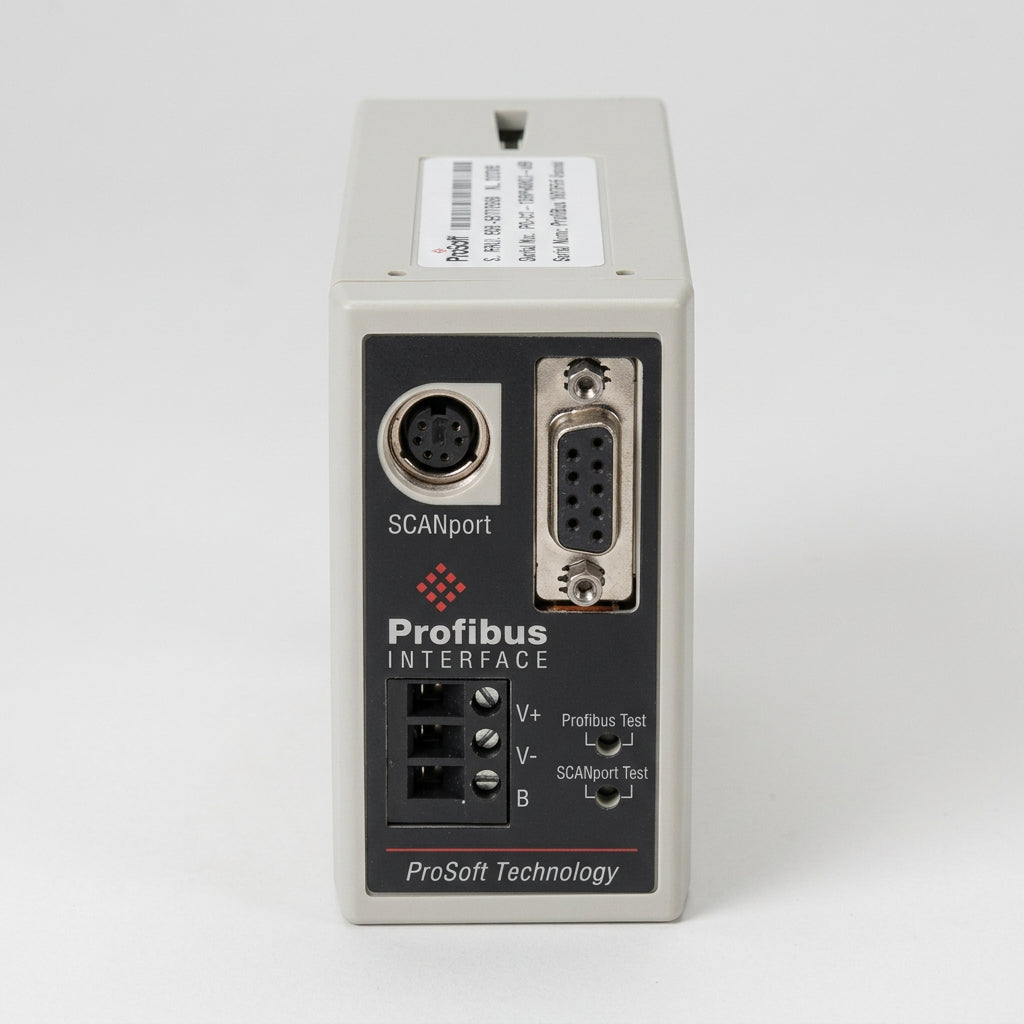

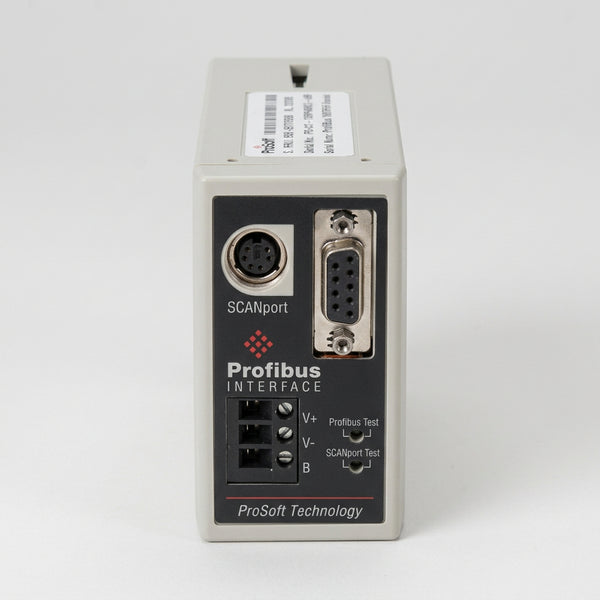

ProSoft Technology 1560-PDP2 Communication Module

SKU: 1560-PDP2
(0)
$1,433.50
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

1560-PDP2 ProSoft PROFIBUS DP Slave to SCANport Communication Adapter

The ProSoft Technology 1560-PDP2 is a standalone communication adapter designed to bridge PROFIBUS DP Slave network and Rockwell Automation SCANport compatible drives. It enables PROFIBUS DP master controllers to read drive status, write setpoints and access drive parameters via SCANport interface. Technical data sourced directly from official ProSoft 1560-PDP datasheet & user manual. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit undergoes visual inspection and functional testing before shipment for retrofit and spare replacement projects. Contact our team for compatibility verification.

Features

  • Order Code: 1560-PDP2
  • Product Family: ProSoft 1560 Series SCANport Gateway Adapter
  • Primary Function: PROFIBUS DP Slave to Rockwell SCANport Communication Adapter
  • Mounting: Enclosed stand-alone unit, DIN rail mountable
  • PROFIBUS Port: DB9 female connector, RS485, PROFIBUS DP Slave
  • SCANport Port: Dedicated SCANport connector for Rockwell drives
  • Max Baud Rate: Up to 12 Mbps PROFIBUS
  • Node Address: Set via DIP switches, range 1~126
  • Data Links: Supports up to 8 in/out datalinks; pre-assigned data mapping
  • Parameter Access: Read/write up to 32 drive parameter values
  • GSD File: PSFT087C
  • Diagnostics LED: Bi-color SCANport status LED, bi-color PROFIBUS status LED
  • Power Supply: 85~264 VAC single phase, optional 24VDC power input
  • Certifications: cULus, CE, RoHS compliant
  • Lifecycle: Discontinued OEM production, legacy spare part only
  • Typical Use: Rockwell SCANport drive PROFIBUS DP integration, factory retrofit, spare replacement

Specifications

Official Datasheet & User Manual Technical Parameters

Technical Specifications
Catalog Number 1560-PDP2
Hardware Type Standalone PROFIBUS DP Slave to SCANport Adapter
PROFIBUS Interface DB9 Female, RS485, PROFIBUS DP Slave
Secondary Interface SCANport connector for Rockwell drives
Max PROFIBUS Baud Rate 12 Mbps
Configuration Method DIP switch settings for node address & options
Power Input 85~264 VAC 1-phase, optional 24VDC
Environmental Ratings
Operating Temperature 0°C ~ +50°C (32°F ~ +122°F)
Storage Temperature -40°C ~ +85°C (-40°F ~ +185°F)
Relative Humidity 5% ~ 95% RH, Non-Condensing
Agency Certifications
Certifications cULus, CE, RoHS

Compatibility & Cross-References

The 1560-PDP2 is ProSoft 1560 series standalone protocol adapter that acts as PROFIBUS DP Slave, connecting PROFIBUS DP master PLCs to Rockwell SCANport drives. Predefined data mapping enables direct control reference, feedback status and parameter exchange with drives. Node address and communication options are set via DIP switches. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for product identification only.

Applications

  • Connect Rockwell SCANport compatible AC drives to PROFIBUS DP networks
  • VFD speed control, status feedback and parameter read/write via PROFIBUS
  • Legacy automation system upgrade & brownfield retrofit
  • Spare replacement for existing 1560-PDP2 SCANport adapter installations

Warranty

  • Availability: 1560-PDP2 discontinued OEM production, supply as aftermarket spare; contact us for real-time stock status.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery is about 5-8 business days, express shipping available, orders over $500 ship free.

Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: ProSoft Technology part 1560-PDP2 is supplied by SHLY-PLC, an independent industrial automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.
