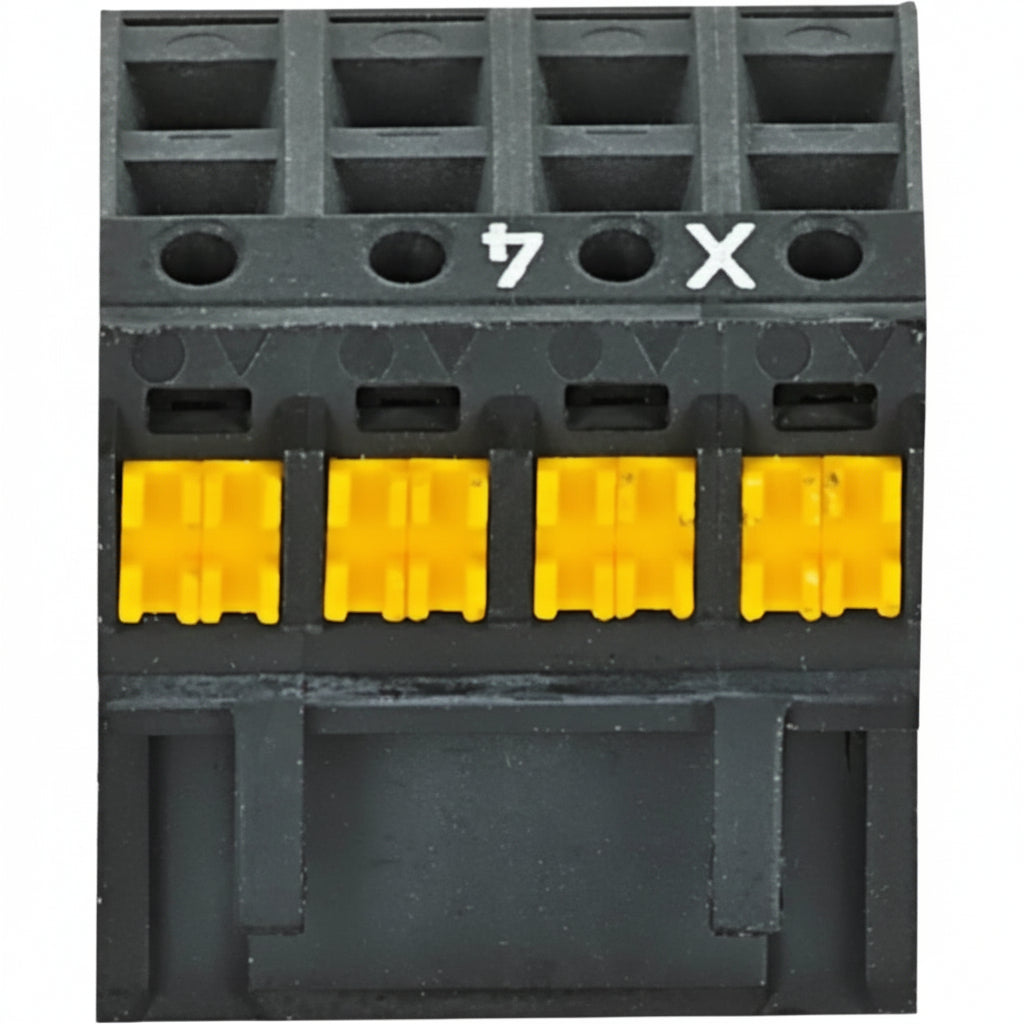

Plug-in spring-loaded (cage-clamp) terminal for fieldbus modules on the PNOZ mm0.xp (PNOZmulti Mini) base unit, 1 piece
The Pilz 783542 (Spring terminals PNOZ mmcxp, 1 pc.) is a plug-in spring-loaded (cage-clamp) terminal used with the fieldbus communication modules that connect to the PNOZ mm0.xp base unit of the PNOZmulti Mini system. It provides tool-free, vibration-resistant wiring of the fieldbus module's connections.
Supplied by SHLY-PLC, an independent industrial-automation distributor. Brand and model are used for identification only; this listing is not affiliated with, sponsored or endorsed by the manufacturer.
| Product type | Plug-in spring terminal |
|---|---|
| Clamping technology | Spring-loaded (cage-clamp) |
| Designed for | PNOZ mmcxp fieldbus modules |
| Used on base unit | PNOZ mm0.xp (PNOZmulti Mini) |
| Equivalent screw version | 793542 = Screw terminals PNOZ mmcxp, 1 pc. |
|---|---|
| Mounting | Plugs onto fieldbus module |
| Colour | Black with yellow levers |
| Quantity per pack | 1 piece |
| Designed for | PNOZ mmcxp fieldbus modules (EtherCAT FSoE, CANopen, EtherNet/IP, PROFINET, etc.) |
|---|---|
| Base unit | PNOZ mm0.xp (PNOZmulti Mini) |
| Order number | 783542 (1 piece) |
| Bulk pack | 783543 = pack of 10 |
| Material | Engineering thermoplastic |
|---|---|
| Mounting | Plug-in onto fieldbus module |
| Colour | Black / yellow levers |
| Ambient temperature | Per host module (0 … +60 °C) |
|---|---|
| Degree of protection | IP20 (when plugged on module) |
| Sold as | Spare part / accessory, 1 piece |
| Approvals / certifications | CE · cULus Listed · RoHS compliant |
|---|---|
| Standard | For use within certified PNOZmulti Mini system |
| Country of origin | Germany |
