Force-guided contact expansion · 4 delayed N/O safety contacts · 0.5 s fixed delay · 24 V DC · 45 mm

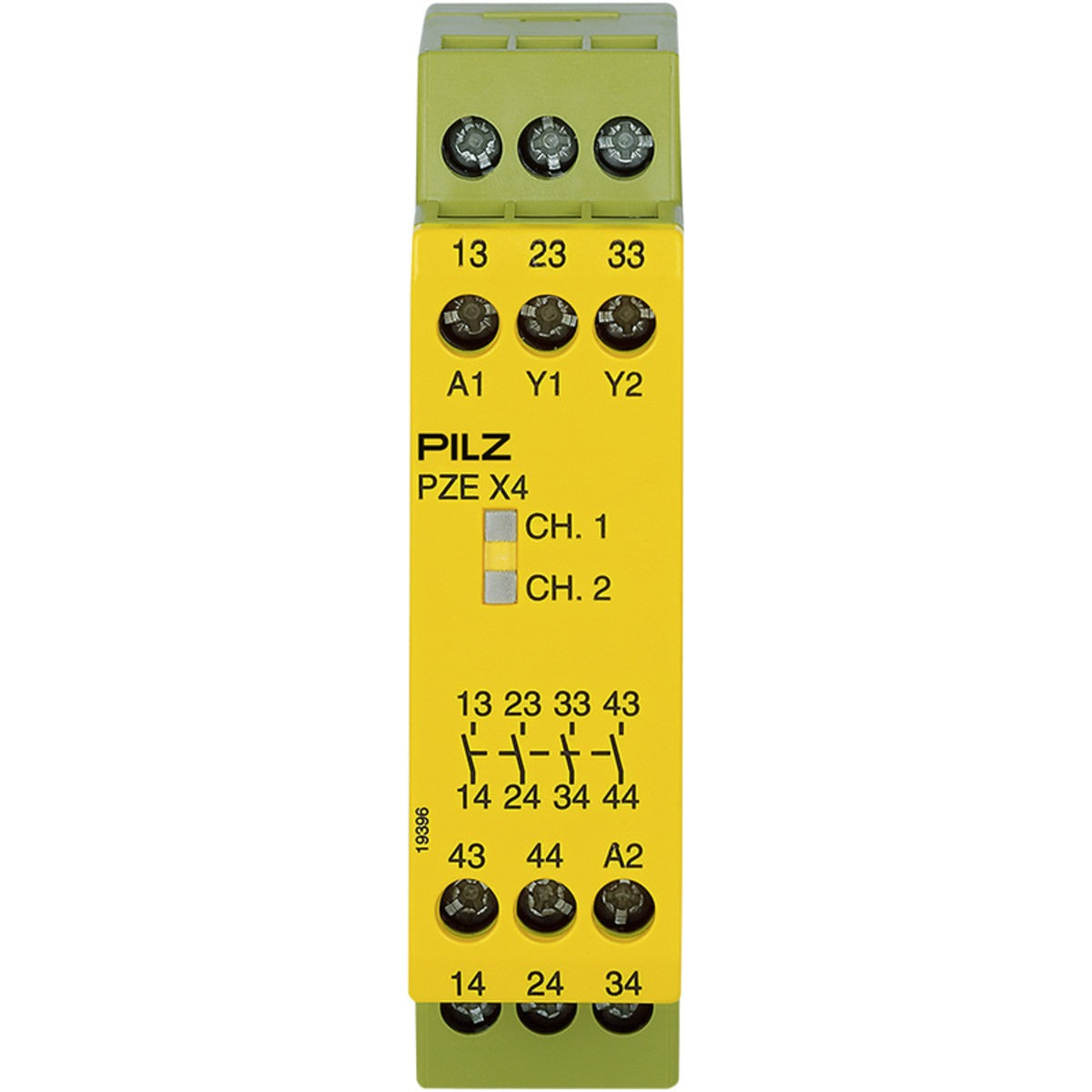

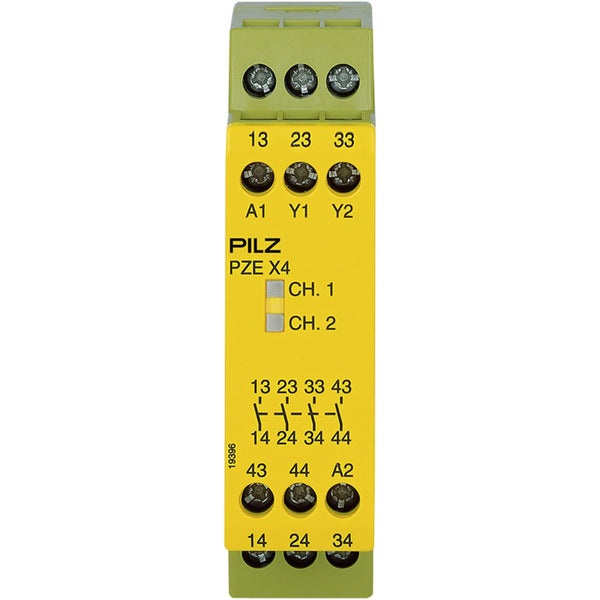

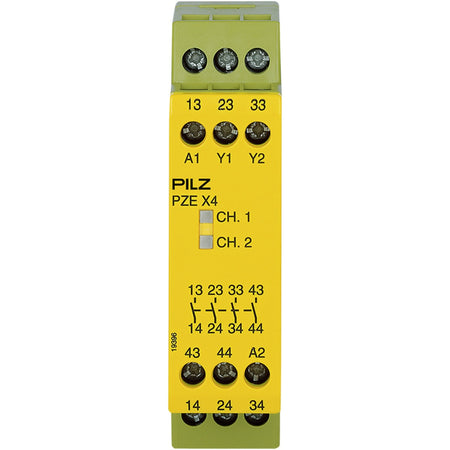

The Pilz 774580 (PZE X4V 0.5/24VDC) is a force-guided contact expansion module of the PNOZ X family. It adds four positively guided N/O safety contacts with a fixed 0.5 s delay-on-de-energisation to a base safety relay (e.g. PNOZ X, PNOZsigma). It is wired in series with the base unit's safety circuit and shares the base unit's feedback loop, increasing the number of available delayed safety contacts.
Supplied by SHLY-PLC, an independent industrial-automation distributor. Brand and model are used for identification only; this listing is not affiliated with, sponsored or endorsed by the manufacturer.
774580
| Sibling models | 774580 = PZE X4V 0.5/24 V DC 4 N/O fixed (this unit) · 774581 = other voltage variant · 774582 = other delay |
|---|---|
| Scope of delivery | PZE X4V expansion module, screw terminals, DIN-rail mounting, operating instructions |
| Power supply | |
|---|---|
| Supply type | DC |
| Nominal supply voltage | 24 V DC |
| Voltage tolerance | −15 % / +10 % |
| Power consumption | ~2.5 W |
| External fuse | 6 A slow |
| Inputs & outputs | |
|---|---|
| Safety contacts | 4 × N/O, delayed, force-guided |
| Contact rating | 250 V AC / 6 A (resistive) |
| Min. contact current | 10 mA |
| Coil / series wiring | Wired in series with base unit |
| Feedback loop | Via base unit |
| Performance level | Up to PL e (follows base unit, EN ISO 13849-1) |
|---|---|
| Category | Up to Category 4 |
| SIL / SIL CL | Up to SIL 3 / SIL CL 3 |
| Max. safety level | Limited by connected base unit |
| Fixed delay | 0.5 s, delay-on de-energisation |
|---|---|
| Response time | Typ. ~20 ms |
| Mechanical life | 10 × 10^6 operations |
| Mounting position | Any, on DIN rail |
| Dimensions W × H × D | 45 × 99 × 121 mm |
|---|---|
| Net weight | ~0.25 kg |
| Mounting | DIN rail 35 mm |
| Terminal type | Screw terminals |
| Degree of protection | IP20 terminals / IP40 housing |
| Ambient temperature, operation | −10 … +55 °C |
|---|---|
| Storage / transport | −25 … +70 °C |
| Relative humidity | ≤ 95 %, non-condensing |
| Vibration | 10 – 55 Hz, 0.35 mm |
| Housing material | PPO / ABS UL 94 V0 |
| Approvals / certifications | CE · cULus Listed · TÜV · EAC · CCC |
|---|---|
| Functional safety standards | EN ISO 13849-1 (PL e / Cat. 4) · IEC 62061 (SIL CL 3) · IEC 61508 (SIL 3) |
| EMC standards | EN 61000-6-2 (immunity) · EN 61000-6-4 (emission) · EN 55011 |
| General standards | EN 60204-1 · EN 60947-5-1 · EN ISO 12100 |
