PNOZelog base safety relay · 2 N/O safety contacts + 1 N/C auxiliary · 2 test-pulse outputs · 24 V DC · 22.5 mm

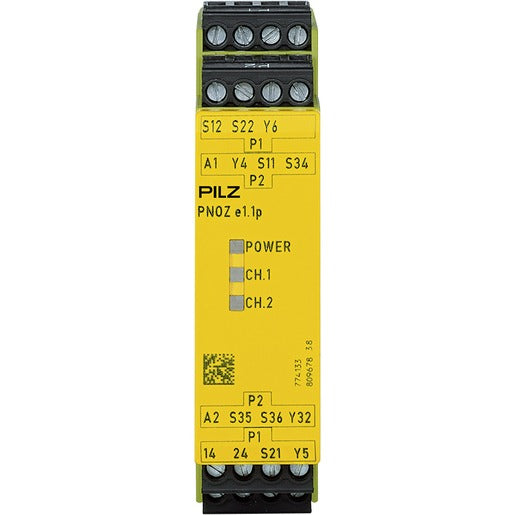

The Pilz 774133 (PNOZ e1.1p) is a 22.5 mm wide PNOZelog electronic safety relay. It monitors E-stop pushbuttons and safety gate switches with 1- or 2-channel wiring and provides two positively driven N/O safety contacts plus one N/C auxiliary. Two test-pulse outputs supply connected sensors with cross-fault detection, and an AND-OR input allows logic interconnection with other PNOZelog units.
Supplied by SHLY-PLC, an independent industrial-automation distributor. Brand and model are used for identification only; this listing is not affiliated with, sponsored or endorsed by the manufacturer.
774133
| Sibling models | 774133 = PNOZ e1.1p 24 V DC, screw terminals (this unit) · 784133 = spring-loaded terminal variant |
|---|---|
| Scope of delivery | PNOZ e1.1p base unit, screw terminals, DIN-rail mounting, operating instructions |
| Power supply | |
|---|---|
| Supply type | DC |
| Nominal supply voltage | 24 V DC |
| Voltage tolerance | −15 % / +10 % |
| Power consumption | ~2 W |
| External fuse | 6 A slow / 10 A fast |
| Inputs & outputs | |
|---|---|
| Safe inputs | 24 V DC, 1-/2-channel, with cross-fault detection |
| Safety outputs | 2 × N/O semiconductor, 24 V DC / 2 A |
| Auxiliary output | 1 × N/C |
| Test pulse outputs | 2 ×, sensor supply |
| Feedback loop | Y1-Y2, max. 150 ms |
| Performance level | Up to PL e (EN ISO 13849-1) |
|---|---|
| Category | Up to Category 4 |
| SIL / SIL CL | Up to SIL 3 / SIL CL 3 |
| Response time semi | Typ. 40 ms / max. 43 ms |
| Logic input delay | Typ. 120 ms / max. 200 ms |
|---|---|
| Diagnostic coverage | Up to 99 % |
| Sensor types | E-stop, safety gate, light curtain |
| Start | Automatic / monitored |
| Dimensions W × H × D | 22.5 × 94 × 121 mm |
|---|---|
| Net weight | ~0.15 kg |
| Mounting | DIN rail 35 mm |
| Terminal type | Screw terminals |
| Degree of protection | IP20 terminals / IP40 housing |
| Ambient temperature, operation | −10 … +55 °C |
|---|---|
| Storage / transport | −25 … +70 °C |
| Relative humidity | ≤ 95 %, non-condensing |
| Vibration | 10 – 55 Hz, 0.35 mm |
| Overvoltage category | III / II, pollution degree 2 |
| Approvals / certifications | CE · cULus Listed · TÜV · EAC · CCC |
|---|---|
| Functional safety standards | EN ISO 13849-1 (PL e / Cat. 4) · IEC 62061 (SIL CL 3) · IEC 61508 (SIL 3) |
| EMC standards | EN 61000-6-2 (immunity) · EN 61000-6-4 (emission) · EN 55011 |
| General standards | EN 60204-1 · EN 60947-5-1 · EN ISO 12100 |
