2-channel E-stop / safety gate monitor · 7 N/O safety contacts + 1 N/C auxiliary · 2 status semiconductor outputs · 24 V AC/DC · 90 mm

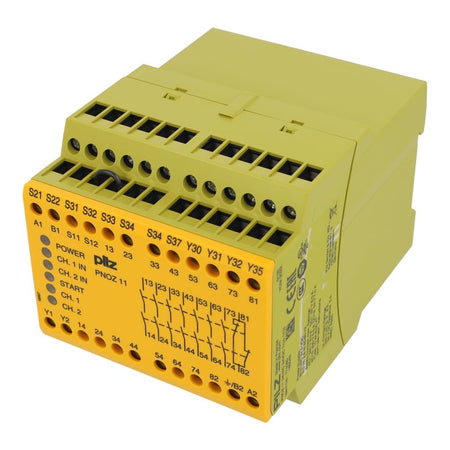

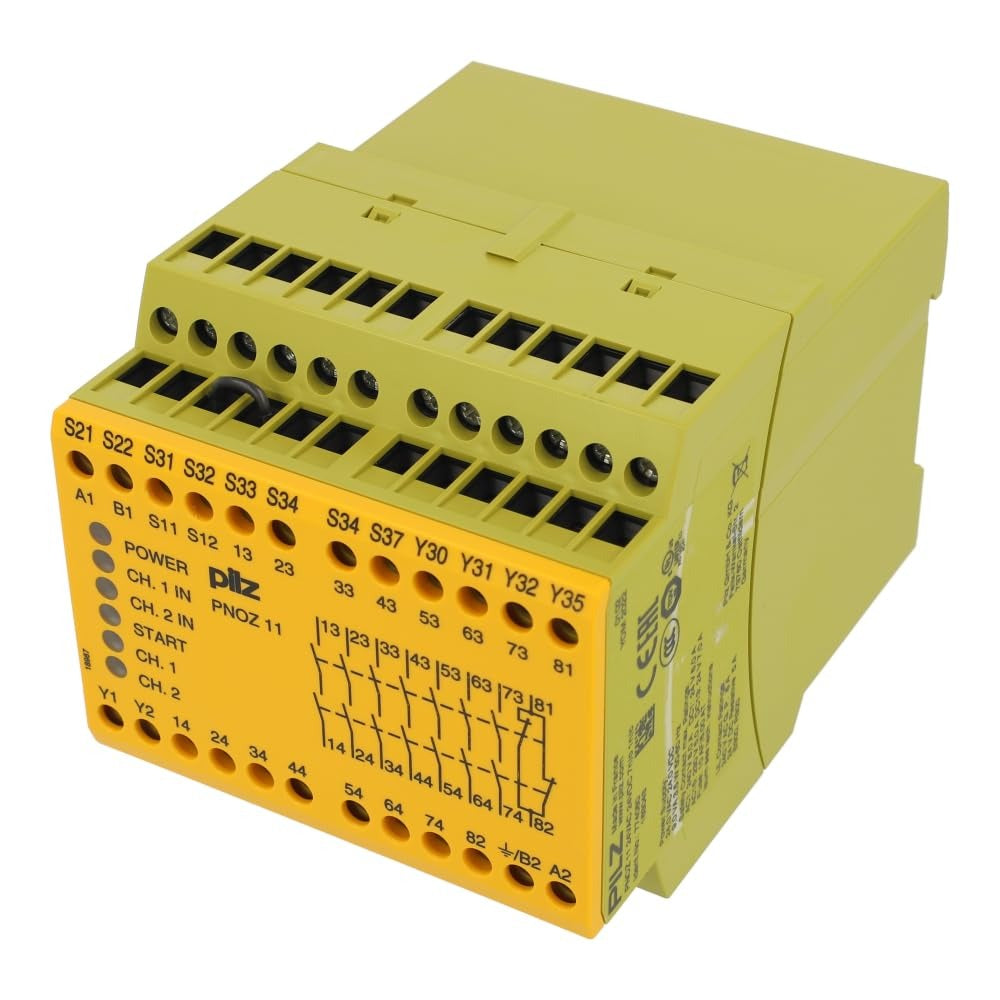

The Pilz 774080 (PNOZ 11) is a 2-channel standalone safety relay for emergency-stop circuits and movable safety guards. It monitors E-stop pushbuttons and safety gate switches with or without detection of shorts across contacts, and provides a large number of positively guided N/O safety contacts for switching contactors, valves and signalling circuits. Automatic, manual or monitored reset can be selected, and an integrated feedback loop monitors external contactors.
Supplied by SHLY-PLC, an independent industrial-automation distributor. Brand and model are used for identification only; this listing is not affiliated with, sponsored or endorsed by the manufacturer.
774080
| Sibling models | 774080 = PNOZ 11 24 V AC/DC (this unit) · 774081 = PNOZ 11 42 V AC / 24 V DC · screw terminals, 90 mm width |
|---|---|
| Scope of delivery | PNOZ 11 unit, screw terminals, DIN-rail mounting, operating instructions |
| Power supply | |
|---|---|
| Supply type | AC/DC |
| Nominal supply voltage | 24 V AC / 24 V DC |
| Voltage tolerance | −15 % / +10 % |
| Power consumption | ~4 VA (AC) / ~2 W (DC) |
| External fuse | 6 A slow / 10 A fast recommended |
| Inputs & outputs | |
|---|---|
| Safe inputs | 2 × channels, 24 V, PNP/NPN, with cross-fault detection |
| Safety outputs | 7 × N/O force-guided, 250 V AC / 6 A |
| Auxiliary output | 1 × N/C, signal |
| Semiconductor outputs | 2 × status (ready / run) |
| Feedback loop | Y1-Y2, max. 150 ms |
| Performance level | Up to PL e (EN ISO 13849-1) |
|---|---|
| Category | Up to Category 4 |
| SIL / SIL CL | Up to SIL 3 (IEC 61508) / SIL CL 3 (IEC 62061) |
| Reset types | Automatic / manual / monitored |
| Response time | Typ. ~20 – 30 ms |
|---|---|
| Diagnostic coverage | Up to 99 % |
| Sensor types | E-stop, safety gate, safety switch |
| Cross-fault monitoring | Yes, on dual-channel wiring |
| Dimensions W × H × D | 90 × 87 × 121 mm |
|---|---|
| Net weight | ~0.35 kg |
| Mounting | DIN rail 35 mm |
| Terminal type | Screw terminals |
| Degree of protection | IP20 terminals / IP40 housing |
| Ambient temperature, operation | −10 … +55 °C |
|---|---|
| Storage / transport | −25 … +70 °C |
| Relative humidity | ≤ 95 %, non-condensing |
| Vibration / shock | IEC 60068-2-6 / -2-27 |
| Overvoltage category / pollution | III / II, pollution degree 2 |
| Approvals / certifications | CE · cULus Listed · TÜV · EAC · CCC · UKCA |
|---|---|
| Functional safety standards | EN ISO 13849-1 (PL e / Cat. 4) · IEC 62061 (SIL CL 3) · IEC 61508 (SIL 3) |
| EMC standards | EN 61000-6-2 (immunity) · EN 61000-6-4 (emission) · EN 55011 |
| General standards | EN 60204-1 · EN 60947-5-1 · EN ISO 12100 |
