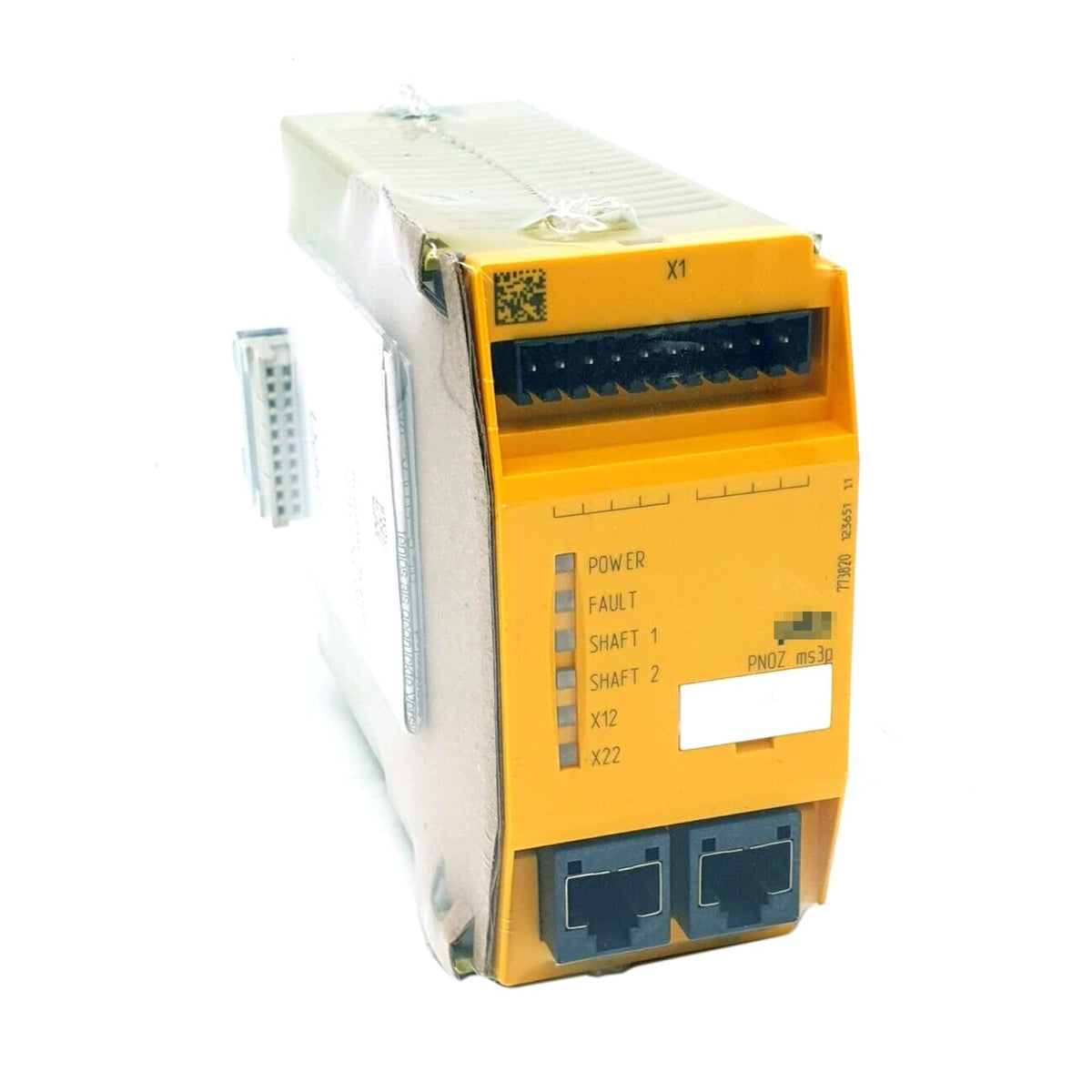

Pilz 773820 Safety Relay

SKU: 773820
(0)
$1,926.42
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056
773820 — 773820 - PNOZ ms3p Speed & Standstill Monitor
PNOZmulti classic | configurable safety system | speed / standstill monitor

773820 — PNOZ ms3p Speed & Standstill Monitor

Failsafe expansion module · motion monitoring of 2 axes · 2 incremental encoder inputs · Sin/Cos, TTL (RS422) or HTL (24 V) · RJ45

Type: speed monitor Axes monitored: 2 Encoder inputs: 2 incremental Signal: Sin/Cos, TTL, HTL Connector: RJ45, 8-pin Safety: PL e / Cat. 4 / SIL CL 3

Overview & Function

The Pilz 773820 (PNOZ ms3p) is a failsafe speed/standstill monitoring expansion module for the PNOZmulti classic configurable safety system. It safely monitors the motion of up to 2 axes via two incremental encoder inputs, supporting Sin/Cos, TTL (RS422) and HTL (24 V) encoder signals. It is used for safe standstill, speed and direction monitoring on presses, drives and axes.

Supplied by SHLY-PLC, an independent industrial-automation distributor. Brand and model are used for identification only; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Key Ratings at a Glance

Axes monitored
2
Encoder inputs
2 incremental
Encoder types
Sin/Cos, TTL (RS422), HTL
Connector
RJ45 8-pin female
Supply voltage
24 V DC
Width
22.5 mm
Max monitors
4 per base unit
Safety rating
PL e / Cat. 4

I/O Channel Map & Safety Function

2
Encoder IN
Incremental encoder inputs, differential; Sin/Cos, TTL (RS422) or HTL (24 V)
2
Axes
Safe motion / speed / standstill monitoring per axis
1
Base bus
Internal expansion bus to the PNOZmulti base unit
1
Status
LEDs for supply, encoder and fault states
Safety performance: up to PL e (EN ISO 13849-1), Category 4 and SIL CL 3 (IEC 62061) for speed / standstill / direction monitoring. Up to 4 speed monitor modules can be connected to one base unit; an adapter cable is required for the encoders.

Order Number Breakdown

773820

773PNOZmulti classic motion family
820PNOZ ms3p - speed monitor, 2 axes, 2 incremental encoder inputs
Function Safe standstill / speed / direction monitoring of 2 axes
Encoder support Sin/Cos, TTL (RS422) and HTL (24 V) incremental encoders
Scope of delivery Monitor module; encoder adapter cable ordered separately

Power Supply & I/O Data

Power supply
Supply type DC
Nominal supply voltage 24 V DC
Encoder supply Per connected encoder type (TTL/RS422, HTL 24 V, Sin/Cos)
Diagnostics LED status indicators
Inputs & outputs
Encoder inputs 2 x incremental, differential, RJ45 8-pin female
Supported signals Sin/Cos, TTL (RS422), HTL (24 V)
Monitored quantities Speed, standstill, direction of up to 2 axes
Configuration PNOZmulti Configurator

Safety Characteristics

Performance level (PL) Up to PL e (EN ISO 13849-1)
Category Up to Category 4
SIL / SIL CL Up to SIL CL 3 (IEC 62061) / SIL 3 (IEC 61508)
PFH Configuration-dependent; see Configurator report
Operation Configured via PNOZmulti Configurator; mounted on base unit bus
Configuration position Set in the Configurator; terminator fitted to last module
Sensor / load connection Per module I/O channel map
Diagnostics LEDs for supply, input and output states

Mechanical & Environmental Data

Dimensions W x H x D 22.5 x 94 x 121 mm
Net weight approx. 0.15 ... 0.25 kg (model-dependent)
Mounting DIN rail (35 mm), snapped onto the base unit / rail
Terminal type Plug-in; screw or spring-loaded terminal set ordered separately
Degree of protection IP20 (installed in cabinet)
Ambient temperature, operation 0 ... +60 °C
Ambient temperature, storage / transport -20 ... +70 °C
Relative humidity ≤ 95 %, non-condensing
Vibration / shock Per IEC 60068-2-6 / IEC 60068-2-27
Housing material PPO / ABS, UL 94 V-0

Compliance, Approvals & Standards

Approvals / certifications CE · cULus Listed · TÜV · BG / BG-PRÜF · EAC (Eurasian) · KOSHA · KCC · UKCA
Functional safety standards EN ISO 13849-1 (PL e / Cat. 4) · IEC 62061 (SIL CL 3) · IEC 61508 (SIL 3)
EMC standards EN 61000-6-2 (immunity) · EN 61000-6-4 (emission) · EN 55011
General standards EN 60204-1 · EN ISO 12100 · IEC 60364

Warranty

12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

773820 · PNOZ ms3p · PNOZmulti classic · safe speed/standstill monitor · 2 axes · 2 incremental encoders (Sin/Cos, TTL, HTL) · RJ45 · PL e / Cat. 4 / SIL CL 3 · Independently supplied by SHLY-PLC
