Passive 4-way junction / distribution box for PSENcode, PSENslock and PSENini safety sensors · field-wiring IP67 box

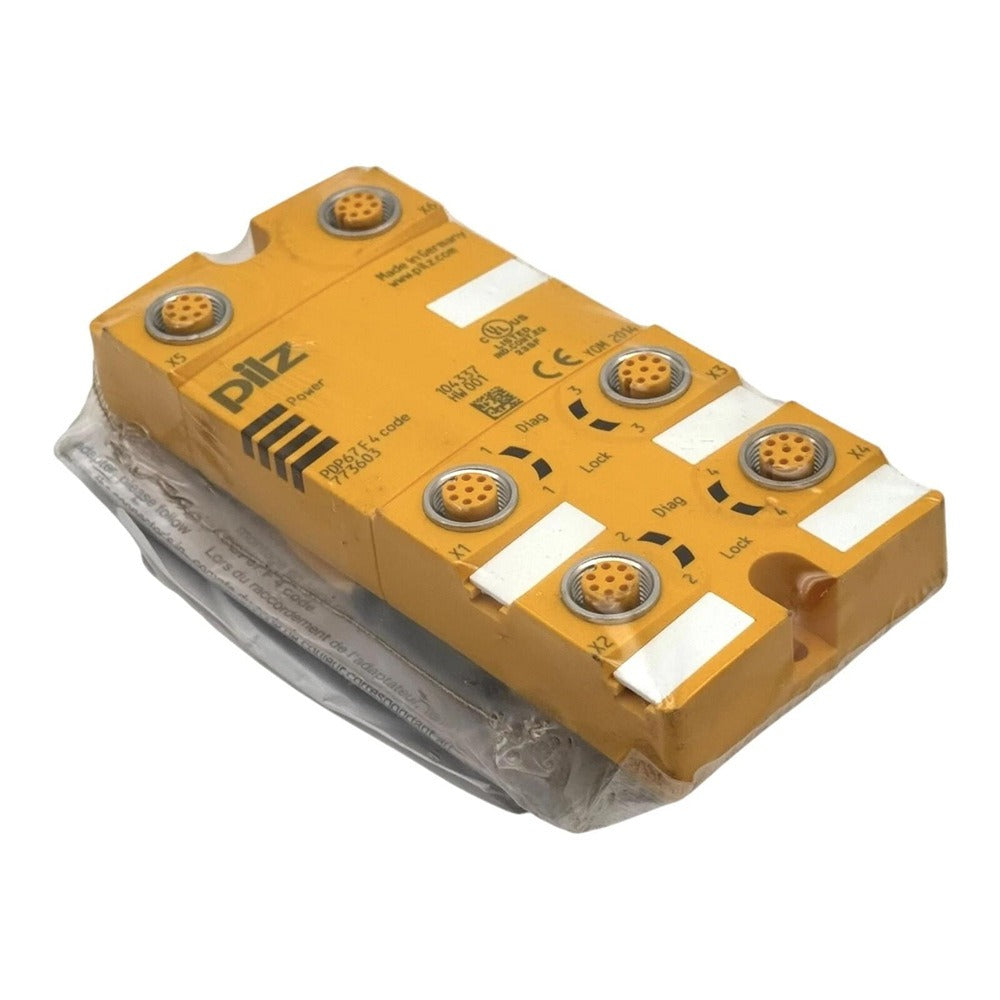

The Pilz 773603 (PDP67 F 4 code) is a passive junction / distribution box used to wire up to four Pilz coded safety sensors (PSENcode, PSENslock or PSENini) on the PDP67 field bus. As a passive junction it carries the sensor supply and signal wiring out to the safety switches and back to the decentralised PDP67 input station, simplifying field cabling on safety gates and guard doors.
Supplied by SHLY-PLC, an independent industrial-automation distributor. Brand and model are used for identification only; this listing is not affiliated with, sponsored or endorsed by the manufacturer.
773603
| For use with | PSENcode, PSENslock and PSENini coded safety sensors |
|---|---|
| Requires | A PDP67 decentralised input station on the PDP-Link |
| Scope of delivery | Passive junction box; cables ordered separately |
| Power supply | |
|---|---|
| Type | Passive junction / distribution box (no active electronics) |
| Supply | Pass-through of sensor supply from the PDP67 station |
| Signals | Carries coded-sensor signal wiring |
| Diagnostics | No active LEDs (passive device) |
| Inputs & outputs | |
|---|---|
| Sensor connections | Up to 4 coded safety sensor drops |
| Outputs | None (passive) |
| System interface | PDP67 field bus to input station |
| Configuration | None - passive wiring accessory |
| Safety rating | Evaluated by the connected PNOZmulti (up to PL e / Cat. 4 / SIL CL 3) |
|---|---|
| Active function | None - passive distribution only |
| Type | Passive junction box |
| PFH | Determined by the safety circuit, not this passive device |
| Use | Simplifies field cabling of multiple coded safety sensors |
|---|---|
| Compatible sensors | PSENcode, PSENslock, PSENini |
| Mounting | Field / guard-door mounting |
| Diagnostics | Via the connected PNOZmulti system |
| Housing | IP67 field distribution box |
|---|---|
| Degree of protection | IP67 |
| Mounting | Direct on machine / guard |
| Type | Passive junction |
| Ambient temperature | 0 ... +60 °C |
| Ambient temperature, operation | 0 ... +60 °C |
|---|---|
| Ambient temperature, storage / transport | -20 ... +70 °C |
| Relative humidity | ≤ 95 %, non-condensing |
| Vibration / shock | Per IEC 60068-2-6 / IEC 60068-2-27 |
| Housing material | PPO / ABS, UL 94 V-0 |
| Approvals / certifications | CE · cULus Listed · TÜV · BG / BG-PRÜF · EAC (Eurasian) · KOSHA · KCC · UKCA |
|---|---|
| Functional safety standards | EN ISO 13849-1 (PL e / Cat. 4) · IEC 62061 (SIL CL 3) · IEC 61508 (SIL 3) |
| EMC standards | EN 61000-6-2 (immunity) · EN 61000-6-4 (emission) · EN 55011 |
| General standards | EN 60204-1 · EN ISO 12100 · IEC 60364 |
