Decentralised safe digital input station · 8 safe inputs · IP67 protection · connected via PDP-Link to PNOZmulti

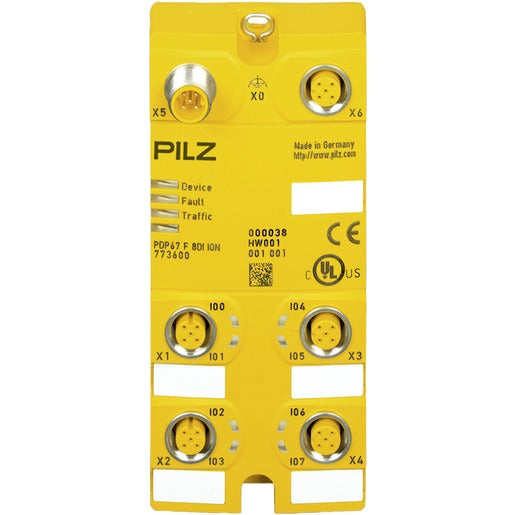

The Pilz 773600 (PDP67 F 8DI ION) is a decentralised, field-mount safe input module from the PDP67 series. It provides 8 safe digital inputs in an IP67 housing, mounting directly on or near the machine so that sensor cables run only a short distance. It is connected back to the cabinet PNOZmulti via a PDP-Link module (such as the PNOZ m EF PDP Link) using a single bus cable.
Supplied by SHLY-PLC, an independent industrial-automation distributor. Brand and model are used for identification only; this listing is not affiliated with, sponsored or endorsed by the manufacturer.
773600
| Sibling stations | 773600 = PDP67 F 8DI ION (this unit) - 773614 = related variant |
|---|---|
| Requires | A PNOZ m EF PDP Link module in the cabinet (e.g. 772121) |
| Scope of delivery | Field input station; PDP-Link cable and connector ordered separately |
| Power supply | |
|---|---|
| Supply | Via the PDP-Link bus |
| Input voltage | 24 V DC (PNP sensors) |
| Diagnostics | Local channel / status LEDs |
| Mounting | Field / machine mounting (IP67) |
| Inputs & outputs | |
|---|---|
| Safe digital inputs | 8 x DI (ION), for safe sensors |
| Outputs | None - input station only |
| System interface | PDP-Link to PNOZ m EF PDP Link |
| Configuration | PNOZmulti Configurator |
| Performance level (PL) | Up to PL e (EN ISO 13849-1) |
|---|---|
| Category | Up to Category 4 |
| SIL / SIL CL | Up to SIL CL 3 (IEC 62061) / SIL 3 (IEC 61508) |
| PFH | Configuration-dependent; see Configurator report |
| Operation | Configured via PNOZmulti Configurator; mounted on base unit bus |
|---|---|
| Configuration position | Set in the Configurator; terminator fitted to last module |
| Sensor / load connection | Per module I/O channel map |
| Diagnostics | LEDs for supply, input and output states |
| Housing | IP67 field housing |
|---|---|
| Degree of protection | IP67 |
| Mounting | Direct on machine / armouring |
| Connection | PDP-Link bus connector |
| Ambient temperature | 0 ... +60 °C |
| Ambient temperature, operation | 0 ... +60 °C |
|---|---|
| Ambient temperature, storage / transport | -20 ... +70 °C |
| Relative humidity | ≤ 95 %, non-condensing |
| Vibration / shock | Per IEC 60068-2-6 / IEC 60068-2-27 |
| Housing material | PPO / ABS, UL 94 V-0 |
| Approvals / certifications | CE · cULus Listed · TÜV · BG / BG-PRÜF · EAC (Eurasian) · KOSHA · KCC · UKCA |
|---|---|
| Functional safety standards | EN ISO 13849-1 (PL e / Cat. 4) · IEC 62061 (SIL CL 3) · IEC 61508 (SIL 3) |
| EMC standards | EN 61000-6-2 (immunity) · EN 61000-6-4 (emission) · EN 55011 |
| General standards | EN 60204-1 · EN ISO 12100 · IEC 60364 |
