Configurable safety controller for press applications · 20 safe digital inputs · 4 semiconductor + 2 relay safe outputs · 2 Ethernet ports · expandable · 24 V DC

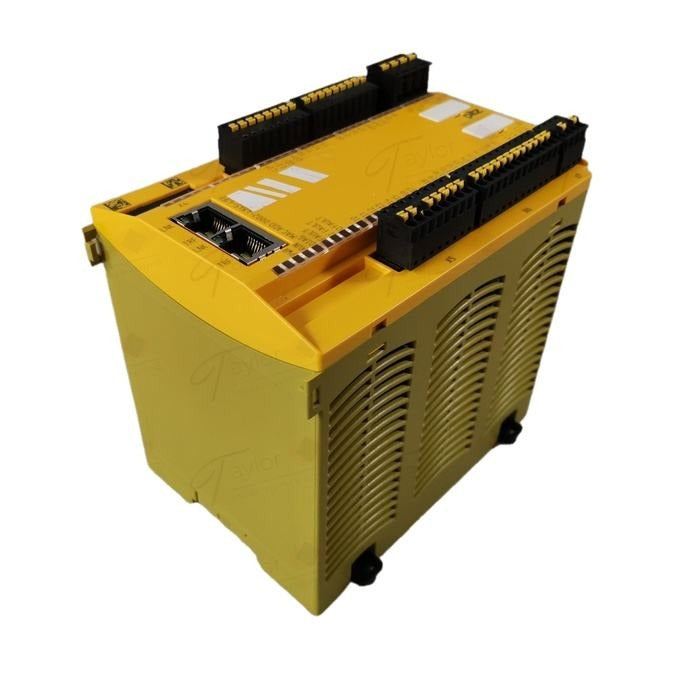

The Pilz 773123 (PNOZ m2p ETH) is the expandable base unit of the PNOZmulti classic configurable safety system designed for mechanical-press applications. It provides the same 20 safe inputs, 4 semiconductor and 2 relay safe outputs as the m1p, plus two integrated Ethernet RJ45 ports, and is configured graphically with the PNOZmulti Configurator. Up to 8 expansion modules can be added for additional I/O, motion monitoring or fieldbus communication.
Supplied by SHLY-PLC, an independent industrial-automation distributor. Brand and model are used for identification only; this listing is not affiliated with, sponsored or endorsed by the manufacturer.
773123
| Sibling base units | 773120 = PNOZ m2p (press, no Ethernet) - 773123 = PNOZ m2p ETH (this unit) |
|---|---|
| Compatible expansion modules | PNOZ m EF series, up to 8 per base unit; ordered separately |
| Scope of delivery | Base unit; terminal sets, chip card and PNOZmulti Configurator ordered separately |
| Power supply | |
|---|---|
| Supply type | DC |
| Nominal supply voltage | 24 V DC |
| Tolerance | -15 % / +20 % |
| Power consumption | 8 ... 28 W (depending on configuration and load) |
| Fusing | External 6 A slow-blow recommended |
| Inputs & outputs | |
|---|---|
| Safe digital inputs | 20 x DI, 24 V DC, PNP, single- or dual-channel |
| Test pulse outputs | 4 x, for sensor supply and cross-fault detection |
| Safe semiconductor outputs | 4 x OSSD, 24 V DC, 0.5 A each (short-circuit proof) |
| Safe relay outputs | 2 x N/O force-guided contacts |
| Ethernet | 2 x RJ45 autosensing switch, 10/100 Mbit/s |
| Performance level (PL) | Up to PL e (EN ISO 13849-1) |
|---|---|
| Category | Up to Category 4 |
| SIL / SIL CL | Up to SIL CL 3 (IEC 62061) / SIL 3 (IEC 61508) |
| PFH (per safety circuit) | Configuration-dependent; see Configurator report |
| Response time | Configuration-dependent |
|---|---|
| Diagnostic coverage | Up to 99 % (depending on sensor type and wiring) |
| Sensor types supported | E-stop, safety gate, light curtain, two-hand, mat, enable switch |
| Configuration tool | PNOZmulti Configurator |
| Dimensions W x H x D | 135 x 94 x 121 mm |
|---|---|
| Net weight | 0.499 kg (approx. 1.1 lb) |
| Mounting | DIN rail (35 mm), horizontal mounting position |
| Terminal type | Screw terminal and spring-loaded terminal (ordered as a set) |
| Degree of protection | IP20 (installed in cabinet) |
| Ambient temperature, operation | 0 ... +60 °C |
|---|---|
| Ambient temperature, storage / transport | -20 ... +70 °C |
| Relative humidity | ≤ 95 %, non-condensing |
| Vibration / shock | Per IEC 60068-2-6 / IEC 60068-2-27 |
| Altitude | Up to 2000 m without derating |
| Approvals / certifications | CE · cULus Listed · TÜV · BG / BG-PRÜF · EAC (Eurasian) · KOSHA · KCC · UKCA |
|---|---|
| Functional safety standards | EN ISO 13849-1 (PL e / Cat. 4) · IEC 62061 (SIL CL 3) · IEC 61508 (SIL 3) |
| EMC standards | EN 61000-6-2 (immunity) · EN 61000-6-4 (emission) · EN 55011 |
| General standards | EN 60204-1 · EN ISO 12100 · IEC 60364 |
