Transponder-based safety gate system · magnetic guard locking · 24 V DC · 2 semiconductor safety outputs · IP54/IP65 · switch unit

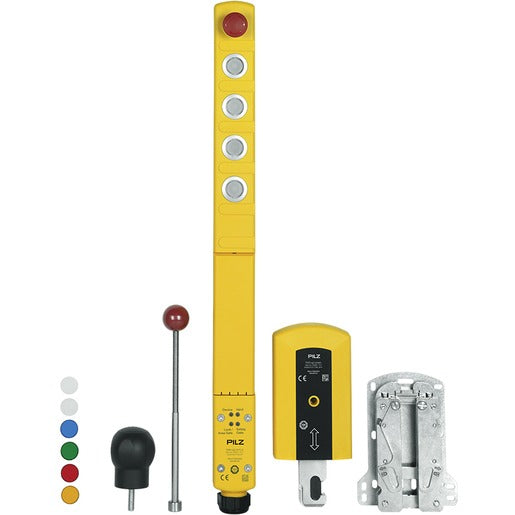

The Pilz 570801 (PSEN sg2c-3LPE switch) is a transponder-based safety gate system from the PSENsgate family. It combines safe gate monitoring, a magnetic guard locking and integrated operator elements in one compact unit. The -3LPE switch version provides safe position monitoring with process-protection locking for swing and sliding gates. It operates from 24 V DC and is used to safeguard movable guards on packaging, machine-tool and general production equipment.
Supplied by SHLY-PLC, an independent industrial-automation distributor. Brand and model are used for identification only; this listing is not affiliated with, sponsored or endorsed by the manufacturer.
570801
| Sibling models | 570800 = sg2c-3L?? unit · 570802 = PSEN sg2c-3LBE unit · 570804 = sg2c variant |
|---|---|
| Actuator | PSEN ml transponder actuator, ordered separately |
| Scope of delivery | 1 switch unit; actuator and cable ordered separately |
| Power supply | |
|---|---|
| Nominal supply voltage | 24 V DC |
| Type | Continuous magnetic guard locking |
| Rated insulation voltage | 30 V |
| Connection | Per device wiring terminals |
| I/O | |
|---|---|
| Safety outputs | 2 x semiconductor |
| Signal output | 1 x |
| Guard locking | Magnetic, process protection |
| Sensor principle | Transponder, coded |
| Performance level (PL) | Up to PL e (EN ISO 13849-1) |
|---|---|
| Category | Up to Category 4 |
| SIL / SIL CL | Up to SIL CL 3 (IEC 62061) |
| Coding (EN ISO 14119) | Coded transponder |
| Guard locking | Magnetic, process protection |
|---|---|
| Holding force (bolt) | Up to 1000 N |
| Restart | Monitored reset / interlock |
| Use | Swing / sliding safety gates |
| System | PSEN sg2c gate system |
|---|---|
| Degree of protection | IP54 / IP65 |
| Mounting | Gate / profile |
| Housing | Plastic |
| Ambient temperature, operation | Per device data sheet |
|---|---|
| Vibration / shock | Per EN 60068-2 series |
| Approvals | CE, TÜV |
| Actuator | PSEN ml transponder (separate) |
| Approvals / certifications | CE · EAC (Eurasian) · TÜV · cULus Listed · UKCA |
|---|---|
| Functional safety standards | EN ISO 13849-1 (PL e / Cat. 4) · IEC 62061 (SIL CL 3) · IEC 61508 · EN ISO 14119 · EN 60947-5-3 |
| EMC standards | EN 61000-6-2 (immunity) · EN 61000-6-4 (emission) |
| General standards | EN 60204-1 · EN ISO 12100 |
