Magnetic safety gate system · 500 N guard locking · 2 OSSD + 1 signal · M12 8-pin · IP67 · sensor only (1switch)

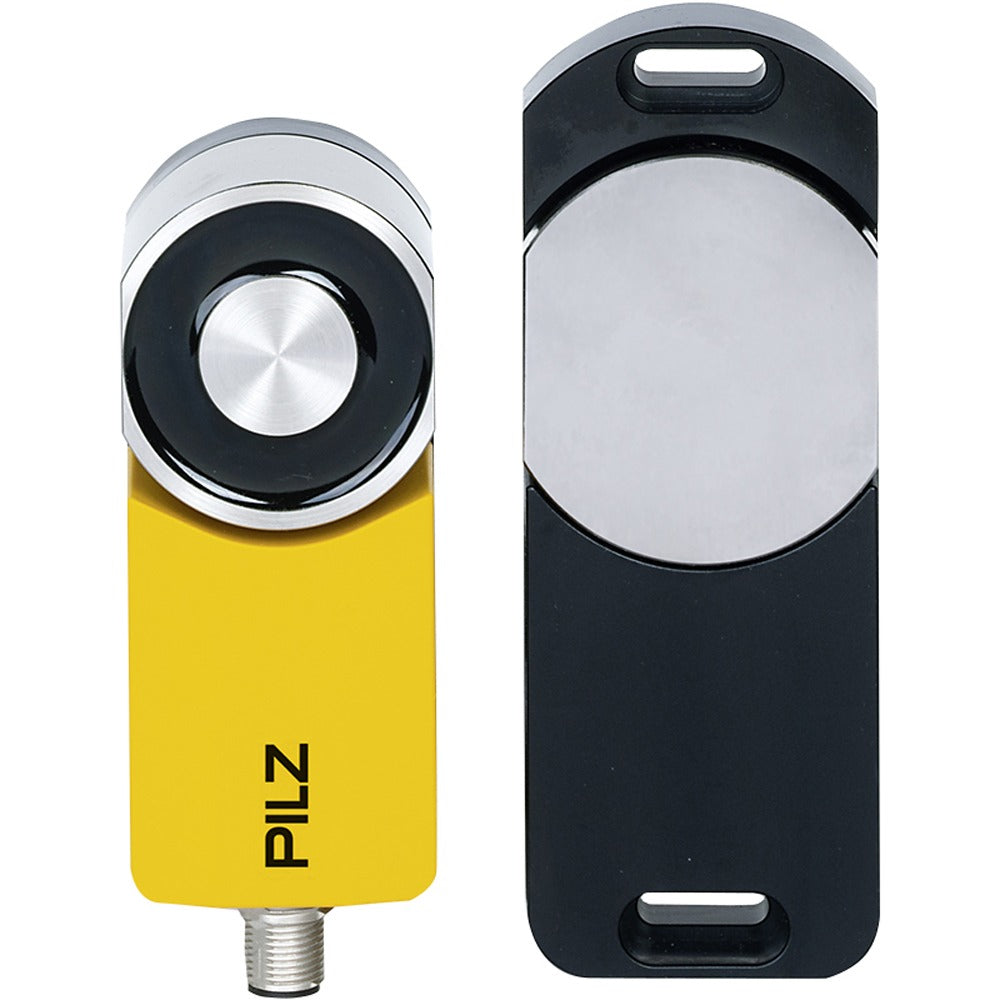

The Pilz 570510 (PSEN sl-0.5p 1.1 1switch) is the sensor-only version of the PSENslock 0.5 magnetic safety gate system. It provides safe position monitoring plus a 500 N magnetic guard locking in one compact device, with two OSSD safety outputs, one signal output and two series-connection inputs on an 8-pin M12 connector. Supplied without the actuator, it is used to extend a PSENslock installation or as a replacement sensor head.
Supplied by SHLY-PLC, an independent industrial-automation distributor. Brand and model are used for identification only; this listing is not affiliated with, sponsored or endorsed by the manufacturer.
570510
| Sibling models | 570500 = sl-0.5p 1.1 / sl-0.5 1unit (sensor + actuator) · 570520 = PSEN sl-0.5 actuator only |
|---|---|
| Required actuator | PSEN sl-0.5 standard actuator (order no. 570520) |
| Scope of delivery | 1 sensor head only; actuator and M12 cable ordered separately |
| Power supply | |
|---|---|
| Nominal supply voltage | 24 V DC |
| Power consumption | 4.8 W (gate locked) |
| Max. output current | 500 mA per OSSD |
| Connection | M12, 8-pin male |
| I/O | |
|---|---|
| Safety outputs | 2 x OSSD semiconductor |
| Signal output | 1 x PNP, 500 mA max. |
| Safety inputs | 2 x (series connection) |
| Guard-lock input | 1 x (magnet on/off) |
| Status | 4 LEDs |
| Performance level (PL) | Up to PL e (EN ISO 13849-1) |
|---|---|
| Category | Up to Category 4 |
| SIL / SIL CL | Up to SIL CL 3 (IEC 62061) |
| Coding (EN ISO 14119) | Coded (low) |
| Holding force | 500 N (process protection) |
|---|---|
| Vertical / lateral offset | +/- 3 / +/- 5 mm |
| Series connection | With PSENslock / PSENsgate / PSENcode |
| Mounting | 45 mm profiles |
| Sensor dimensions | 122 x 45 x 44 mm (H x W x D) |
|---|---|
| Degree of protection | IP67 |
| Housing material | Plastic |
| Mounting | 45 mm profiles |
| Ambient temperature, operation | -10 … +55 °C |
|---|---|
| Vibration / shock | Per EN 60068-2 series |
| Actuator | PSEN sl-0.5 (ordered separately, 570520) |
| Net weight | Approx. 0.7 kg (sensor head) |
| Approvals / certifications | CE · EAC (Eurasian) · TÜV · cULus Listed · UKCA |
|---|---|
| Functional safety standards | EN ISO 13849-1 (PL e / Cat. 4) · IEC 62061 (SIL CL 3) · IEC 61508 · EN ISO 14119 · EN 60947-5-3 |
| EMC standards | EN 61000-6-2 (immunity) · EN 61000-6-4 (emission) |
| General standards | EN 60204-1 · EN ISO 12100 |
