RFiD coded safety switch · 2 safe semiconductor outputs · 5-pin M12 connector · without actuator · 24 V DC

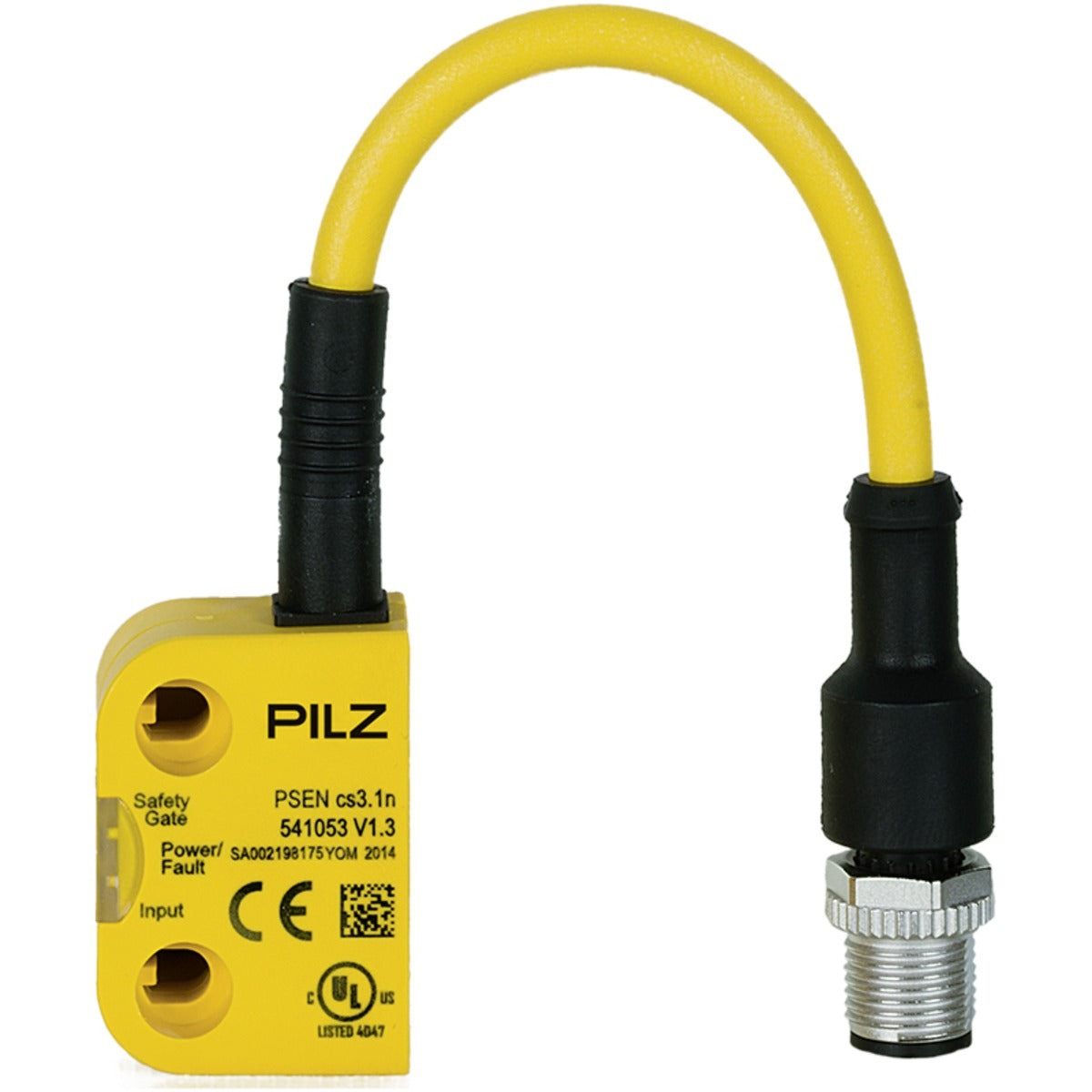

The Pilz 541053 (PSEN cs3.1n 1 switch) is the compact coded safety switch without actuator. It provides two safe OSSD semiconductor outputs and two series-connectable safe inputs, and pairs with an approved PSEN cs3.1 or PSEN cs1.1 actuator to monitor movable guards up to PL e / Category 4 / SIL CL 3.
Supplied by SHLY-PLC, an independent industrial-automation distributor. Brand and model are used for identification only; this listing is not affiliated with, sponsored or endorsed by the manufacturer.
541053
| Scope of delivery | PSEN cs3.1n coded switch, 5-pin M12 male, without actuator |
|---|---|
| Required actuator | PSEN cs3.1 (order 541080) or PSEN cs1.1 (order 540080), ordered separately |
| Power supply | |
|---|---|
| Nominal supply voltage | 24 V DC |
| Tolerance | −20 % / +20 % |
| Power consumption | Approx. 1 W |
| Inputs & outputs | |
|---|---|
| Safe OSSD outputs | 2 ×, 100 mA each, breaking capacity 2.4 W |
| Safe inputs | 2 ×, 24 V DC, series-connectable |
| Connection | M12, 5-pin male connector |
| Performance level (PL) | Up to PL e (EN ISO 13849-1) |
|---|---|
| Category | Up to Category 4 |
| SIL / SIL CL | Up to SIL CL 3 (IEC 62061) / SIL 3 (IEC 61508) |
| Coding level (EN ISO 14119) | Low (coded transponder) |
| Sensor principle | Transponder (RFiD), 122 kHz – 128 kHz |
|---|---|
| Design type (EN ISO 14119) | Type 4 |
| Classification (EN 60947-5-3) | PDDB |
| Response / risk time | Risk time 260 ms (per EN 60947-5-3) |
| Dimensions H×W×D | 37 × 26 × 18 mm |
|---|---|
| Housing material | PBT, yellow |
| Net weight | 38 g (gross 54 g) |
| Max. fixing torque | 0.8 Nm |
| Ambient temperature | −25 … +70 °C |
|---|---|
| Degree of protection | IP6K9K housing · IP67 connector |
| Overvoltage category | III · Pollution degree 3 |
| Rated insulation voltage | 75 V |
| Approvals / certifications | CE · cULus Listed · EAC (Eurasian) · TÜV · UKCA · FCC · IC |
|---|---|
| Functional safety standards | EN ISO 13849-1 (PL e / Cat. 4) · IEC 62061 / EN 602061 (SIL CL 3) · IEC 61508 (SIL 3) · EN ISO 14119 (code-level interlocking) · EN 60947-5-3 (PDDB) |
| EMC standards | EN 60947-5-3 · industrial electromagnetic environment |
| General standards | EN 60204-1 · EN ISO 12100 · RoHS 2011/65/EU |
