Pre-assembled connecting cable · PUR yellow RAL1003 · M12 8-pin female straight to open ends · drag-chain suitable · 5 m

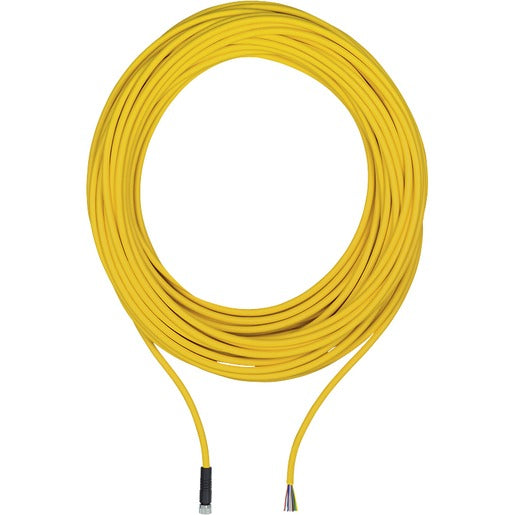

The Pilz 540320 (PSEN cable axial M12 8-pole, 5 m) is a pre-assembled connecting cable for PSENcode and related Pilz sensors. One end is a straight M12 8-pin female (socket) connector; the other end is open for field wiring. The flexible PUR yellow jacket is suitable for energy-chain (drag-chain) use.
Supplied by SHLY-PLC, an independent industrial-automation distributor. Brand and model are used for identification only; this listing is not affiliated with, sponsored or endorsed by the manufacturer.
This axial (straight) cable mates an M12 8-pin female socket on the sensor side with open, individually prepared wire ends at the evaluation end. The PUR jacket is oil- and abrasion-resistant and suited to repeated flexing in cable carriers. It is used to wire PSEN cs-series coded safety switches to a safe evaluation device or junction.
540320
| Cable type | PSEN cable axial M12 8-pole |
|---|---|
| Length | 5 m |
| Connector | M12, 8-pin female, straight (socket) to open cable end |
| Cable length | 5 m |
|---|---|
| Jacket | PUR, yellow RAL1003 |
| Conductor cross-section | 8 × 0.14 mm² |
| Silicone-free | Yes |
| Ambient temperature, flexing | −25 … +70 °C |
|---|---|
| Mounting | Drag-chain / energy-chain suitable |
| Coding | A-coded M12 |
| Approvals | cULus Listed |
| Approvals / certifications | CE · cULus Listed · EAC (Eurasian) · TÜV · UKCA · FCC · IC |
|---|---|
| Functional safety standards | EN ISO 13849-1 (PL e / Cat. 4) · IEC 62061 / EN 602061 (SIL CL 3) · IEC 61508 (SIL 3) · EN ISO 14119 (code-level interlocking) · EN 60947-5-3 (PDDB) |
| EMC standards | EN 60947-5-3 · industrial electromagnetic environment |
| General standards | EN 60204-1 · EN ISO 12100 · RoHS 2011/65/EU |
