Passive coded transponder actuator · for PSEN cs1.1 safety switches · coding level Low · no separate supply

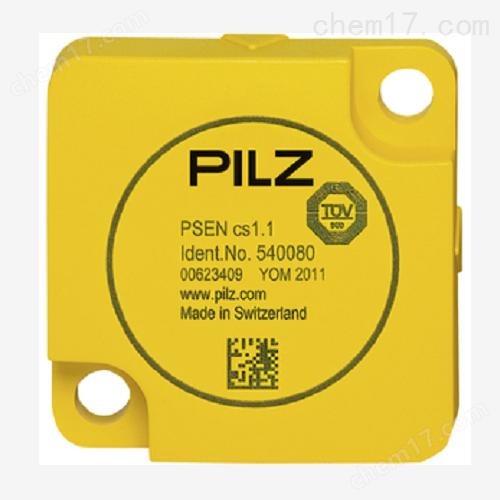

The Pilz 540080 (PSEN cs1.1 1 actuator) is the passive coded transponder actuator used with PSEN cs1.1 coded safety switches. It requires no separate power supply and is detected by the switch at an assured operating distance. It is permanently fixed to the moving guard with two screws and forms the actuating element of the safety function.
Supplied by SHLY-PLC, an independent industrial-automation distributor. Brand and model are used for identification only; this listing is not affiliated with, sponsored or endorsed by the manufacturer.
The actuator is a sealed PBT housing carrying the coded transponder. It is mounted opposite the switch sensing face; the arrows on the switch and actuator must face each other. It is fixed permanently with M5 screws (max. torque 1 Nm) and works with the PSEN cs1.1 family of safety switches.
540080
| Function | Coded passive actuator for PSEN cs1.1 (and compatible cs3.1) safety switches |
|---|---|
| Supply | None — powered inductively by the switch |
| Frequency | 122 kHz – 128 kHz |
| Dimensions H×W×D | 11 × 40 × 40 mm |
|---|---|
| Material | PBT, yellow |
| Weight | 20 g |
| Fixing torque | 1 Nm (M5 screws) |
| Ambient temperature | −25 … +70 °C |
|---|---|
| Degree of protection | IP6K9K |
| Humidity | 93 % r.h. at 40 °C |
| Vibration / shock | EN 60947-5-2 · 30 g, 18 ms |
| Approvals / certifications | CE · cULus Listed · EAC (Eurasian) · TÜV · UKCA · FCC · IC |
|---|---|
| Functional safety standards | EN ISO 13849-1 (PL e / Cat. 4) · IEC 62061 / EN 602061 (SIL CL 3) · IEC 61508 (SIL 3) · EN ISO 14119 (code-level interlocking) · EN 60947-5-3 (PDDB) |
| EMC standards | EN 60947-5-3 · industrial electromagnetic environment |
| General standards | EN 60204-1 · EN ISO 12100 · RoHS 2011/65/EU |
