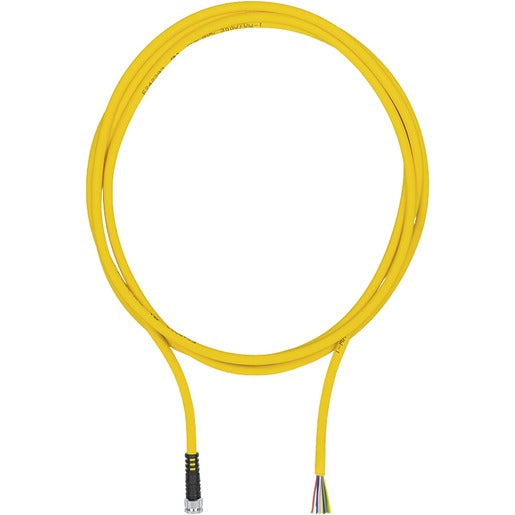

Pre-wired connection cable · M8 4-pin female straight connector · PUR yellow 5 m · open ends · for PSENmag safety switches
The Pilz 533121 (PSEN Kabel gerade / cable straight plug, 5 m) is a ready-made connection cable for PSENmag magnetic safety switches. It has a 4-pin M8 female straight connector on one end and open cable ends on the other, for direct wiring into a Pilz safety evaluation device or terminal box. The yellow PUR cable is oil- and abrasion-resistant for industrial use. It is used to connect M8-connector PSENmag switches (e.g. PSEN 1.1p, 1.2p, 2.1p series) to the control cabinet.
Supplied by SHLY-PLC, an independent industrial-automation distributor. Brand and model are used for identification only; this listing is not affiliated with, sponsored or endorsed by the manufacturer.
533121
| Related cables | 533111 = M8 female straight 2 m · 533120 = M8 female angled 5 m |
|---|---|
| Compatible sensors | PSENmag switches with M8 4-pin male connector (PSEN 1.1p, 1.2p, 2.1p series) |
| Scope of delivery | 1 connection cable, 5 m |
| Cable | |
|---|---|
| Connector | M8, 4-pin female, straight |
| Cable length | 5 m |
| Cable material | PUR, yellow |
| Core cross-section | 0.14 mm² (typical Li9Y11Y) |
| Electrical | |
|---|---|
| Rated voltage | 24 V DC (signal level) |
| Current per core | Per connected switch (≤ 0.5 A) |
| Use | Supply and reed-contact wiring |
| Other end | Open cable ends |
| Safety function | None — wiring accessory |
|---|---|
| Integrity | Part of safety circuit wiring |
| Max. cable run | Per evaluation-device wiring rules |
| Shielding | Not required for reed contacts |
| Pin-out | Per PSENmag wiring diagram |
|---|---|
| Colour code | Per Pilz sensor cable specification |
| Evaluation device | Pilz PNOZ X / PNOZsigma / PNOZmulti |
| Note | Order with sensor if a cable is needed |
| Connector | M8 4-pin female, straight |
|---|---|
| Cable outer sheath | PUR, yellow |
| Cable length | 5 m |
| Mounting | Cable gland / strain relief at cabinet |
| Ambient temperature, operation | -25 … +80 °C (cable, typical) |
|---|---|
| Oil resistance | PUR — good oil / coolant resistance |
| Torsion / flexing | Drag-chain suitable (PUR) |
| IP rating | IP67 when mated to sensor |
| Approvals | CE (as accessory to certified sensor system) |
|---|---|
| Compatibility | Pilz PSENmag M8 4-pin magnetic safety switches |
| Standards | EN 60204-1 wiring · EN 60947-5-3 system evaluation |
| Note | This listing is a connection cable, not a standalone safety device |
