Phoenix Contact · Wireless module

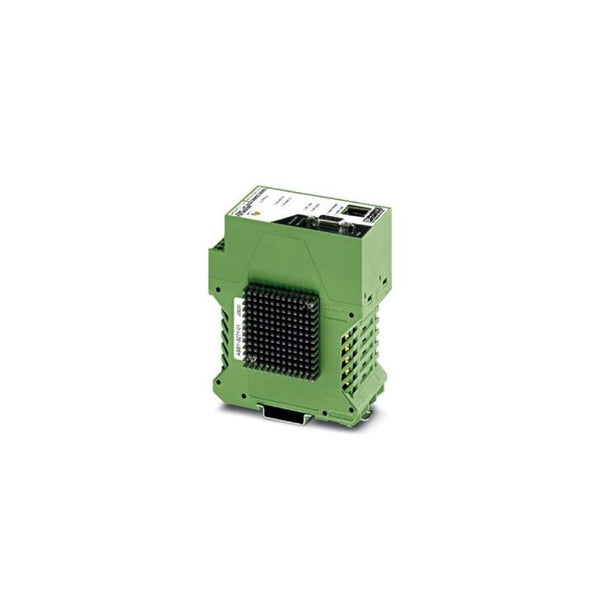

2900017 – RAD-ISM-900-EN-BD-BUS · Wireless module
The Phoenix Contact 2900017 (RAD-ISM-900-EN-BD-BUS) is a Wireless module in the Phoenix Contact range. The specification below is transcribed from the official Phoenix Contact product page for this order number, which publishes the technical data in 9 sections: Product properties, Electrical properties, Connection data, Interfaces, Dimensions, Material specifications and further sections.
Nominal voltage24 VÂ DC
Rated current250 mA (at 24Â VÂ DC)
Degree of protectionIP20
Ambient temperature-40 °C ... 65 °C
Dimensions52 mm
ConnectionScrew connection
How it works
Phoenix Contact keeps the values in the groups shown below, in the order the manufacturer publishes them: Product properties, Electrical properties, Connection data, Interfaces, Dimensions, Material specifications, Environmental and real-life conditions, Approvals, Mounting. The values are carried over unchanged from the official product page; nothing is added beyond what the manufacturer states for this order number.
Specifications
Product properties
Product typeWireless module
Electrical properties
Supply
Supply voltage24 VÂ DC
Supply voltage range11 VÂ DC ... 30 VÂ DC
Max. current consumption250 mA (at 24Â VÂ DC)
Connection data
Connection methodScrew connection
Stripping length8 mm
Conductor cross-section flexible0.2 mm² ... 2.5 mm²
Conductor cross-section rigid0.2 mm² ... 4 mm²
Cross section AWG24 ... 14
Screw threadM3
Interfaces
Serial: RS-232
Data rate300 ... 57,6 kBit/s
Connection methodD-SUB-9 female connector
File format/codingAsynchronous
Data flow control/protocolsRTS/CTS
Serial: RS-485
Connection methodCOMBICON plug-in screw terminal block
Wireless
DirectionBi-directional
Frequency900 MHz
Frequency range902 MHz ... 928 MHz
Transmission power1 W (adjustable in 1 dBm increments)
Transmit capacity, minimum10 dBm
Transmit capacity, maximum30 dBm
Functions
Operating modesbidirectional
Wireless
Frequency band900 MHz
Dimensions
Width52 mm
Height99 mm
Depth115 mm
Material specifications
Colorgreen
Housing materialPolyamide PA non-reinforced with aluminum heatsink
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP20
Ambient temperature (operation)-40 °C ... 65 °C
Ambient temperature (storage/transport)-40 °C ... 75 °C
Approvals
Conformity/Approvals
ConformanceFCC Directive, Part 15.247
ValueISC Directive RSS 210
UL, USA / CanadaClass I, Div. 2, Groups A, B, C, D
Mounting
Assembly noteon standard DIN rail NS 35 in accordance with EN 60715
Mounting positionany
Order number
2900017 — https://www.phoenixcontact.com/en-us/products/wireless-module-rad-ism-900-en-bd-bus-2900017
Official source
Phoenix Contact official product page, technical data section (EN-US); order number 2900017.
FAQ
What voltage does the 2900017 operate at?
Phoenix Contact gives a nominal voltage of 24 VÂ DC for this order number.
What degree of protection does the 2900017 have?
It is rated IP20, as stated in the official technical data.
What ambient temperature is permitted?
Phoenix Contact specifies an ambient temperature of -40 °C ... 65 °C.
What are the dimensions?
The technical data gives 52 mm.
How is the 2900017 connected?
Phoenix Contact specifies the connection as Screw connection.
What material is the housing made of?
The technical data lists Polyamide PA non-reinforced with aluminum heatsink.
