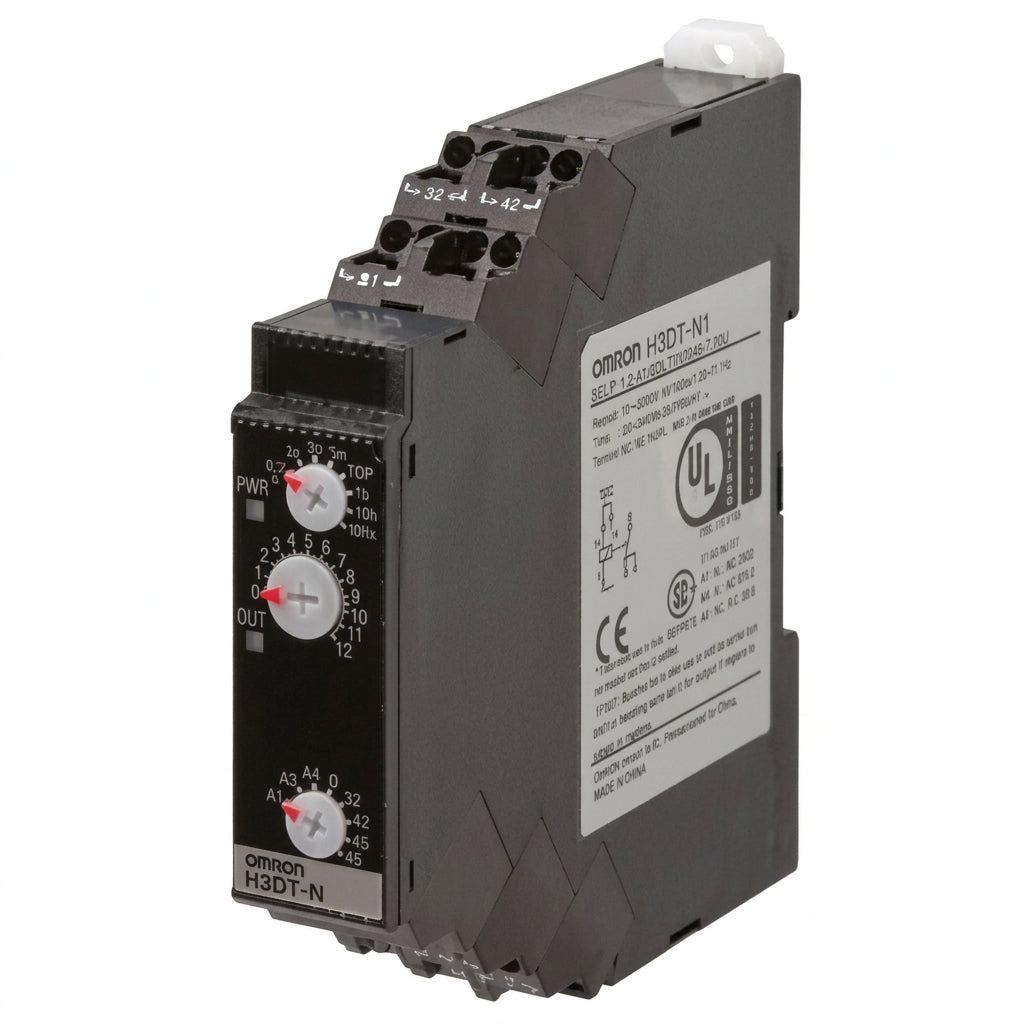

Omron H3DTHBSACDC2448 Timer Relay

SKU: H3DTHBSACDC2448
(0)
$115.88
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

Omron H3DT-HBS AC/DC24-48 Power OFF-delay Timer Relay, H3DTHBSACDC2448

The Omron H3DT-HBS AC/DC24-48 (H3DTHBSACDC2448) is DIN rail mount power OFF-delay timer relay belonging to Omron H3DT series. It features push-in terminals, analog time adjustment, SPDT relay output and wide 24–48V AC/DC universal power supply. Technical data sourced from official Omron datasheet. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit undergoes visual inspection and functional testing before shipment. Contact our team for compatibility verification.

Features

  • Order Code: H3DT-HBS AC/DC24-48 (Alias: H3DTHBSACDC2448)
  • Product Family: Omron H3DT Solid-state Timer Relay
  • Function Mode: Power OFF-delay (Instantaneous operation, time-limit reset)
  • Mounting: DIN 35 mm rail mounting, module width 17.5 mm
  • Supply Voltage: AC/DC 24~48V, allowable fluctuation 85~110% rated voltage, max ripple 20% for DC
  • Time Setting Range: 0.1 s ~ 12 s, two adjustable time scales (0.1–1.2s /1–12s)
  • Terminal Connection: Push-in spring terminals, fast wiring without screwdriver
  • Output Contact: SPDT (1 Form C) relay contact
  • Contact Rating: 5A @250V AC resistive load; 5A @30V DC resistive load
  • Power Consumption: Approx.1.0 VA @48V AC; approx.0.4 W @24V DC
  • LED Indicators: Power supply LED, timing status LED
  • Protection Class: IP20, for cabinet installation
  • Lifecycle: Active production
  • Typical Use: Conveyor, fan, pump, machine tool power-off delay control, automation cabinet timing logic

Specifications

Official Omron Datasheet Parameters

Technical Specifications
Catalog Number H3DT-HBS AC/DC24-48 (H3DTHBSACDC2448)
Timer Function Power OFF-Delay
Supply Voltage AC/DC 24 ~ 48V
Time Range 0.1 s ~ 12 s
Output Contact Type SPDT (1 Form C) Relay
Contact Rating 5A 250VAC / 5A 30VDC (Resistive load)
Module Width 17.5 mm
Terminal Type Push-in spring terminal
Power Consumption 1.0VA max @48V AC; 0.4W max @24V DC
Environmental Ratings
Operating Temperature -20°C ~ +60°C (non-freezing)
Storage Temperature -40°C ~ +70°C (non-freezing)
Relative Humidity 5% ~ 95% RH, Non-Condensing
Agency Certifications
Certifications CE, cULus

Compatibility & Cross-References

Omron H3DT-HBS AC/DC24-48 belongs to H3DT series off-delay timer. The long-range variant H3DT-HBL AC/DC24-48 covers 1~120s timing range as alternative model. Accessories: Y92A-D1A front protective cover. This listing is provided by an independent industrial automation distributor; brand names and part numbers are used for product identification only.

Applications

  • Power-off delay control for fans, pumps, conveyors and machine tools
  • Factory automation cabinet timing logic & sequential control
  • Packaging machinery, material handling, production line retrofit & spare replacement
  • Motor coast-down delay protection circuit

Warranty

  • Availability: Active production, new stock available, confirm stock before order.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery is about 5-8 business days, express shipping available, orders over $500 ship free.

Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: Omron part H3DT-HBS AC/DC24-48 is supplied by SHLY-PLC, an independent industrial automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: What is Omron H3DTHBSACDC2448?

A: It is Omron H3DT-HBS AC/DC24-48 DIN rail power OFF-delay timer relay with 0.1~12 seconds adjustable timing range and push-in terminals.

Q: What is the timing range?

A: 0.1s to 12s, two adjustable scales:0.1–1.2s and 1–12s.

Q: What contact rating?

A: SPDT relay output, 5A resistive load at 250VAC or 30VDC.

Q: What is the difference between H3DT-HBS and H3DT-HBL?

A: H3DT-HBS:0.1~12s; H3DT-HBL:1~120s, same supply voltage and form factor.
