Omron · CP-series compact PLC / extension

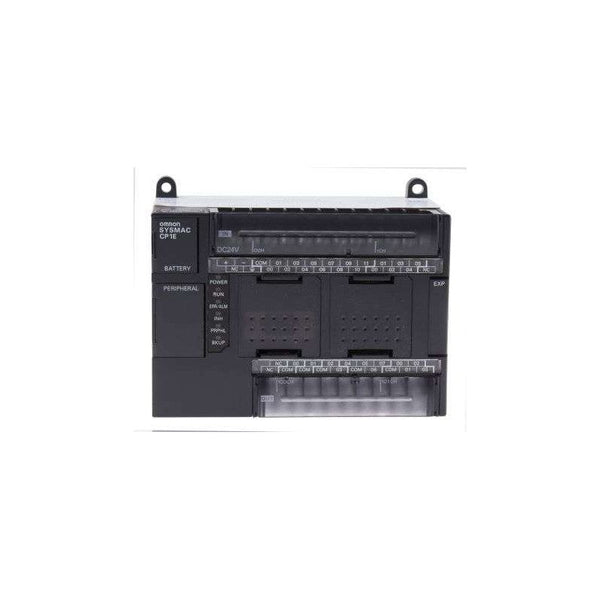

CP1E-N30DT1-D is an Omron PLC module with Output stage Transistor; Supply voltage 24 V DC (IEC 61131-2); Enclosure rating IP20 (IEC 60529). It is used in packaging machines, conveyor transfer cells, small process skids where the installed unit is matched to the original catalog number and a compact, documented part is required.
| Electrical | |
| Supply voltage | 24 V DC (IEC 61131-2) |
|---|---|
| I/O and communication | |
| Input type | DC |
| Output stage | Transistor |
| Mechanical | |
| Mounting | 35 mm DIN rail (IEC 60715) |
| Enclosure rating | IP20 (IEC 60529) |
| Environment and compliance | |
| Operating temperature | 0...+55 °C (IEC 60068-2-1) |
| Certifications | CE, UL, cULus |
Values follow the Omron CP-series compact PLC / extension specification for this catalog number; parameters not confirmed for this variant are omitted rather than estimated.
| Omron CP-series compact PLC / extension variants | |||
| Catalog number | Output stage | Supply voltage | |
|---|---|---|---|
| CP1E-N30DT1-D (this page) | Transistor | 24 V DC (IEC 61131-2) | |
| CP1E-N30DT-D | Transistor | 24 V DC (IEC 61131-2) | |
| CP1E-N30DR-A | Relay | 24 V DC (IEC 61131-2) | |
| CP1E-N30S1DR-A | Relay | 24 V DC (IEC 61131-2) | |
Before selecting an alternative, confirm its dimensions, terminals and installation requirements in the manufacturer documentation.
The CP1E-N30DT1-D is the device-level element in an Omron PLC module installation. It receives the field signals and control supply listed above — 24 V DC (IEC 61131-2) — and switches or conditions the load within the the rated ratings shown in the Specifications table. Wiring and protective devices are sized to those same numbers, not to a generic assumption.
Typical installations place it in packaging machines, conveyor transfer cells, small process skids, where the unit is matched to the original catalog number and the enclosure provides 35 mm DIN rail (IEC 60715) support. Record the catalog number and revision from the nameplate of the installed unit before specifying a like-for-like spare.
Omron CP1E-N30DT1-D — PLC / CPU module used as the device-level control core in an automation panel, handling logic, timing and communication tasks. The figures below are taken from the specification table on this page for catalog number CP1E-N30DT1-D; confirm the installed unit's part number and revision so the replacement matches both electrically and mechanically.
For a discontinued unit, match function and electrical ratings rather than the label alone.
Q.Before ordering CP1E-N30DT1-D, which certifications entry should be checked?
The certifications entry quoted above is CE, UL, cULus. Check the revision of the installed unit if the catalog number has been superseded.
Q.Where can I find the supply voltage data for CP1E-N30DT1-D?
It is listed in the specification table for Omron CP1E-N30DT1-D as 24 V DC (IEC 61131-2). Compare it with the nameplate of the installed unit before ordering.
Q.For CP1E-N30DT1-D, what does the specification table state about enclosure rating?
The specification table lists enclosure rating = IP20 (IEC 60529) for Omron CP1E-N30DT1-D. Confirm this figure against the unit currently in the panel.
Q.What should I include in an enquiry for CP1E-N30DT1-D?
Send the full catalog number CP1E-N30DT1-D, the required quantity and a photo of the nameplate. Stock, lead time and the applicable compliance documents can then be confirmed for Omron CP1E-N30DT1-D.
Q.How do I confirm compatibility of CP1E-N30DT1-D before ordering?
Match the catalog number CP1E-N30DT1-D and the specification values listed above against the installed unit, then confirm the firmware or hardware revision where a revision-sensitive part is involved.
