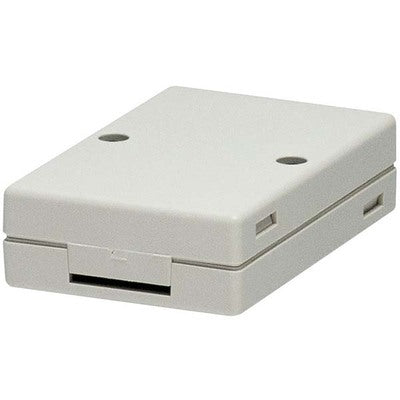

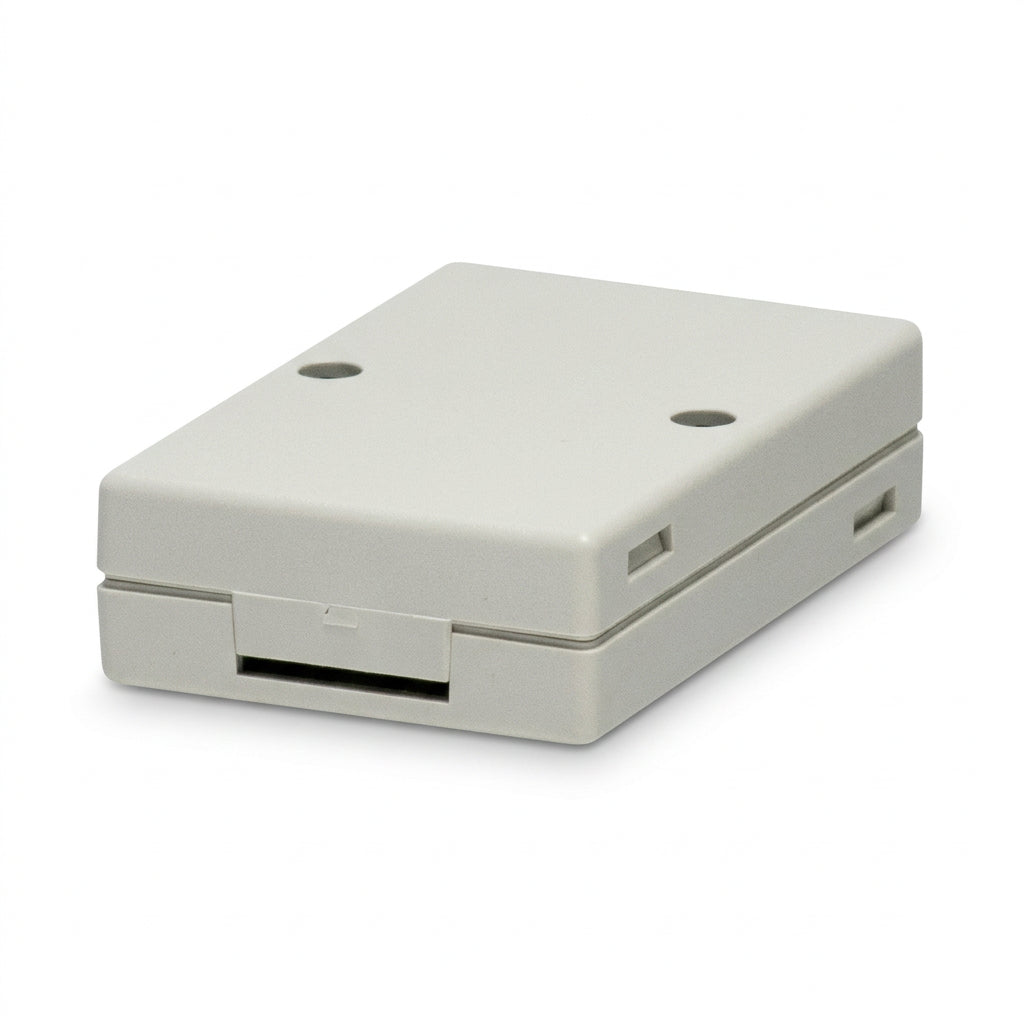

The Mitsubishi FX5-CNV-BC is a MELSEC iQ-F series connector conversion adapter, designed to connect extended extension cable (FX5-30EC / FX5-65EC) with extension cable-type I/O and intelligent modules. It acts as an intermediate connector adapter for remote expansion layout of FX5 PLC systems. Technical data sourced from Mitsubishi Electric hardware manual JY997D65401. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit undergoes visual inspection and functional testing before shipment for FX5 remote expansion system build and spare replacement projects. Contact our team for compatibility verification.
Technical parameters compiled from Mitsubishi Electric official hardware manual JY997D65401.
| Technical Specifications | |
| Catalog Number | FX5-CNV-BC |
| Product Type | PLC Connector / Cable |
| Compatible CPU | FX5U, FX5UC, FX5UJ; Not support FX5S |
| Max Quantity per System | 1 unit |
| Power Draw | No internal 5V backplane power consumed |
| Matching Extension Cable | FX5-30EC (3m), FX5-65EC (6.5m) |
| Weight | Approx. 40g |
| Environmental & Certifications | |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | -20 °C ~ +70 °C |
| Relative Humidity | 5% ~ 95% RH, non-condensing |
| Certifications | CE(EMC), CE(RoHS), KC, LR, NK, DNV, ABS, RINA, BV, KR |
The FX5-CNV-BC belongs to Mitsubishi MELSEC iQ-F series PLC conversion adapters. Related models: FX5-CNV-IF, FX5-CNV-IFC, FX5-CNV-BUS, FX5-CNV-BUSC. This adapter is used only between extended extension cable and cable-type expansion I/O/intelligent modules; not required for extension power supply module direct connection. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for product identification only.
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: FX5-CNV-BC is connector conversion adapter for MELSEC iQ-F FX5 PLC, used to link FX5-30EC / FX5-65EC long extended extension cable with cable type expansion I/O and intelligent modules for remote I/O layout.
A: FX5U, FX5UC, FX5UJ. FX5S CPU does NOT support FX5-CNV-BC. Maximum one unit can be installed in single PLC system.
A: FX5-CNV-BC: convert extended extension cable to cable-type expansion modules. FX5-CNV-IF: convert cable-type interface to connector-type expansion modules.
FX5-CNV-BC · Technical reference data · Independently supplied by SHLY-PLC
| converted_model | FX5-CNV-BC |
| series | MELSEC iQ-F |
| purpose | Adapts the connector of an extended extension cable used between modules of extension-cable type; connected between extended extension cable and extension-cable-type module |
Source: datasheet / product page
