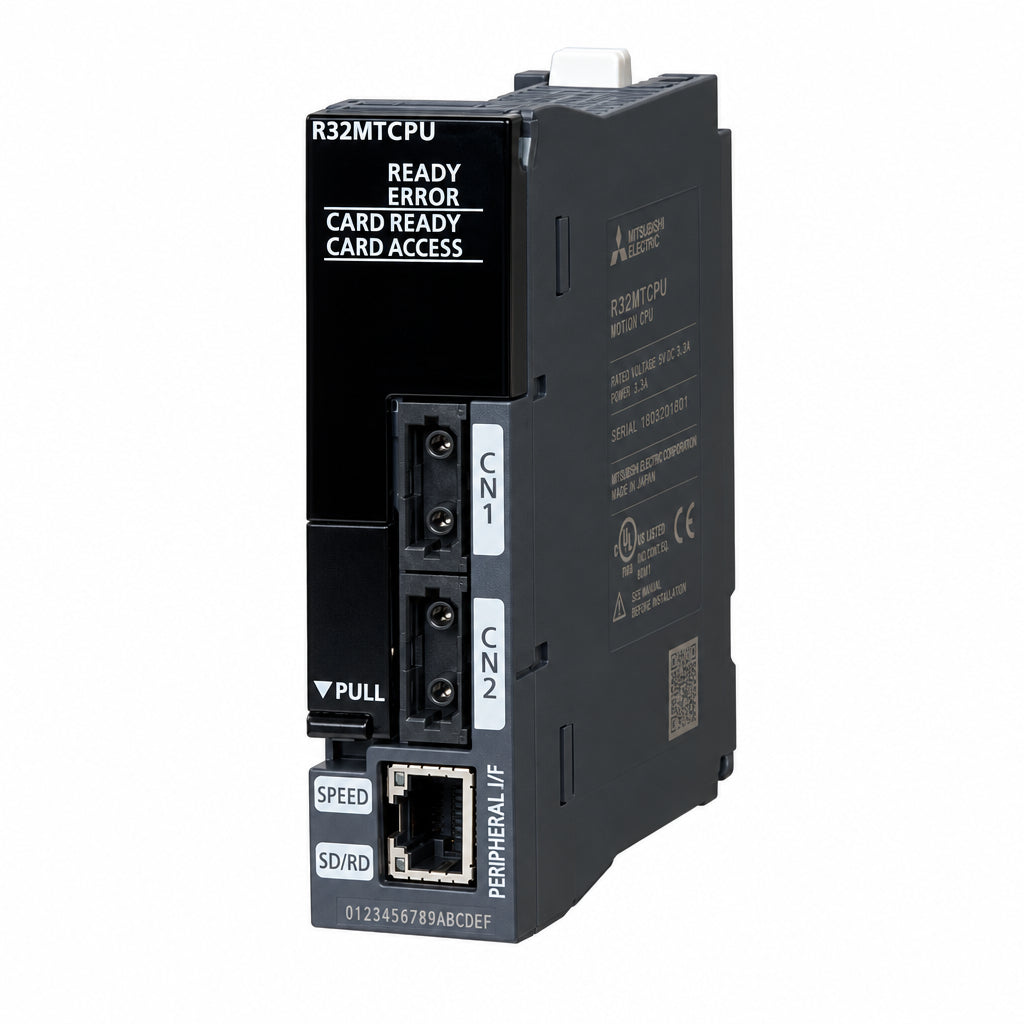

Mitsubishi R32MTCPU I/O Module

SKU: R32MTCPU
(0)
$1,167.92
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

Mitsubishi R32MTCPU MELSEC iQ-R Motion CPU Module

The Mitsubishi R32MTCPU is MELSEC iQ-R series motion controller CPU. It supports max 32 axes (16 axes × 2 SSCNET III/H optical lines), high-precision multi-axis synchronous control, G-code machine control and cam function for advanced automation machinery.

Key Features

  • Max controlled axes: 32 axes (16 axes per SSCNET III/H line, 2 lines)
  • Selectable operation cycle: 0.222 / 0.444 / 0.888 / 1.777 / 3.555 / 7.111 ms
  • SSCNET III/H optical communication, 100 Mbps transmission speed; max station distance 100m, total cable length up to 1600m
  • Interpolation: Linear (max 4 axes), Circular (2 axes), Helical (3 axes)
  • Control modes: PTP, speed, speed-torque, advanced synchronous, cam, pressure, G-code machine control
  • Programming: Motion SFC (MT SFC) + INS dedicated motion instructions; Software: MELSOFT MT Works2
  • Servo program capacity: 64K steps; Built-in ROM: 12MB
  • SD/SDHC card slot, supports up to 32GB for program/data backup
  • Peripheral Ethernet port for programming, monitoring and data exchange
  • High-speed fixed-cycle data exchange between motion CPU and PLC CPU via buffer memory

Technical Specifications

Model R32MTCPU
Series MELSEC iQ-R Motion CPU
Max Control Axes 32 axes (16 axes × 2 SSCNET III/H lines)
SSCNET III/H 100 Mbps, optical fiber; max station distance:100m, total cable length:1600m
Compatible Servo Amplifier MR-J4-B, MR-J4W-B, MR-J5-B, MR-J5W-B series
Servo Program Capacity 64K steps
Built-in ROM 12 MB
SD Card Support Max 32GB SDHC
Dimension (H × W × D) 106.0 mm × 27.8 mm × 110.0 mm
Certifications UL, cUL, CE EMC, CE RoHS, KC EMC

Application Scenarios

Machine tools, packaging machines, filling equipment, unwinding & rewinding systems, X-Y positioning tables, multi-axis synchronous automated production lines requiring high precision motion control.

FAQ

Q: Which servo drives work with R32MTCPU?
A: MR-J4-B / MR-J4W-B and MR-J5-B / MR-J5W-B servo amplifiers over SSCNET III/H optical network.

Q: What software is used for programming?
A: MELSOFT MT Works2 for motion SFC and motion instruction programming.

Model Specifications

converted_model R32MTCPU
series MELSEC iQ-R
max_control_axes 32 (16 axes x 2 lines)
communication SSCNET III/H / SSCNET III (2 lines)
control_methods Positioning, synchronous, speed-torque, continuous-to-torque, pressure, G-code, machine control
max_station_distance_m 100 (between stations)
external_ports USB, Ethernet

Source: datasheet / product page
