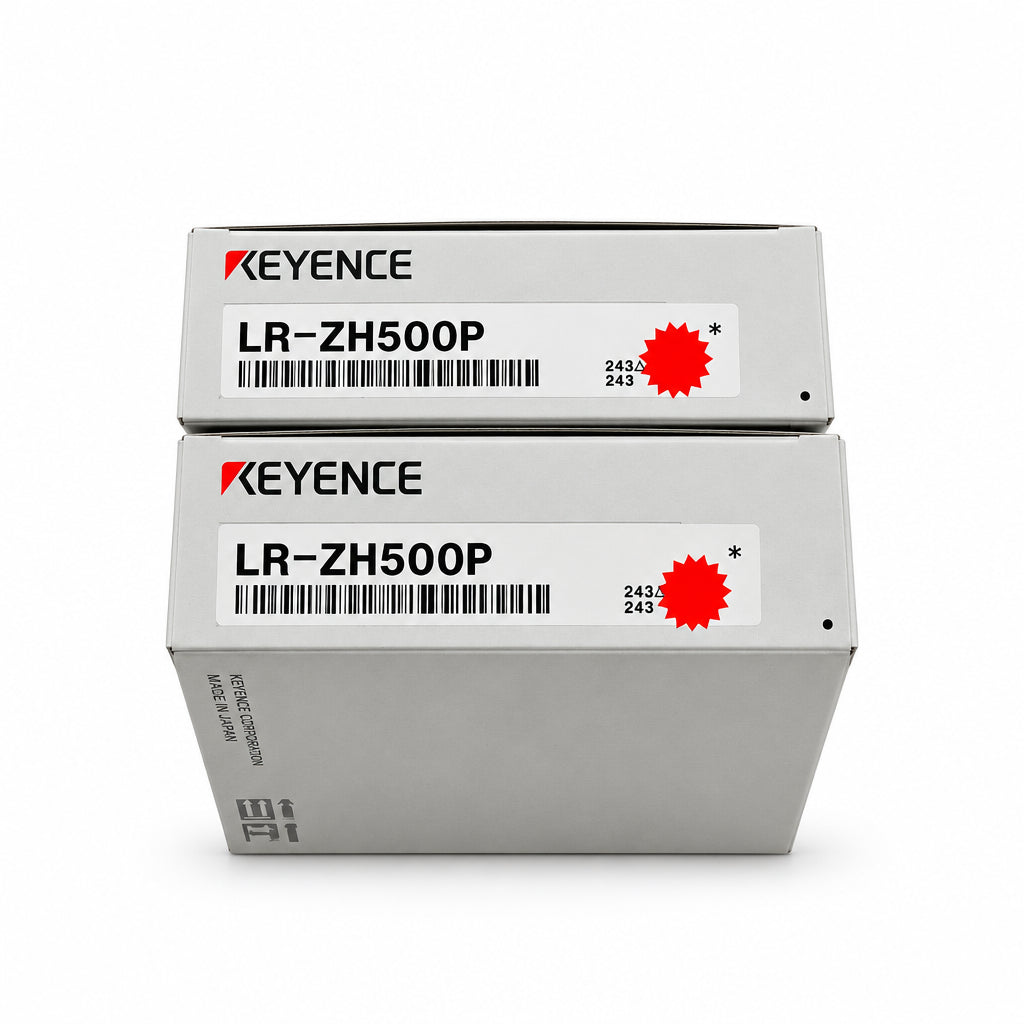

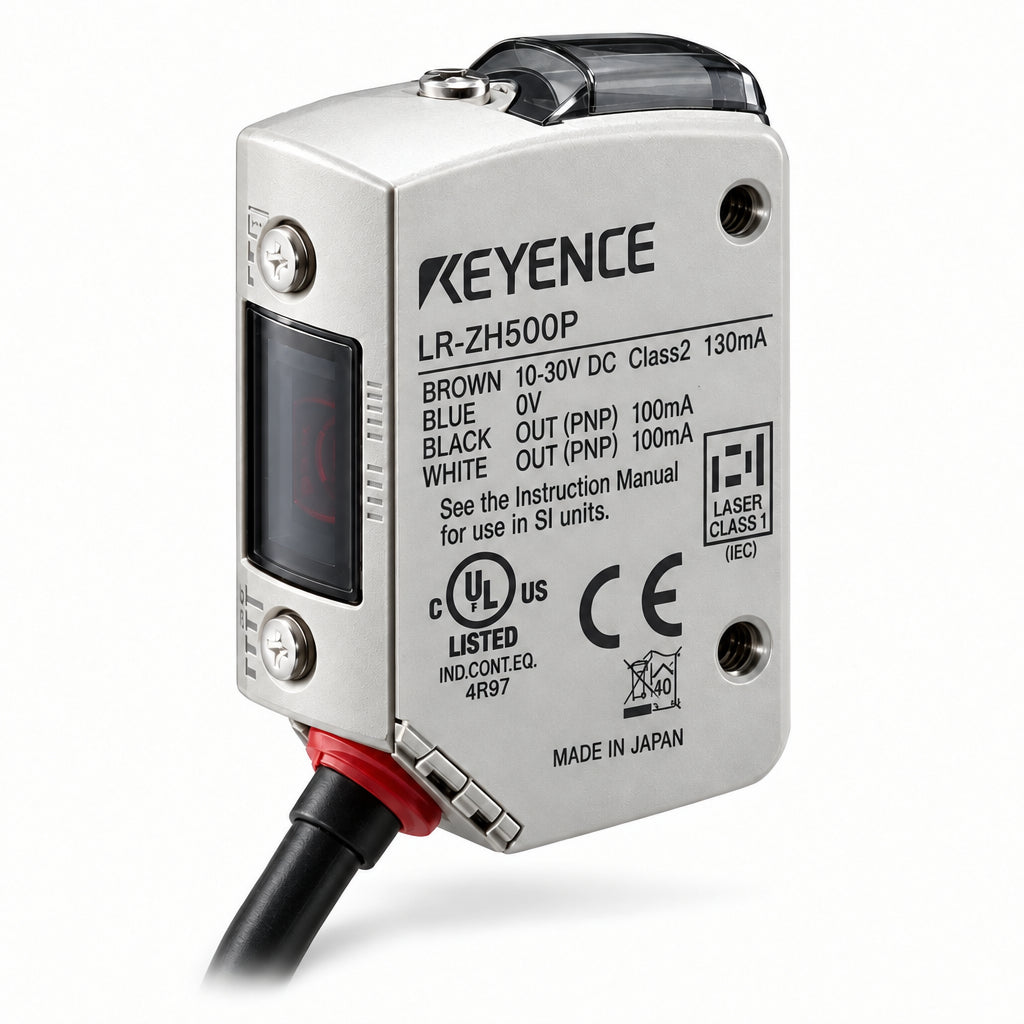

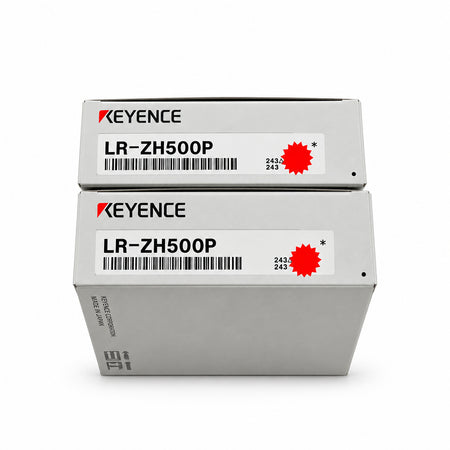

The Keyence LR-ZH500P is an all-in-one CMOS laser distance sensor from LR-Z series, rectangular housing with 2m attached cable, PNP output. It adopts U.C.D. detection principle, ideal for stable object detection over long range even for low-reflective targets.
| Model | LR-ZH500P |
| Product Type | CMOS laser distance sensor, amplifier integrated |
| Output Type | PNP open collector |
| Cable | 2 m attached cable |
| Detection Range | 35 mm ~ 500 mm |
| Laser Source | Red laser, 660 nm, Laser Class 2 |
| Spot Size | Approx. ø3 mm |
| Power Supply | 10 ~ 30 V DC, ripple 10% p-p max |
| Response Time | 1.5 ms / 10 ms / 50 ms selectable |
| Protection Rating | IP68, IP69K |
| Housing Material | SUS316L stainless steel |
| Operating Temperature | -10 °C ~ +50 °C (non-freezing) |
| Storage Temperature | -25 °C ~ +75 °C (non-freezing) |
| Relative Humidity | 35% to 85% RH, non-condensing |
| Weight | Approx. 110 g (including cable) |
Q: What is Keyence LR-ZH500P?
A: LR-ZH500P is an LR-Z series CMOS laser distance sensor with PNP output, 35–500mm sensing range, 2m cable and SUS316L IP68/IP69K housing.
Q: What output mode does LR-ZH500P support?
A: PNP open collector, Light-ON / Dark-ON can be selected via sensor settings.
Q: Can it be used in washdown environments?
A: Yes, IP68 and IP69K rated SUS316L housing supports high-pressure washdown applications.
