Keyence IV4-600MA Vision Sensor Machine Vision
Keyence IV4-600MA Vision Sensor Machine Vision

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Keyence

KEYENCE IV4-600MA AI Vision Sensor

SKU: IV4-600MA
(0)
$4,690.07
Available
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

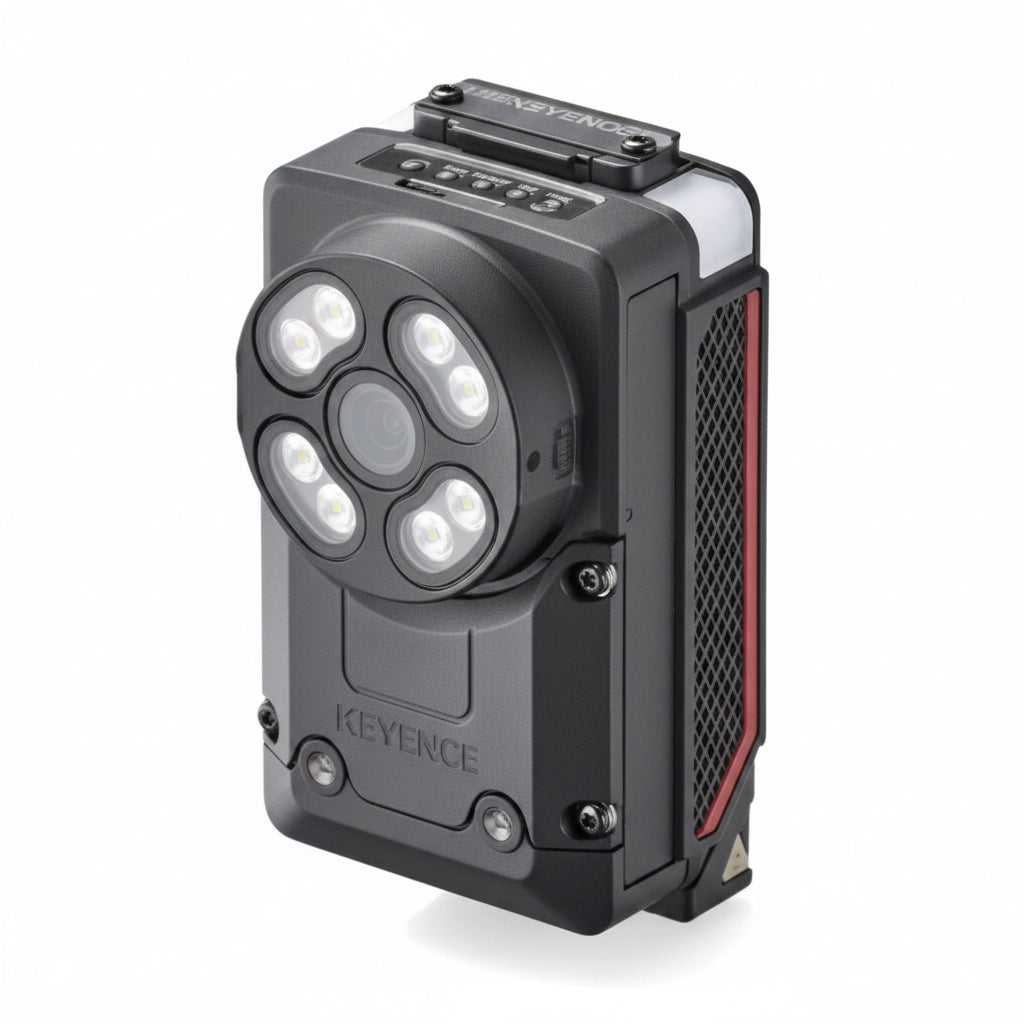

KEYENCE IV4-600MA AI Vision Sensor, Wide Field-of-View, Monochrome

The KEYENCE IV4-600MA is a wide field-of-view, monochrome vision sensor with built-in AI from the IV4 series (amplifier built-in model). It provides standard, sorting and AI through-count modes with up to 65 tools, a 1/2.9" monochrome CMOS (1280×960), infrared LED lighting, IP67 protection and industrial Ethernet connectivity. Technical data sourced from the official KEYENCE datasheet. Supplied by SHLY-PLC, an independent industrial automation distributor; each unit is visually inspected and functionally checked before shipment.

Key Features

  • Model: IV4-600MA — wide FOV monochrome AI vision sensor
  • Sensor: 1/2.9" monochrome CMOS, 1280×960
  • Modes: Standard / Sorting / AI Through-Count
  • Tools: up to 65 per program (AI learning, OCR, position, area, width…)
  • Robust: IP67 · infrared LED lighting · PoE + Ethernet
  • Lifecycle: Active product

Technical Specifications

Official KEYENCE Product Data — IV4-600MA

Technical Specifications
Model / Type IV4-600MA · wide field-of-view, monochrome, amplifier built-in
Installation Distance from 50 mm
Field of View 51(H)×38(V) mm @50 mm → 2730(H)×2044(V) mm @3000 mm (rep.)
Image Sensor / Resolution 1/2.9" monochrome CMOS · 1280(H)×960(V)
Tools Up to 65/program: AI learning, learning search/OCR/count, outline, area, edge, width, diameter, pitch, position correction, blob count, AI trigger, etc.
Programs 128 (with SD) / 32 (without SD)
Exposure Time / Lighting 12 µs – 10 ms · infrared LED, pulse lighting
Focus Adjustment Auto (per program)
Inputs / Outputs 6 (3 selectable IN/OUT) · open-collector NPN/PNP, max 30 V / 50 mA
Ethernet 1000BASE-T/100BASE-TX · M12 8-pin X-code · EtherNet/IP, PROFINET CC-B, TCP/IP; PoE class 4/6
Network Functions FTP/SFTP client, SNTP, OPC UA server, MQTT client · microSD/SDHC (expansion)
Power Supply 24 V DC +25%/-20% · avg power 9.3 W (no AI imaging unit)
Protection / Environment IP67 · 0…+50 °C · 85% RH (no condensation)
Weight Approx. 370 g (approx. 560 g with AI imaging lighting unit)
Approvals UL/CSA, ESD-Safe (IEC 61340-5-1)
Model note: IV4-600MA is a KEYENCE AI-equipped vision sensor (wide FOV, monochrome), not a PLC and not an ABB product. Brand is KEYENCE. The IV4 series includes 400/500/600 models (color = CA, monochrome = MA); this is the wide FOV mono type with built-in amplifier and infrared LED.

Compatibility & Cross-References

KEYENCE IV4 series vision sensors (IV4-400CA/500CA/600CA color, IV4-400MA/500MA/600MA mono); compatible with IV4-CU1/GCU1 comm units, IV4-CP70 control panel, IV4-DU10 display unit, IV-H1SN PC software. This listing is provided by an independent industrial automation distributor; brand names and part numbers are used for product identification only.

Applications

  • Presence/defect inspection, positioning and sorting with built-in AI
  • Wide-field-of-view part and assembly inspection
  • Counting (AI through-count), OCR and quality verification in-line

Warranty & Shipping

  • Availability: Active product; contact us for real-time stock status.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery about 5-8 business days, express available, free shipping over $500.

Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: KEYENCE part IV4-600MA is supplied by SHLY-PLC, an independent industrial automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: What is the IV4-600MA?

A: A KEYENCE wide field-of-view, monochrome AI vision sensor (IV4 series) with built-in amplifier.

Q: Is it a PLC?

A: No — it is an AI vision sensor (industrial image sensor).

Q: What resolution?

A: 1280×960 monochrome CMOS (1/2.9").

Q: What is the IP rating?

A: IP67; 24 V DC, PoE-capable, 1000BASE-T Ethernet.
