Schneider Electric · Modicon I/O Module (BMX / STB / ETB)
BMXSDO0802 is a Schneider Electric industrial component with Supply voltage 24 V DC (IEC 61131-2); Enclosure rating IP20 (IEC 60529); Operating temperature 0...+55 °C (IEC 60068-2-1). It is used in control panels, machine builds, spare-part replacements where the installed unit is matched to the original catalog number and a compact, documented part is required.
| Electrical | |
| Supply voltage | 24 V DC (IEC 61131-2) |
|---|---|
| Output voltage | 24 V DC (positive) |
| Output current | 0.5 A per channel (max 10 A per module) |
| I/O and communication | |
| Communication ports | None (rack backplane only) |
| Total I/O | 8 outputs |
| Response time | 1.2 ms |
| Safety integrity SIL/PL | SIL 3 (IEC 61508), Cat 4 / PL e (ISO 13849) |
| Mechanical | |
| Weight | 0.12 kg |
| Mounting | DIN rail / panel |
| Enclosure rating | IP20 (IEC 60529) |
| Environment and compliance | |
| Operating temperature | 0...+55 °C (IEC 60068-2-1) |
| Certifications | CE, UL, CSA, CCC, EAC, Marine |
Values follow the Schneider Electric Modicon I/O Module (BMX / STB / ETB) specification for this catalog number; parameters not confirmed for this variant are omitted rather than estimated.
| Schneider Electric Modicon I/O Module (BMX / STB / ETB) variants | |||
| Catalog number | Mounting | ||
|---|---|---|---|
| BMXSDO0802 (this page) | DIN rail / panel | ||
| BMXSDI1602 | DIN rail / panel | ||
| BMXAM00210 | 35 mm DIN rail (IEC 60715) | ||
| BMXAM00410 | 35 mm DIN rail (IEC 60715) | ||
Verify model-specific dimensions, terminals and installation requirements in the manufacturer documentation before selecting an alternative.
The BMXSDO0802 is the device-level element in a Schneider Electric industrial component installation. It receives the field signals and control supply listed above — 24 V DC (IEC 61131-2) — and switches or conditions the load within the the rated ratings shown in the Specifications table. Wiring and protective devices are sized to those same numbers, not to a generic assumption.
Typical installations place it in control panels, machine builds, spare-part replacements, where the unit is matched to the original catalog number and the enclosure provides DIN rail / panel support. Record the catalog number and revision from the nameplate of the installed unit before specifying a like-for-like spare.

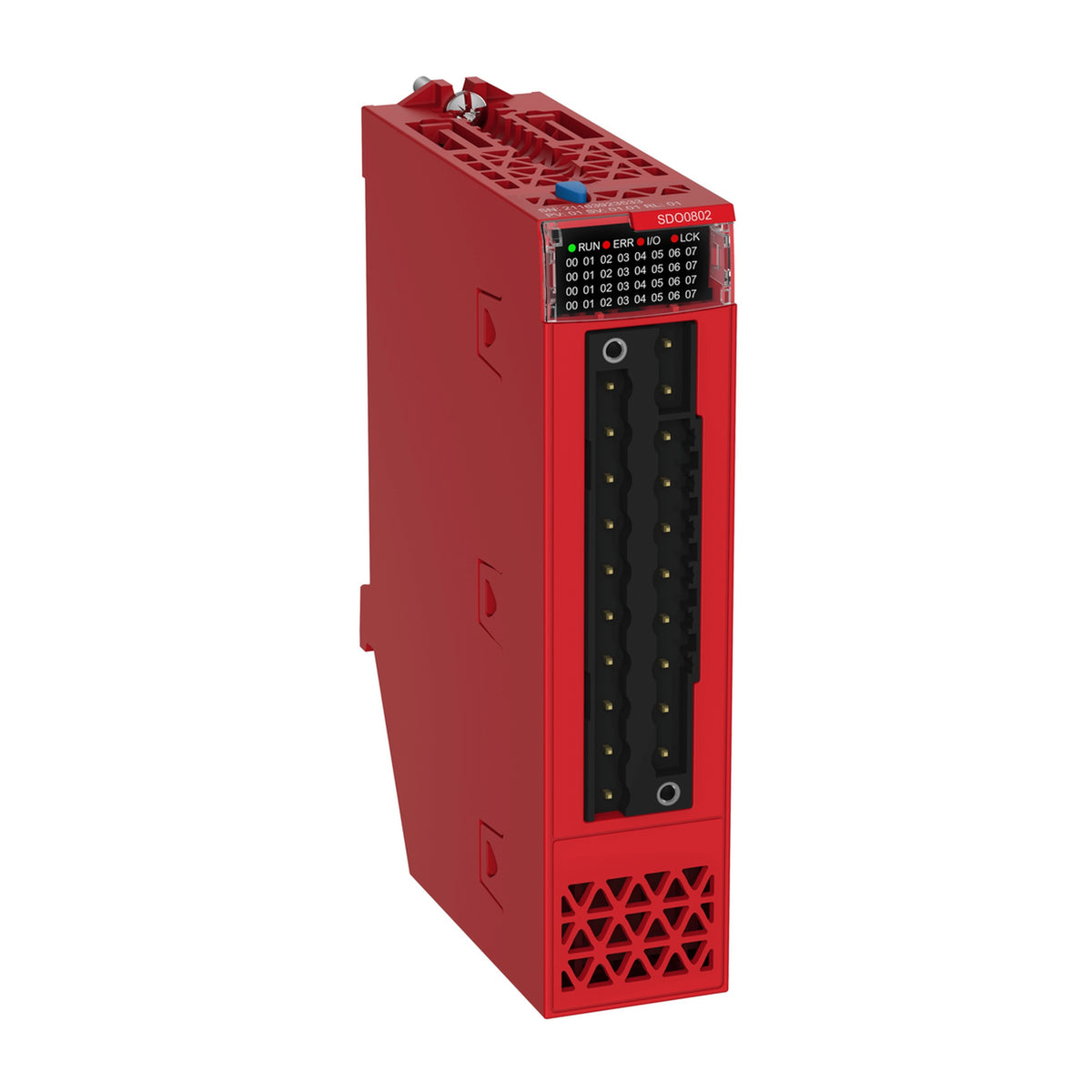

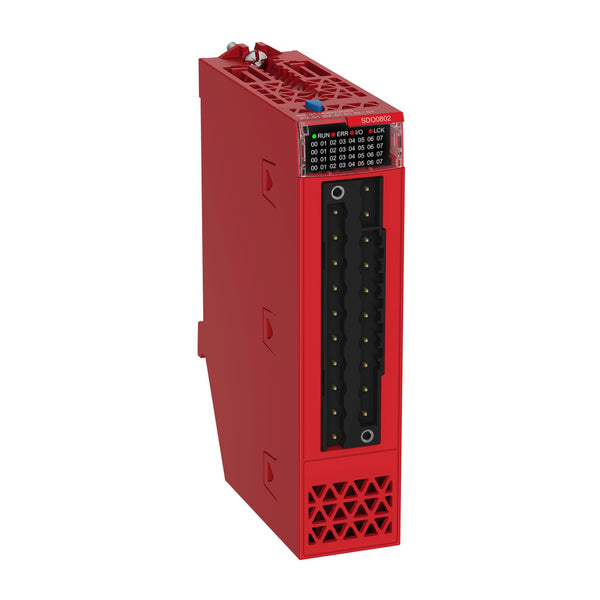

Schneider Electric BMXSDO0802 Digital Output Module. See the manufacturer product information for this catalog number.
For a discontinued unit, match function and electrical ratings rather than the label alone.
Q.For BMXSDO0802, what does the specification table state about weight?
The specification table lists weight = 0.12 kg for Schneider Electric BMXSDO0802. Use the value as the reference when sourcing a current-production equivalent.
Q.Which value is published under certifications for catalog number BMXSDO0802?
For BMXSDO0802, certifications is given as CE, UL, CSA, CCC, EAC, Marine. Check the revision of the installed unit if the catalog number has been superseded.
Q.Before ordering BMXSDO0802, which safety integrity SIL/PL entry should be checked?
The safety integrity SIL/PL entry quoted above is SIL 3 (IEC 61508), Cat 4 / PL e (ISO 13849). Compare it with the nameplate of the installed unit before ordering.
Q.Can the BMXSDO0802 replace the unit currently installed in my panel?
Compare catalog number BMXSDO0802 and the ratings above with the nameplate of the installed device. A current-production equivalent is selected by function and electrical rating, not by the label alone.
Q.What should I include in an enquiry for BMXSDO0802?
Send the full catalog number BMXSDO0802, the required quantity and a photo of the nameplate. Stock, lead time and the applicable compliance documents can then be confirmed for Schneider Electric BMXSDO0802.
