Beckhoff KL2702 Digital Output Module
Beckhoff KL2702 Digital Output Module

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Beckhoff

Beckhoff KL2702 Digital Output Module

SKU: KL2702
(0)
$412.50
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

KL2702 Bus Terminal | Beckhoff

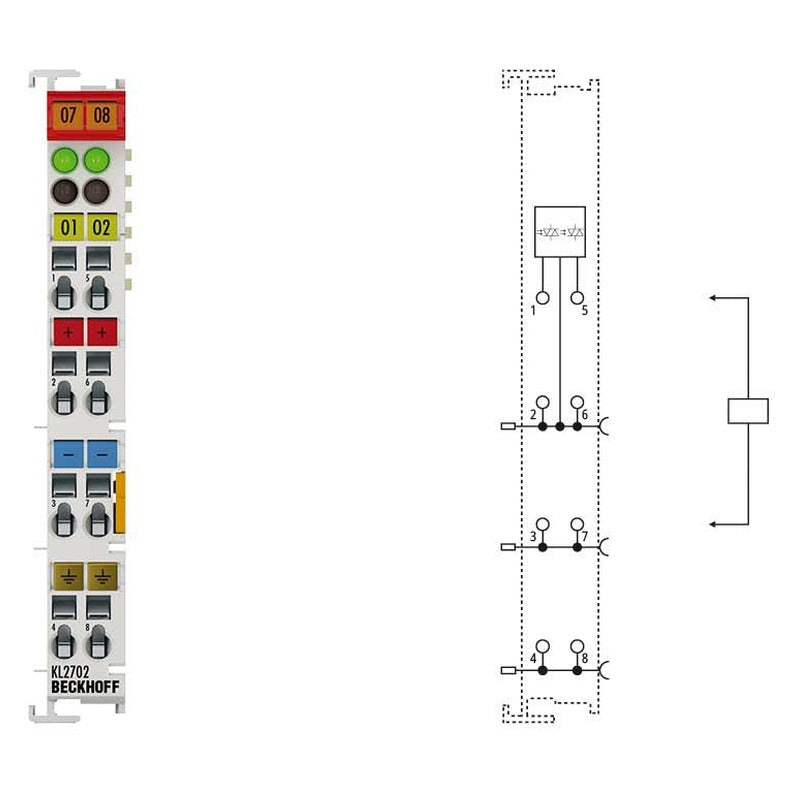

The Beckhoff KL2702 is a bus terminal (2-channel solid-state relay output, 0…230 V AC/DC, 0.3 A). It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.

Features

  • Number of outputs: 2 x make contacts 2 x make contacts, mutually locked 2 x make contacts.
  • Nominal voltage: 0…230 V AC/DC 0…230 V AC/DC 0…230 V AC/DC (DC…100 Hz).
  • Max. output current: 1.5 A steady load per channel 2 A steady load per channel 0.3 A steady load per channel.
  • Weight: approx. 55 g.
  • Approvals/markings: CE CE CE, CCC, UL, ATEX, IECEx, DNV, cFMus.

Specifications

Technical parameters compiled from the manufacturer data sheet and reference documentation.

Technical Specifications
I/O & Signals
Connection technology 2-/3-/4-wire
Number of outputs 2 x make contacts 2 x make contacts, mutually locked 2 x make contacts
Load type resistive, inductive
Max. output current 1.5 A steady load per channel 2 A steady load per channel 0.3 A steady load per channel
Bit width in the process image 2 outputs
Power & Current
Nominal voltage 0…230 V AC/DC 0…230 V AC/DC 0…230 V AC/DC (DC…100 Hz)
Current consumption power contacts only leakage and load current
Current consumption K-bus typ. 50 mA typ. 50 mA typ. 10 mA
Communication
Configuration no address or configuration setting
Mechanical & Environmental
Surge voltage protection from 400 V AC
Weight approx. 55 g
Operating temperature 0…55°C
Storage temperature -25…+85°C
Relative humidity 95%, no condensation
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos. IP20/variable
Pluggable wiring level no no for all KSxxxx Bus Terminals
Approvals & Compliance
Approvals/markings CE CE CE, CCC, UL, ATEX, IECEx, DNV, cFMus
Ex marking – – ATEX: II 3G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc
General
Rotating field frequency DC…100 Hz
Peak current 2.5 A (20 s), 7.5 A (100 ms) 2.5 A (20 s), 7.5 A (100 ms) 0.5 A (20 s), 1.5 A (100 ms)
Contact resistance typ. 0.3 Ω, 0.4 Ω max. typ. 0.3 Ω, 0.4 Ω max. typ. 2.1 Ω, 3.2 Ω max.
Switch-on time 0.2…0.4 ms 0.2…0.4 ms 4…6 ms
Switch-off time 5…8 ms 5…8 ms 0.05…0.1 ms
Switch-on delay 320 µs
Switch-off delay 6.2 ms
Residual voltage (200 mΩ) (300 mΩ)
Electrical isolation 500 V (K-bus/field voltage), 2500 V AC (1 min.)
Leakage current (OFF state) << 1 mA

Compatibility & Cross-References

Model variants, options and firmware revisions can affect fitment. Before ordering the Beckhoff KL2702 bus terminal, share your existing part number or project requirements and our team will cross-reference comparable in-stock Beckhoff units and verify compatibility. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.

Applications

  • Machine and production-line automation with distributed I/O.
  • Conveyors, packaging and material-handling equipment.
  • Process data acquisition and sensor/actuator interfacing.
  • Maintenance, spares and retrofit of existing Beckhoff systems.
  • Control-cabinet and DIN-rail mounted automation builds.

Warranty

  • Availability: KL2702 is stocked for prompt shipment; contact us for current quantity and lead time.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery is about 5-8 business days, express shipping is available, and orders over $500 ship free.

    • Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: Beckhoff part KL2702 is supplied by SHLY-PLC, an independent industrial-automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: What condition is the KL2702 supplied in?

A: Each unit is inspected and functionally checked before sale. Contact us for the current stock condition and quantity.

Q: How quickly can the KL2702 ship?

A: Orders are processed within 2-4 business days after payment confirmation. Standard worldwide delivery is about 5-8 business days, express shipping is available and orders over $500 ship free.

Q: Can you confirm compatibility or a replacement for the KL2702?

A: Yes. Share your existing part number or application and our technical team will verify compatibility and provide cross-references to comparable in-stock models.

KL2702 · Technical reference data · Independently supplied by SHLY-PLC
