Beckhoff KL2184
Beckhoff KL2184

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Beckhoff

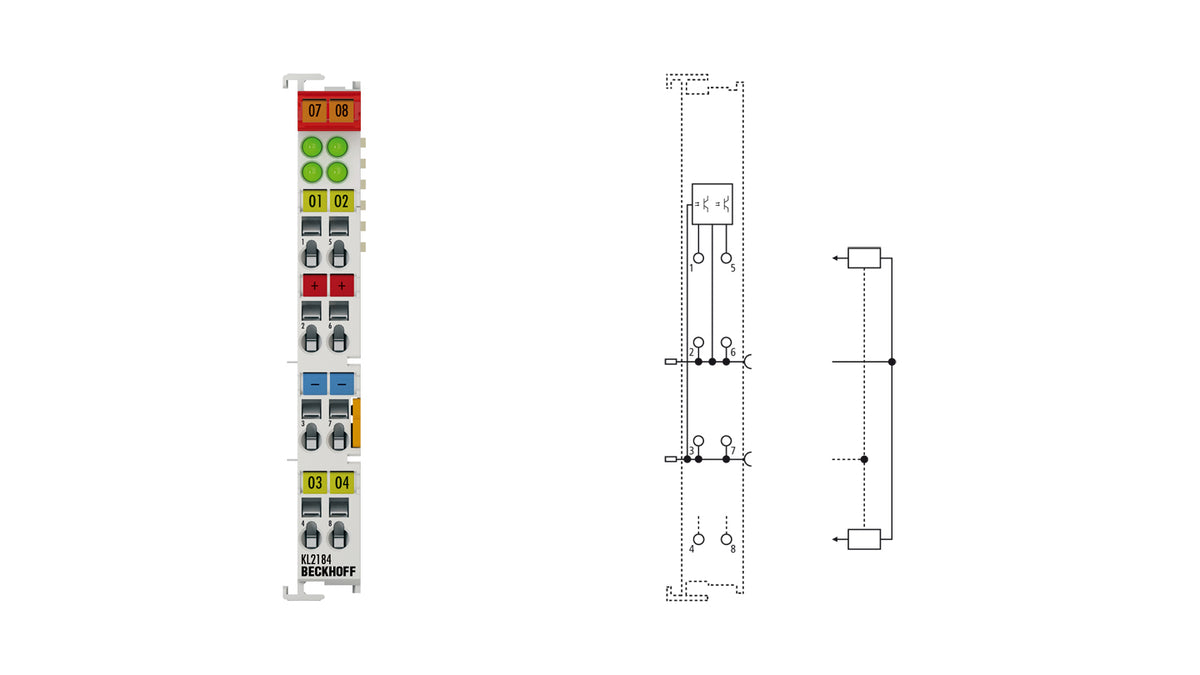

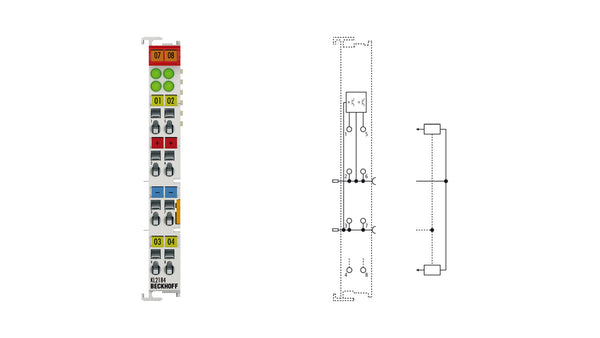

Beckhoff KL2184 Digital Output Module

SKU: KL2184
(0)
$159.17
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

KL2184 Bus Terminal | Beckhoff

The Beckhoff KL2184 is a bus terminal (4-channel digital output, 24 V DC, 0.5 A, ground switching). It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.

Features

  • Number of outputs: 4.
  • Nominal voltage: 24 V DC (-15%/+20%).
  • Max. output current: 0.5 A (short-circuit proof) per channel.
  • Weight: approx. 70 g.
  • Approvals/markings: CE, CCC, UL, ATEX, IECEx, cFMus.

Specifications

Technical parameters compiled from the manufacturer data sheet and reference documentation.

Technical Specifications
I/O & Signals
Connection technology 2-/3-wire
Number of outputs 4
Load type resistive, inductive, lamp load
Max. output current 0.5 A (short-circuit proof) per channel
Switching-off energy < 100 mJ/channel
Bit width in the process image 4 outputs
Power & Current
Nominal voltage 24 V DC (-15%/+20%)
Short-circuit current < 7 A
Reverse polarity protection yes
Current consumption power contacts typ. 30 mA + load
Current consumption K-bus typ. 9 mA
Communication
Configuration no address or configuration setting
Mechanical & Environmental
Weight approx. 70 g
Operating temperature 0…55°C
Storage temperature -25…+85°C
Relative humidity 95%, no condensation
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos. IP20/variable
Pluggable wiring level for all KSxxxx Bus Terminals
Approvals & Compliance
Approvals/markings CE, CCC, UL, ATEX, IECEx, cFMus
Ex marking ATEX: II 3G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc
General
Electrical isolation 500 V (K-bus/field potential)

Compatibility & Cross-References

Model variants, options and firmware revisions can affect fitment. Before ordering the Beckhoff KL2184 bus terminal, share your existing part number or project requirements and our team will cross-reference comparable in-stock Beckhoff units and verify compatibility. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.

Applications

  • Machine and production-line automation with distributed I/O.
  • Conveyors, packaging and material-handling equipment.
  • Process data acquisition and sensor/actuator interfacing.
  • Maintenance, spares and retrofit of existing Beckhoff systems.
  • Control-cabinet and DIN-rail mounted automation builds.
