KL1124 Bus Terminal | Beckhoff

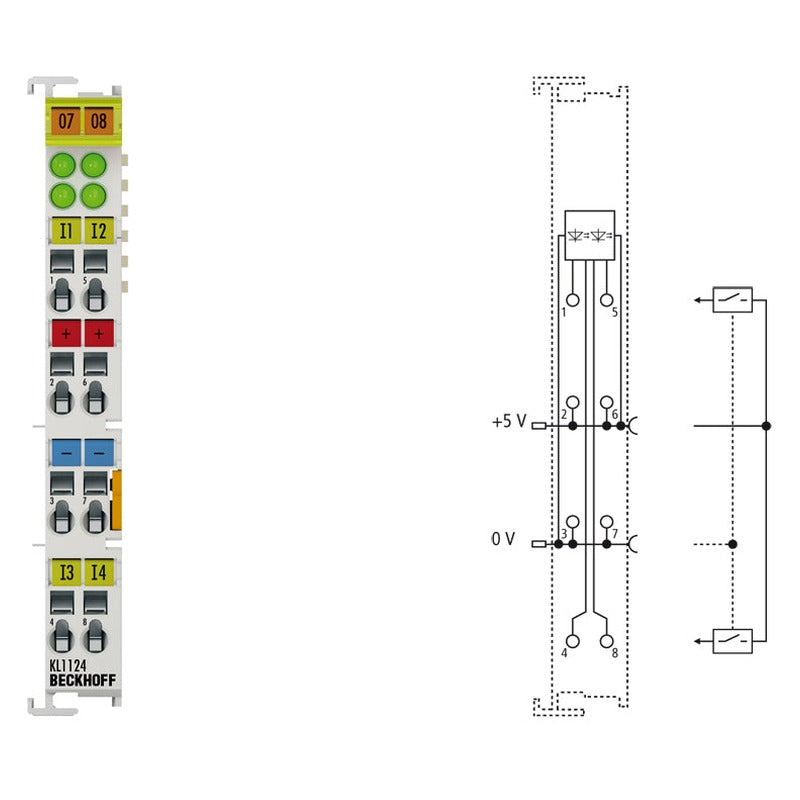

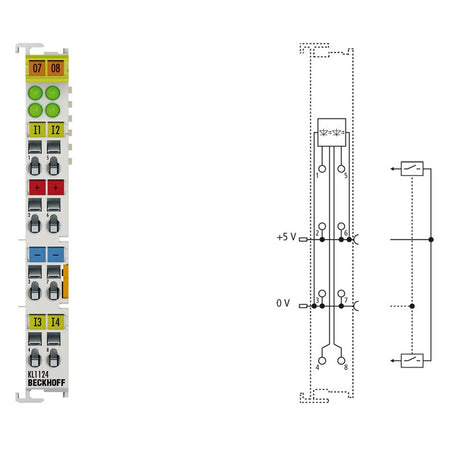

The Beckhoff KL1124 is a bus terminal (4-channel digital input, 5 V DC, 0.2 ms). It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.

Features

  • Number of inputs: 4.
  • Nominal voltage: 5 V DC.
  • Signal voltage “0”: < 0.8 V.
  • Weight: approx. 50 g.
  • Approvals/markings: CE, CCC, UL, ATEX, IECEx, cFMus.

Specifications

Technical parameters compiled from the manufacturer data sheet and reference documentation.

Technical Specifications
I/O & Signals
Connection technology 2-/3-wire
Number of inputs 4
Signal voltage “0” < 0.8 V
Signal voltage “1” > 2.4 V
Input filter typ. 0.2 ms
Input current typ. 50 µA
Bit width in the process image 4 inputs
Power & Current
Nominal voltage 5 V DC
Current consumption K-bus typ. 5 mA
Current consumption power contacts typ. 1 mA + load
Communication
Configuration no address or configuration setting
Mechanical & Environmental
Weight approx. 50 g
Storage temperature -25…+85°C
Operating temperature 0…55°C
Relative humidity 95%, no condensation
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos. IP20/variable
Pluggable wiring level for all KSxxxx Bus Terminals
Approvals & Compliance
Approvals/markings CE, CCC, UL, ATEX, IECEx, cFMus
Ex marking ATEX: II 3G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc
General
Electrical isolation 500 V (K-bus/field potential)
Special features supply 5 V DC via power contacts

Compatibility & Cross-References

Model variants, options and firmware revisions can affect fitment. Before ordering the Beckhoff KL1124 bus terminal, share your existing part number or project requirements and our team will cross-reference comparable in-stock Beckhoff units and verify compatibility. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.

Applications

  • Machine and production-line automation with distributed I/O.
  • Conveyors, packaging and material-handling equipment.
  • Process data acquisition and sensor/actuator interfacing.
  • Maintenance, spares and retrofit of existing Beckhoff systems.
  • Control-cabinet and DIN-rail mounted automation builds.

Warranty

  • Availability: KL1124 is stocked for prompt shipment; contact us for current quantity and lead time.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery is about 5-8 business days, express shipping is available, and orders over $500 ship free.

    • Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: Beckhoff part KL1124 is supplied by SHLY-PLC, an independent industrial-automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.
