Beckhoff IE2403-0000 Inductive Sensor

SKU: IE2403-0000
(0)
$365.42
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

IE2403-0000 Extension Box | Beckhoff

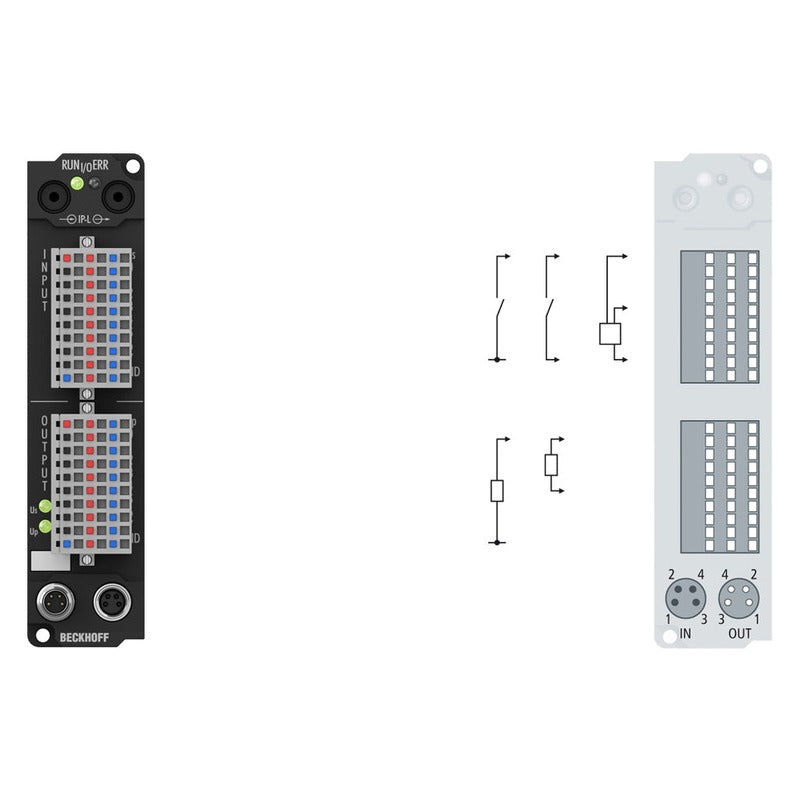

The Beckhoff IE2403-0000 is an extension box (8-channel digital input + 8-channel digital output, 24 V DC, 3 ms, 0.5 A, IP20 connector). It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.

Features

  • Number of channels: 8 inputs + 8 outputs.
  • Signal voltage “0”: -3…+5 V.
  • Max. output current: max. 0.5 A per channel, individually short-circuit proof.
  • Approvals/markings: CE, UL.
  • Input/output connections: connector with spring-loaded technology.

Specifications

Technical parameters compiled from the manufacturer data sheet and reference documentation.

Technical Specifications
I/O & Signals
Number of channels 8 inputs + 8 outputs
Input/output connections connector with spring-loaded technology
Input filter 3 ms
Signal voltage “0” -3…+5 V
Signal voltage “1” 11…30 V, 6 mA input current (EN 61131-2, type 2)
Sensor supply from control voltage, max. 0.5 A, short-circuit proof in total
Load type resistive, inductive, lamp load
Max. output current max. 0.5 A per channel, individually short-circuit proof
Current consumption from U S (without sensor current) 25 mA
Bit width in the process image 8 inputs + 8 outputs
Power & Current
Rated load voltage 24 V DC (-15%/+20%)
Short-circuit current typ. 1.5 A
Auxiliary power current typ. 20 mA per channel
Power supply connection feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, A-coded
Mechanical & Environmental
Operating temperature 0…55°C
Storage temperature -25…+85°C
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos. IP20/variable
Approvals & Compliance
Approvals/markings CE, UL
General
Electrical isolation channels/control voltage: no, between the channels: no, control voltage/fieldbus: yes, via IP-Link

Compatibility & Cross-References

Model variants, options and firmware revisions can affect fitment. Before ordering the Beckhoff IE2403-0000 extension box, share your existing part number or project requirements and our team will cross-reference comparable in-stock Beckhoff units and verify compatibility. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.

Applications

  • Machine and production-line automation with distributed I/O.
  • Conveyors, packaging and material-handling equipment.
  • Process data acquisition and sensor/actuator interfacing.
  • Maintenance, spares and retrofit of existing Beckhoff systems.
  • Control-cabinet and DIN-rail mounted automation builds.

Warranty

  • Availability: IE2403-0000 is stocked for prompt shipment; contact us for current quantity and lead time.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery is about 5-8 business days, express shipping is available, and orders over $500 ship free.

    • Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: Beckhoff part IE2403-0000 is supplied by SHLY-PLC, an independent industrial-automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: What condition is the IE2403-0000 supplied in?

A: Each unit is inspected and functionally checked before sale. Contact us for the current stock condition and quantity.

Q: How quickly can the IE2403-0000 ship?

A: Orders are processed within 2-4 business days after payment confirmation. Standard worldwide delivery is about 5-8 business days, express shipping is available and orders over $500 ship free.

Q: Can you confirm compatibility or a replacement for the IE2403-0000?

A: Yes. Share your existing part number or application and our technical team will verify compatibility and provide cross-references to comparable in-stock models.
