EPP3184-0002 EtherCAT P Box | Beckhoff

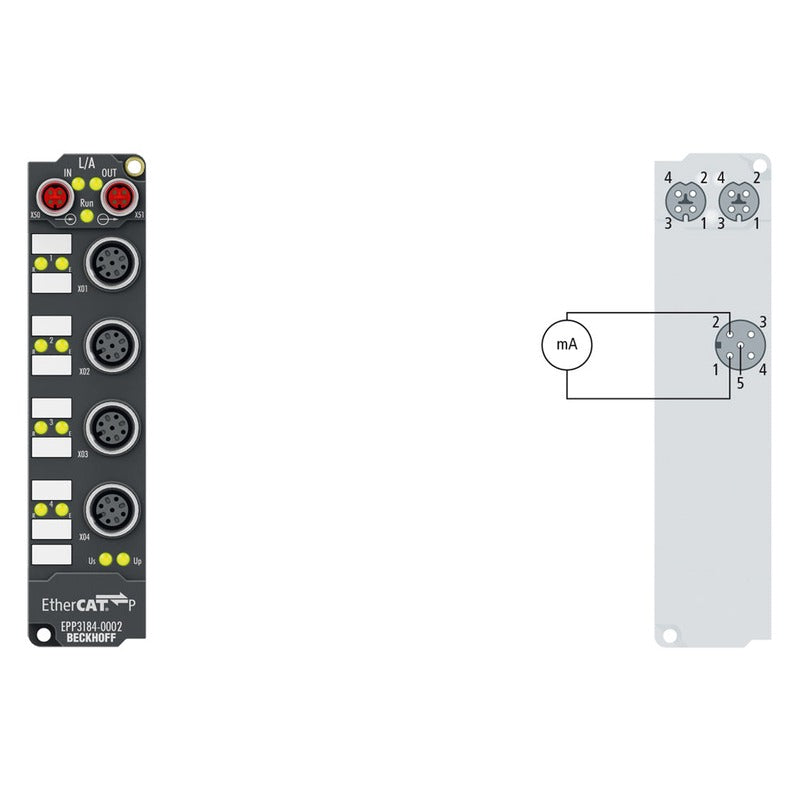

The Beckhoff EPP3184-0002 is an ethercat p box (4-channel analog input, multi-function, ±10 V, 0/4…20 mA, 16 bit, single-ended, M12). It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.

Features

  • Number of inputs: 4 (single-ended).
  • Nominal voltage: 24 V DC (-15%/+20%).
  • Resolution: 16 bit (incl. sign).
  • Protocol: EtherCAT.
  • Weight: approx. 165 g.

Specifications

Technical parameters compiled from the manufacturer data sheet and reference documentation.

Technical Specifications
I/O & Signals
Number of inputs 4 (single-ended)
Input connections M12 x 1, 5-pin, A-coded
Resolution 16 bit (incl. sign)
Signal type -10/0…+10 V | 0/4…20 mA, parameterizable per channel
Input filter cut-off frequency 5 kHz
Input filter configurable
Sensor supply from load supply voltage U P
Power & Current
Nominal voltage 24 V DC (-15%/+20%)
Current consumption from U S typ. 100 mA
Communication
Protocol EtherCAT
Bus interface 2 x M8 socket, P-coded, shielded
Distributed clocks yes
Mechanical & Environmental
Weight approx. 165 g
Operating temperature -25…+60°C
Storage temperature -40…+85°C
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos. IP65/66/67 (conforms to EN 60529)/variable
Approvals & Compliance
Approvals/markings CE, UL
General
Conversion time ~ 100 µs
Common mode voltage U CM max. 35 V
Internal resistance > 200 kΩ | typ. 85 Ω + diode voltage
Measurement error/uncertainty < ±0.3% (relative to full scale value)
Electrical isolation 500 V
Special features current or voltage parameterizable

Compatibility & Cross-References

Model variants, options and firmware revisions can affect fitment. Before ordering the Beckhoff EPP3184-0002 ethercat p box, share your existing part number or project requirements and our team will cross-reference comparable in-stock Beckhoff units and verify compatibility. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.

Applications

  • Machine and production-line automation with distributed I/O.
  • Conveyors, packaging and material-handling equipment.
  • Process data acquisition and sensor/actuator interfacing.
  • Maintenance, spares and retrofit of existing Beckhoff systems.
  • Control-cabinet and DIN-rail mounted automation builds.

Warranty

  • Availability: EPP3184-0002 is stocked for prompt shipment; contact us for current quantity and lead time.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery is about 5-8 business days, express shipping is available, and orders over $500 ship free.

    • Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: Beckhoff part EPP3184-0002 is supplied by SHLY-PLC, an independent industrial-automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: What condition is the EPP3184-0002 supplied in?

A: Each unit is inspected and functionally checked before sale. Contact us for the current stock condition and quantity.

Q: How quickly can the EPP3184-0002 ship?

A: Orders are processed within 2-4 business days after payment confirmation. Standard worldwide delivery is about 5-8 business days, express shipping is available and orders over $500 ship free.

Q: Can you confirm compatibility or a replacement for the EPP3184-0002?

A: Yes. Share your existing part number or application and our technical team will verify compatibility and provide cross-references to comparable in-stock models.
