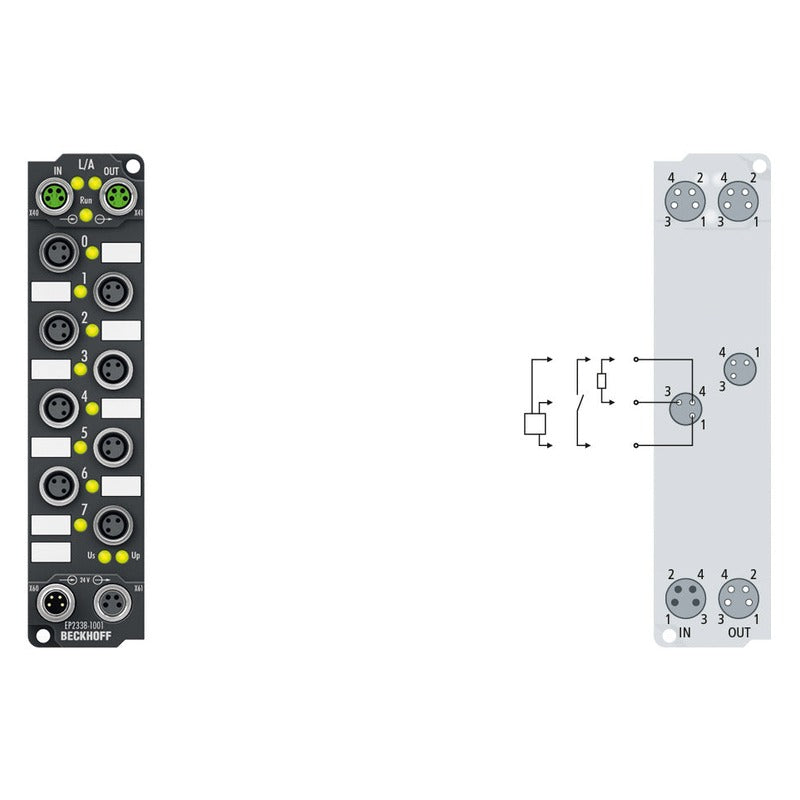

Beckhoff EP2338-1001 PLC Module
Beckhoff EP2338-1001 PLC Module

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Beckhoff

Beckhoff EP2338-1001 PLC Module

SKU: EP2338-1001
(0)
$714.83
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

EP2338-1001 EtherCAT Box | Beckhoff

The Beckhoff EP2338-1001 is an ethercat box (8-channel digital combi, 24 V DC, 3 ms, 0.5 A, M8). It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.

Features

  • Number of channels: 8 digital inputs or outputs.
  • Signal voltage “0”: -3…+5 V.
  • Protocol: EtherCAT.
  • Max. output current: 0.5 A per channel, individually short-circuit proof.
  • Weight: approx. 165 g.

Specifications

Technical parameters compiled from the manufacturer data sheet and reference documentation.

Technical Specifications
I/O & Signals
Number of channels 8 digital inputs or outputs
Input/output connections M8 x 1, 3-pin, a-coded
Input filter typ. 3 ms
Signal voltage “0” -3…+5 V
Signal voltage “1” 11…30 V, 6 mA input current (EN 61131-2, type 3)
Sensor supply from load supply voltage, max. 0.5 A, short-circuit proof in total
Load type resistive, inductive, lamp load
Max. output current 0.5 A per channel, individually short-circuit proof
Switching times typ. T ON : 50 µs, typ. T OFF : 100 µs
Power & Current
Rated load voltage 24 V DC (-15%/+20%)
Short-circuit current typ. 1.5 A
Auxiliary power current typ. 20 mA + load
Current consumption from U S 120 mA
Power supply connection feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, A-coded
Communication
Protocol EtherCAT
Bus interface 2 x M8 socket, 4-pin, A-coded, shielded
Distributed clocks –
Mechanical & Environmental
Weight approx. 165 g
Operating temperature -25…+60°C
Storage temperature -40…+85°C
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos. IP65/66/67 (conforms to EN 60529)/variable
Approvals & Compliance
Specification EN 61131-2, type 1/3
Approvals/markings CE, UL
General
Electrical isolation 500 V

Compatibility & Cross-References

Model variants, options and firmware revisions can affect fitment. Before ordering the Beckhoff EP2338-1001 ethercat box, share your existing part number or project requirements and our team will cross-reference comparable in-stock Beckhoff units and verify compatibility. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.

Applications

  • Machine and production-line automation with distributed I/O.
  • Conveyors, packaging and material-handling equipment.
  • Process data acquisition and sensor/actuator interfacing.
  • Maintenance, spares and retrofit of existing Beckhoff systems.
  • Control-cabinet and DIN-rail mounted automation builds.
