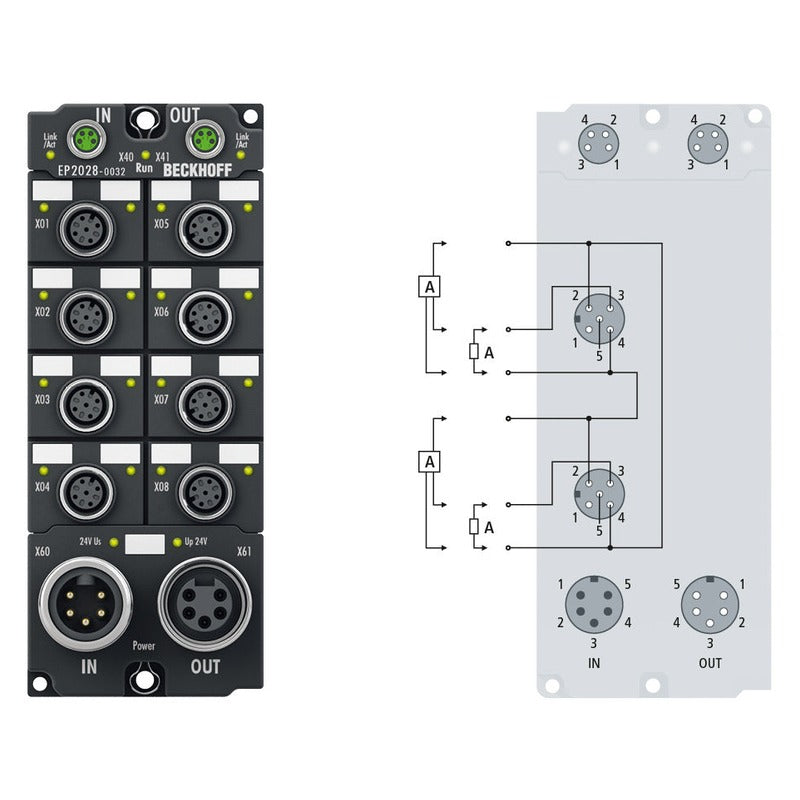

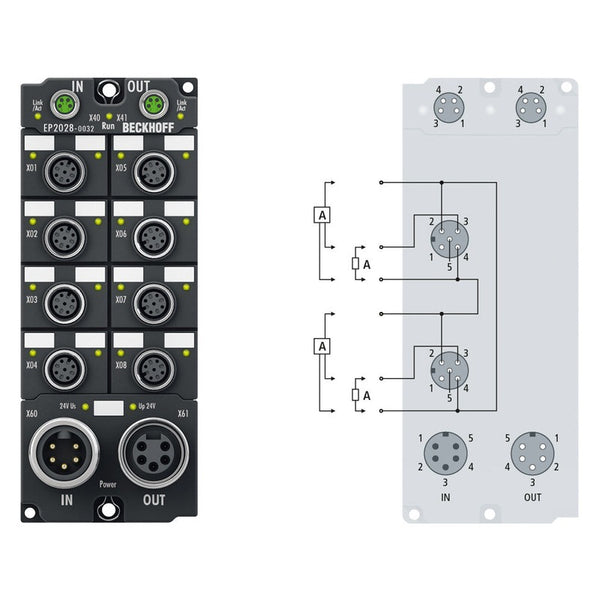

Beckhoff EP2028-0032 I/O Module
Beckhoff EP2028-0032 I/O Module

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Beckhoff

Beckhoff EP2028-0032 I/O Module

SKU: EP2028-0032
(0)
$636.45
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

EP2028-0032 EtherCAT Box | Beckhoff

The Beckhoff EP2028-0032 is an ethercat box (8-channel digital output, 24 V DC, 2.8 A, M12). It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.

Features

  • Number of outputs: 8.
  • Protocol: EtherCAT.
  • Max. output current: 2.8 A per channel, individually short-circuit proof, ∑ 16 A.
  • Approvals/markings: CE, UL (in preparation).
  • Bus interface: 2 x M8 socket, 4-pin, A-coded, shielded.

Specifications

Technical parameters compiled from the manufacturer data sheet and reference documentation.

Technical Specifications
I/O & Signals
Number of outputs 8
Output connections M12 x 1, 5-pin, A-coded
Load type resistive, inductive, lamp load
Nominal output voltage 24 V DC (-15%/+20%)
Max. output current 2.8 A per channel, individually short-circuit proof, ∑ 16 A
Switching times typ. T ON : 200 µs, typ. T OFF : 200 µs
Power & Current
Short-circuit current typ. 15 A
Current consumption from U S typ. 130 mA
Auxiliary power current typ. 20 mA + load
Power supply connection feed: 1 x 7/8" plug, 5-pin; downstream connection: 1 x 7/8" socket, 5-pin
Communication
Protocol EtherCAT
Bus interface 2 x M8 socket, 4-pin, A-coded, shielded
Distributed clocks –
Mechanical & Environmental
Operating temperature -25…+60°C
Storage temperature -40…+85°C
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos. IP65/66/67 (conforms to EN 60529)/variable
Approvals & Compliance
Approvals/markings CE, UL (in preparation)
General
Electrical isolation 500 V
Special features 1 output per M12 plug, ∑ 16 A

Compatibility & Cross-References

Model variants, options and firmware revisions can affect fitment. Before ordering the Beckhoff EP2028-0032 ethercat box, share your existing part number or project requirements and our team will cross-reference comparable in-stock Beckhoff units and verify compatibility. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.

Applications

  • Machine and production-line automation with distributed I/O.
  • Conveyors, packaging and material-handling equipment.
  • Process data acquisition and sensor/actuator interfacing.
  • Maintenance, spares and retrofit of existing Beckhoff systems.
  • Control-cabinet and DIN-rail mounted automation builds.

Warranty

  • Availability: EP2028-0032 is stocked for prompt shipment; contact us for current quantity and lead time.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery is about 5-8 business days, express shipping is available, and orders over $500 ship free.

    • Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: Beckhoff part EP2028-0032 is supplied by SHLY-PLC, an independent industrial-automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: What condition is the EP2028-0032 supplied in?

A: Each unit is inspected and functionally checked before sale. Contact us for the current stock condition and quantity.

Q: How quickly can the EP2028-0032 ship?

A: Orders are processed within 2-4 business days after payment confirmation. Standard worldwide delivery is about 5-8 business days, express shipping is available and orders over $500 ship free.

Q: Can you confirm compatibility or a replacement for the EP2028-0032?

A: Yes. Share your existing part number or application and our technical team will verify compatibility and provide cross-references to comparable in-stock models.

EP2028-0032 · Technical reference data · Independently supplied by SHLY-PLC
