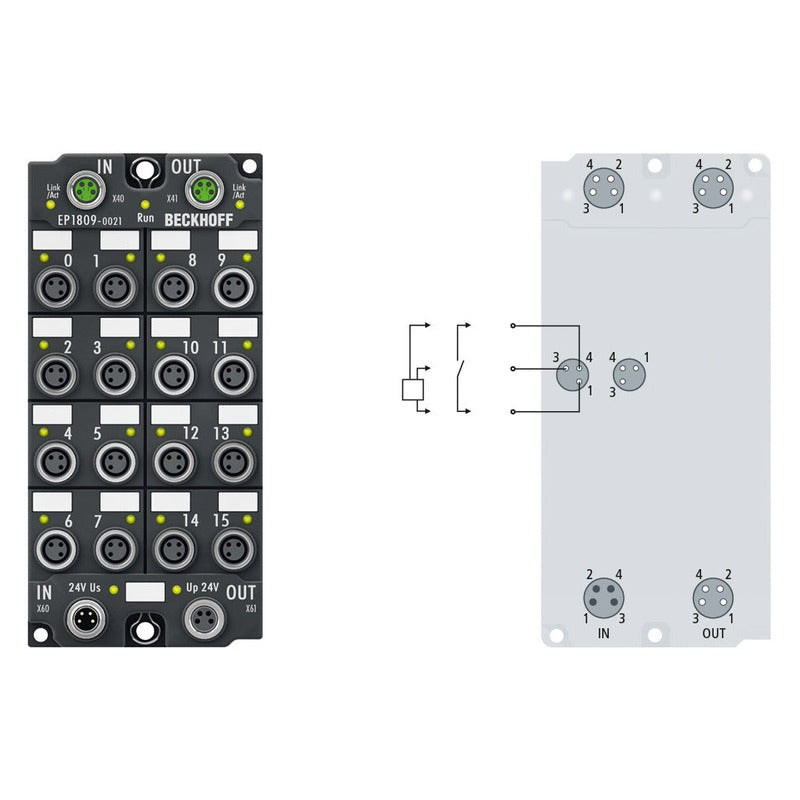

Beckhoff EP1809-0021 PLC Module
Beckhoff EP1809-0021 PLC Module

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Beckhoff

Beckhoff EP1809-0021 PLC Module

SKU: EP1809-0021
(0)
$884.53
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

EP1809-0021 EtherCAT Box | Beckhoff

The Beckhoff EP1809-0021 is an ethercat box (16-channel digital input, 24 V DC, 3 ms, M8). It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.

Features

  • Number of inputs: 16.
  • Signal voltage “0”: -3…+5 V (EN 61131-2, type 3).
  • Protocol: EtherCAT.
  • Weight: approx. 250 g.
  • Approvals/markings: CE, UL.

Specifications

Technical parameters compiled from the manufacturer data sheet and reference documentation.

Technical Specifications
I/O & Signals
Number of inputs 16
Input connections M8 x 1, 3-pin, A-coded
Nominal input voltage 24 V DC (-15%/+20%)
Input filter typ. 3 ms
Signal voltage “0” -3…+5 V (EN 61131-2, type 3)
Signal voltage “1” 11…30 V (EN 61131-2, type 3)
Input current typ. 3 mA (EN 61131-2, type 3)
Sensor supply from control voltage, max. 0.5 A, short-circuit proof in total
Power & Current
Power supply connection feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, A-coded
Current consumption from U S typ. 130 mA
Communication
Protocol EtherCAT
Bus interface 2 x M8 socket, 4-pin, A-coded, shielded
Distributed clocks –
Mechanical & Environmental
Weight approx. 250 g
Operating temperature -25…+60°C
Storage temperature -40…+85°C
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos. IP65/66/67 (conforms to EN 60529)/variable
Approvals & Compliance
Specification EN 61131-2, type 1/3
Approvals/markings CE, UL
General
Electrical isolation 500 V

Compatibility & Cross-References

Model variants, options and firmware revisions can affect fitment. Before ordering the Beckhoff EP1809-0021 ethercat box, share your existing part number or project requirements and our team will cross-reference comparable in-stock Beckhoff units and verify compatibility. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.

Applications

  • Machine and production-line automation with distributed I/O.
  • Conveyors, packaging and material-handling equipment.
  • Process data acquisition and sensor/actuator interfacing.
  • Maintenance, spares and retrofit of existing Beckhoff systems.
  • Control-cabinet and DIN-rail mounted automation builds.

Warranty

  • Availability: EP1809-0021 is stocked for prompt shipment; contact us for current quantity and lead time.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery is about 5-8 business days, express shipping is available, and orders over $500 ship free.

    • Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.

Independent supplier: Beckhoff part EP1809-0021 is supplied by SHLY-PLC, an independent industrial-automation distributor. Brand names and part numbers are used for product identification and remain the property of their respective owners; this listing is not affiliated with, sponsored or endorsed by the manufacturer.

Frequently Asked Questions

Q: What condition is the EP1809-0021 supplied in?

A: Each unit is inspected and functionally checked before sale. Contact us for the current stock condition and quantity.

Q: How quickly can the EP1809-0021 ship?

A: Orders are processed within 2-4 business days after payment confirmation. Standard worldwide delivery is about 5-8 business days, express shipping is available and orders over $500 ship free.

Q: Can you confirm compatibility or a replacement for the EP1809-0021?

A: Yes. Share your existing part number or application and our technical team will verify compatibility and provide cross-references to comparable in-stock models.
