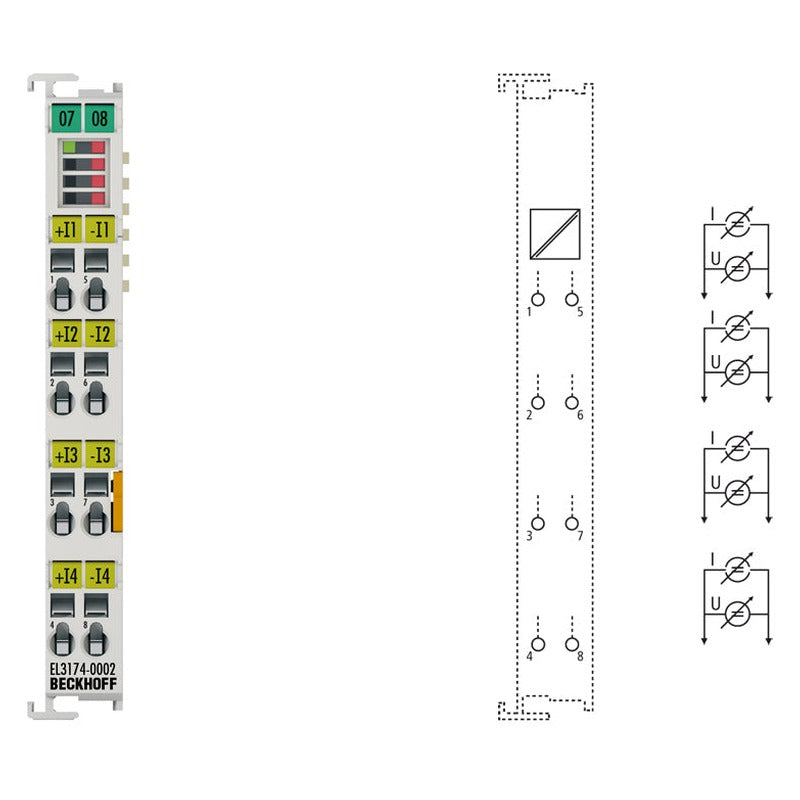

The Beckhoff EL3174-0002 is an ethercat terminal (4-channel analog input, multi-function, ±10 V, ±20 mA, 16 bit, differential, electrically isolated). It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.
Technical parameters compiled from the manufacturer data sheet and reference documentation.
| Technical Specifications | |
| I/O & Signals | |
| Number of inputs | 4 |
| Input filter cut-off frequency | 5 kHz |
| Resolution | 16 bit (incl. sign) |
| Bit width in the process image | inputs: 16 byte |
| Power & Current | |
| Power supply | via the E-bus |
| Current consumption E-bus | typ. 150 mA |
| Current consumption power contacts | – |
| Communication | |
| Distributed clocks | yes |
| Configuration | no address or configuration setting |
| Mechanical & Environmental | |
| Weight | approx. 65 g |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Approvals & Compliance | |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx, cFMus |
| Ex marking | ATEX: II 3G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc |
| General | |
| Oversampling factor | – |
| Distributed clock accuracy | << 1 µs |
| Internal resistance | > 200 kΩ | typ. 85 Ω |
| Conversion time | minimum 150 µs |
| Measuring range, nominal | -10/0…+10 V | -20/0/+4…+20 mA |
| Measuring range, technical | -10.73…+10.73 V | -21.47…+21.47 mA |
| Measurement error/uncertainty | < ±0.2% (at 25°C ±5°C, or else < ±0.3%, relative to full scale value) |
| Electrical isolation | 2500 V functional isolation (test voltage channel/channel and channel/fieldbus, production test) |
| Special features | U/I parameterizable, ExtendedRange, standard and compact process image, activatable FIR/IIR filters |
Model variants, options and firmware revisions can affect fitment. Before ordering the Beckhoff EL3174-0002 ethercat terminal, share your existing part number or project requirements and our team will cross-reference comparable in-stock Beckhoff units and verify compatibility. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.
