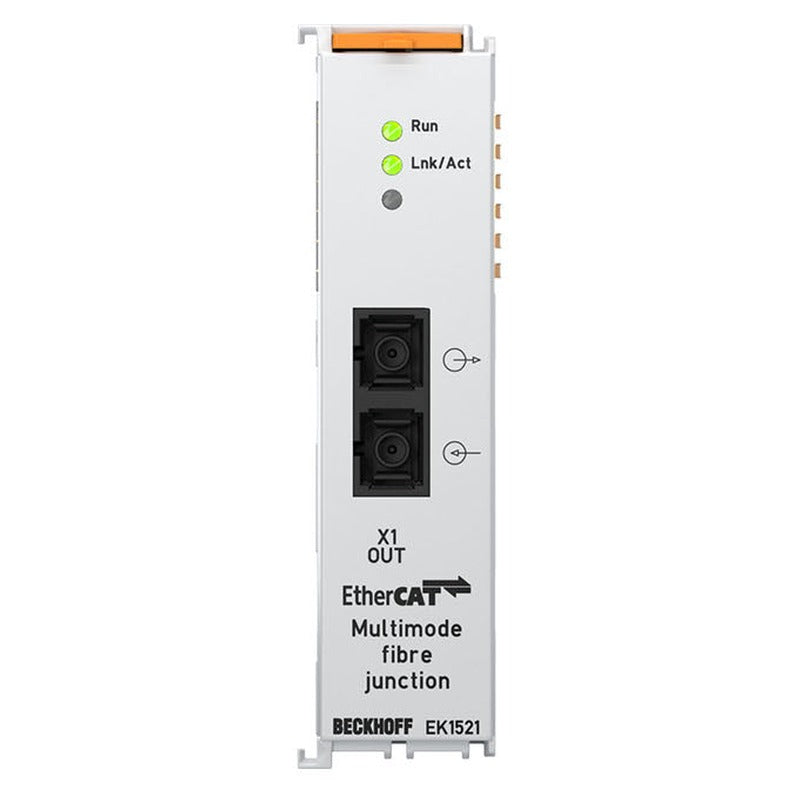

The Beckhoff EK1521 is a 1-port ethercat fiber-optic junction. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.
Technical parameters compiled from the manufacturer data sheet and reference documentation.
| Technical Specifications | |
| I/O & Signals | |
| Number of EtherCAT Terminals | – |
| Type/number of peripheral signals | – |
| Power & Current | |
| Power supply | from E-bus |
| Current consumption 24 V DC | – |
| Current consumption E-bus | typ. 350 mA |
| Communication | |
| Task within EtherCAT system | coupling of EtherCAT junctions via multi-mode glass fiber |
| Transmission medium | multi-mode glass fiber 50/125 µm (MM) |
| Protocol | EtherCAT |
| Transmission rate | 100 Mbit/s |
| Configuration | not required |
| Bus interface | 1 x SC Duplex |
| Mechanical & Environmental | |
| Weight | approx. 65 g |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Protect. rating/installation pos. | IP20/variable |
| Approvals & Compliance | |
| Approvals/markings | CE, CCC, UL, ATEX, IECEx, cFMus |
| Ex marking | ATEX: II 3G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc |
| General | |
| Distance between stations | max. 2000 m (100BASE-FX) |
| Propagation delay | approx. 1 µs |
Model variants, options and firmware revisions can affect fitment. Before ordering the Beckhoff EK1521 1-port ethercat fiber-optic junction, share your existing part number or project requirements and our team will cross-reference comparable in-stock Beckhoff units and verify compatibility. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: Each unit is inspected and functionally checked before sale. Contact us for the current stock condition and quantity.
A: Orders are processed within 2-4 business days after payment confirmation. Standard worldwide delivery is about 5-8 business days, express shipping is available and orders over $500 ship free.
A: Yes. Share your existing part number or application and our technical team will verify compatibility and provide cross-references to comparable in-stock models.
EK1521 · Technical reference data · Independently supplied by SHLY-PLC
