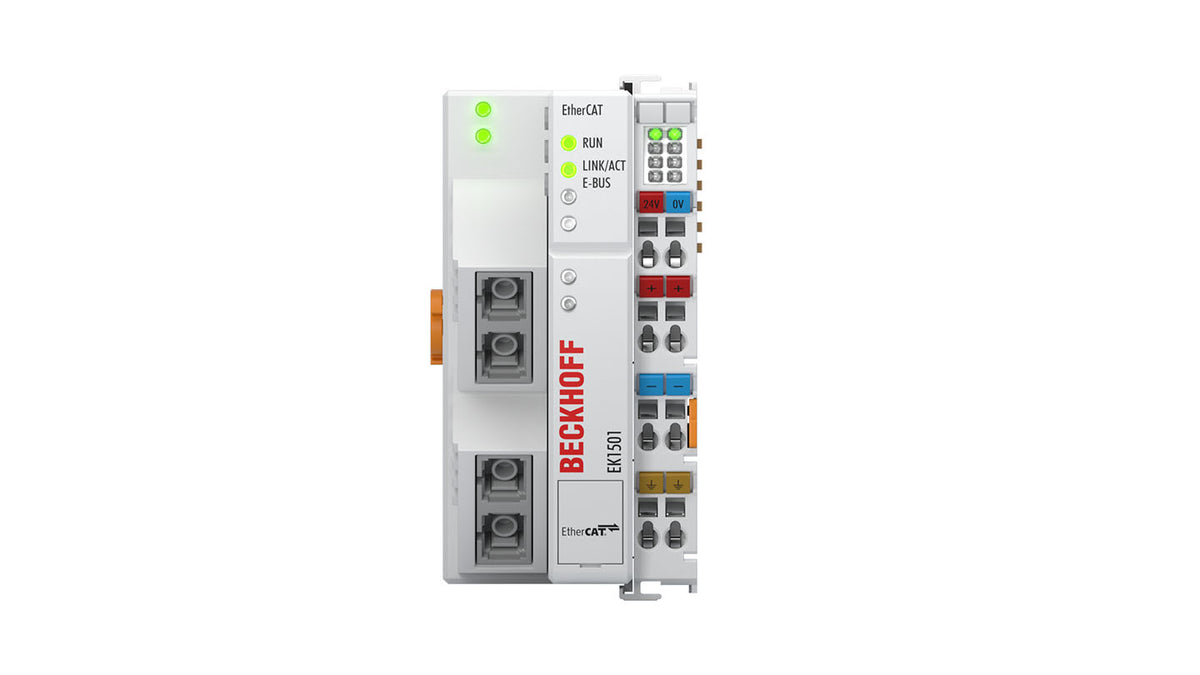

Beckhoff EK1501 EtherCAT Coupler

SKU: EK1501
(0)
$476.52
Available
Condition
Free shipping over $500
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

+86 18017464056

EK1501 EtherCAT Coupler with ID switch | Beckhoff

The Beckhoff EK1501 is an ethercat coupler with id switch (multi-mode fiber optic). It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.

Features

  • Number of EtherCAT Terminals: up to 65,534.
  • Protocol: EtherCAT.
  • Weight: approx. 190 g.
  • Approvals/markings: CE, CCC, UL, ATEX, IECEx, cFMus.
  • Task within EtherCAT system: coupling of EtherCAT Terminals (ELxxxx) to 100BASE-FX EtherCAT networks, with identity verification.

Specifications

Technical parameters compiled from the manufacturer data sheet and reference documentation.

Technical Specifications
I/O & Signals
Number of EtherCAT Terminals up to 65,534
Type/number of peripheral signals max. 4.2 GB addressable I/O points
Number of configurable IDs 4096
Power & Current
Power supply 24 V DC (-15%/+20%)
Current consumption from U S 130 mA + (∑ E-bus current/4)
Current consumption from U P load
Current supply E-bus 2000 mA
Power contacts max. 24 V DC/max. 10 A
Communication
Task within EtherCAT system coupling of EtherCAT Terminals (ELxxxx) to 100BASE-FX EtherCAT networks, with identity verification
Transmission medium multi-mode glass fiber 50/125 µm (MM)
Protocol EtherCAT
Transmission rate 100 Mbit/s
Bus interface 2 x SC Duplex
Mechanical & Environmental
Weight approx. 190 g
Operating temperature -25…+60°C
Storage temperature -40…+85°C
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Relative humidity 95%, no condensation
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
Protect. rating/installation pos. IP20/variable
Approvals & Compliance
Approvals/markings CE, CCC, UL, ATEX, IECEx, cFMus
Ex marking ATEX: II 3G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc
General
Distance between stations max. 2000 m (100BASE-FX)
Propagation delay approx. 1 µs
Electrical isolation 500 V (power contact/supply voltage/Ethernet)

Compatibility & Cross-References

Model variants, options and firmware revisions can affect fitment. Before ordering the Beckhoff EK1501 ethercat coupler with id switch, share your existing part number or project requirements and our team will cross-reference comparable in-stock Beckhoff units and verify compatibility. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.

Applications

  • Central or distributed machine and cell control.
  • Network coupling between field I/O and higher-level control.
  • EtherCAT-based automation and motion systems.
  • Retrofit and replacement of legacy controllers.
  • Small-footprint control-cabinet installations.

Warranty

  • Availability: EK1501 is stocked for prompt shipment; contact us for current quantity and lead time.
  • Inspection & testing: each unit is visually inspected and functionally checked before packing.
  • Delivery: orders are processed within 2-4 business days after payment confirmation; standard worldwide delivery is about 5-8 business days, express shipping is available, and orders over $500 ship free.

    • Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
