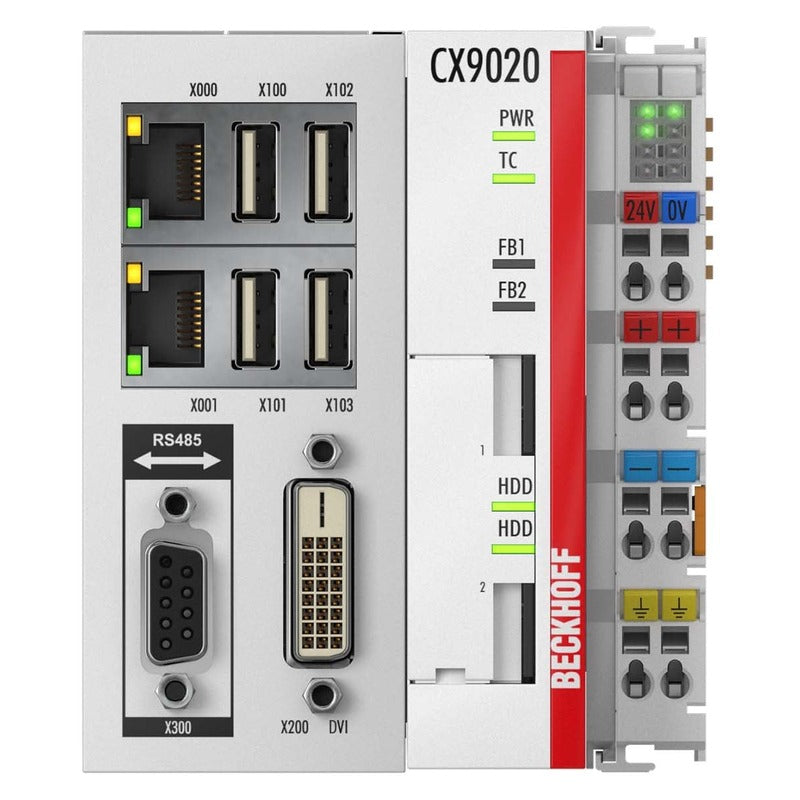

The Beckhoff CX9020-0115 is an embedded pc with arm® cortex®-a8. It is supplied by SHLY-PLC, an independent industrial-automation distributor: every unit is visually inspected and functionally checked before dispatch, held in ready stock and shipped worldwide for maintenance, spares and retrofit use. Share your application or existing part number and our team will confirm fitment and comparable in-stock alternatives.
Technical parameters compiled from the manufacturer data sheet and reference documentation.
| Technical Specifications | |
| I/O & Signals | |
| Number of cores | 1 |
| Power & Current | |
| Power supply | 24 V DC (-15%/+20%) |
| Current supply E-bus/K-bus | 2 A |
| Max. power consumption | 5 W |
| Max. power consumption (with loading UPS) | 9 W |
| Max. power consumption E-bus/K-bus | 10 W (5 V/max. 2 A) |
| Communication | |
| Interfaces | 2 x RJ45 10/100 Mbit/s (internal switch), 1 x DVI-D, 4 x USB 2.0, 1 x optional interface |
| Mechanical & Environmental | |
| Operating system | Windows Embedded Compact 7, English |
| Weight | approx. 590 g |
| Dimensions (W x H x D) | 84 mm x 100 mm x 91 mm |
| Relative humidity | 95%, no condensation |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protection rating | IP20 |
| Approvals & Compliance | |
| Approvals/markings | CE, UL, DNV, with CX2900-0107 ordering option: ATEX, IECEx, cFMus |
| Ex marking | ATEX: II 3G Ex nA IIC T4 Gc II 3D Ex tc IIIC T135°C Dc IECEx: Ex nA IIC T4 Gc Ex tc IIIC T135°C Dc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc |
| General | |
| Processor | Arm ® Cortex ® -A8, 1 GHz |
| Flash memory | 2 x slot for microSD card, 512 MB included (optionally expandable) |
| Main memory | 1 GB DDR3 RAM (not expandable) |
| Cooling | passive |
| Diagnostics LED | 1 x power, 1 x TC status, 2 x flash access, 2 x bus status |
| Clock | internal battery-backed clock for time and date (battery exchangeable) |
| Control software | TwinCAT 2 runtime TwinCAT 3 runtime (XAR) |
| I/O connection | E-bus or K-bus, automatic recognition |
| UPS OCT-capable | no |
| NOVRAM | 128 kB |
| TwinCAT 3 platform level | Economy Plus (30); please see here for an overview of all the TwinCAT 3 platform level |
Model variants, options and firmware revisions can affect fitment. Before ordering the Beckhoff CX9020-0115 embedded pc with arm® cortex®-a8, share your existing part number or project requirements and our team will cross-reference comparable in-stock Beckhoff units and verify compatibility. This listing is provided by an independent industrial-automation distributor; brand names and part numbers are used for identification only.
Warranty: 12-month seller warranty provided by SHLY-PLC. See our Return Policy for coverage and claims.
A: Each unit is inspected and functionally checked before sale. Contact us for the current stock condition and quantity.
A: Orders are processed within 2-4 business days after payment confirmation. Standard worldwide delivery is about 5-8 business days, express shipping is available and orders over $500 ship free.
A: Yes. Share your existing part number or application and our technical team will verify compatibility and provide cross-references to comparable in-stock models.
CX9020-0115 · Technical reference data · Independently supplied by SHLY-PLC
